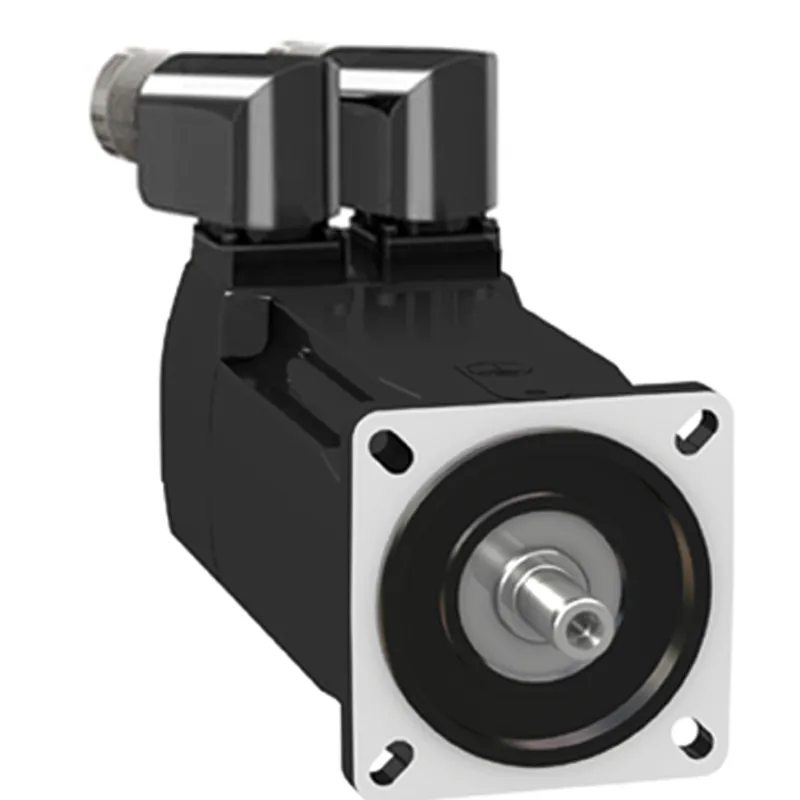

Schneider Electric BMH0702T17A2A
Servo motor BMH - 2.5 Nm - 8000 rpm - keyed shaft - without brake - IP54
- MPN
- BMH0702T17A2A
- EAN
- 3606485194868
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMH0702T17A2A?
Schneider Electric BMH0702T17A2A — servo motor BMH - 2.5 Nm - 8000 rpm - keyed shaft - without brake - IP54 (Lexium 32 & Motors). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Device short name | BMH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 2.5 N.m for LXM32.D30M2 at 10 A, 115 V, single phase; 2.5 N.m for LXM32.D18M2 at 6 A, 230 V, single phase |
| Peak stall torque | 6.4 N.m for LXM32.D30M2 at 10 A, 115 V, single phase; 7.4 N.m for LXM32.D18M2 at 6 A, 230 V, single phase |
| Nominal output power | 600 W for LXM32.D30M2 at 10 A, 115 V, single phase; 900 W for LXM32.D18M2 at 6 A, 230 V, single phase |
| Nominal torque | 2.3 N.m for LXM32.D30M2 at 10 A, 115 V, single phase; 2.1 N.m for LXM32.D18M2 at 6 A, 230 V, single phase |
| Nominal speed | 2500 rpm for LXM32.D30M2 at 10 A, 115 V, single phase; 4000 rpm for LXM32.D18M2 at 6 A, 230 V, single phase |
| Product compatibility | LXM32.D30M2 at 115 V single phase; LXM32.D18M2 at 230 V single phase |
| Shaft end | Keyed |
| IP degree of protection | IP54 standard |
| Speed feedback resolution | 32768 points/turn x 4096 turns |
| Holding brake | Without |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
Complementary
| Range compatibility | Lexium 32 |
| [Us] rated supply voltage | 240 V |
| Network number of phases | Three phase |
| Continuous stall current | 5.38 A |
| Continuous power | 1.51 W |
| Maximum current Irms | 17.64 A for LXM32.D30M2; 17.5 A for LXM32.D18M2 |
| Maximum permanent current | 17.71 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| Key width | 18 mm |
| Feedback type | Multiturn SinCos Hiperface |
| Motor flange size | 70 mm |
| Number of motor stacks | 2 |
| Torque constant | 0.46 N.m/A at 120 °C |
| Back emf constant | 29.6 V/krpm at 120 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 1.13 kg.cm² |
| Stator resistance | 1.15 Ohm at 20 °C |
| Stator inductance | 1.76 mH at 20 °C |
| Stator electrical time constant | 3.1 ms at 20 °C |
| Maximum radial force Fr | 710 N at 1000 rpm; 560 N at 2000 rpm; 490 N at 3000 rpm; 450 N at 4000 rpm; 410 N at 5000 rpm; 390 N at 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 154 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 2.3 kg |
| Sizing reference | BMH0702T |
| Network number of phases | 3 |
| Accuracy error [angular] | 4.8 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 17.64 A |
| Inertia | 0.0 kg.cm² of brake; 1.129 kg.cm² of motor |
