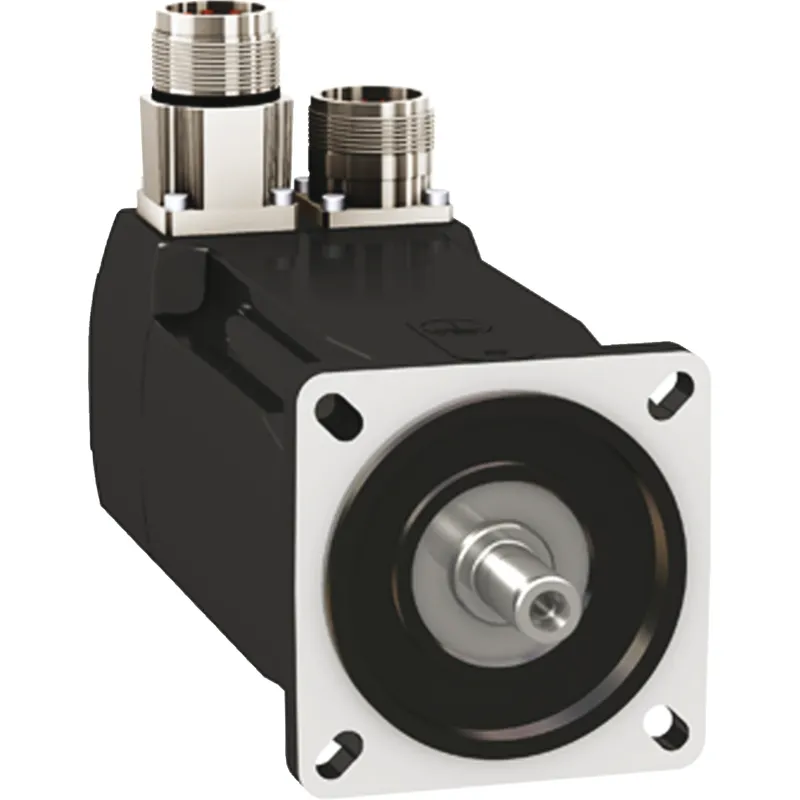

BMH0702T12A1AServo motor BMH, Lexium 32, 2.5Nm, 8000rpm, keyed shaft, without brake, IP54, 128 multiturn encoder, straight
Schneider Electric BMH0702T16A1A
Servo motor BMH - 2.5 Nm - 8000 rpm - keyed shaft - without brake - IP54
- MPN
- BMH0702T16A1A
- EAN
- 3606485194639
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMH0702T16A1A?
"This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors." "This is a servo motor that features a maximum mechanical speed of 8000RPM, a keyed shaft end, without holding brake." "It is equipped with a single-turn encoder type SinCos Hiperface." "It has two straight connectors dedicated to power and encoder cables." "It has a rated supply voltage of 240V, a continuous stall current of 5.38A, a continuous power of 1.51W, and a continuous stall torque of 2.5Nm." "Its degree of protection is IP54 rated." "The motor flange size is 70mm, fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 82mm. It weighs 2.3kg." "This servo motor is designed for Lexium 32 drives." "It is certified by UL." "It is compatible with LXM32AD30M2, LXM32SD30M2, LXM32MD30M2, LXM32CD30M2, LXM32AD18M2, LXM32SD18M2, LXM32MD18M2, and LXM32CD18M2 servo drives." "its mounting support is an international standard flange." "The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price." "Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Device short name | BMH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 2.5 N.m for LXM32.D30M2 at 10 A, 115 V, single phase; 2.5 N.m for LXM32.D18M2 at 6 A, 230 V, single phase |
| Peak stall torque | 6.4 N.m for LXM32.D30M2 at 10 A, 115 V, single phase; 7.4 N.m for LXM32.D18M2 at 6 A, 230 V, single phase |
| Nominal output power | 600 W for LXM32.D30M2 at 10 A, 115 V, single phase; 900 W for LXM32.D18M2 at 6 A, 230 V, single phase |
| Nominal torque | 2.3 N.m for LXM32.D30M2 at 10 A, 115 V, single phase; 2.1 N.m for LXM32.D18M2 at 6 A, 230 V, single phase |
| Nominal speed | 2500 rpm for LXM32.D30M2 at 10 A, 115 V, single phase; 4000 rpm for LXM32.D18M2 at 6 A, 230 V, single phase |
| Product compatibility | LXM32.D30M2 at 115 V single phase; LXM32.D18M2 at 230 V single phase |
| Shaft end | Keyed |
| IP degree of protection | IP54 standard |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | Without |
| Mounting support | International standard flange |
| Electrical connection | Straight connectors |
Complementary
| Range compatibility | Lexium 32 |
| [Us] rated supply voltage | 240 V |
| Network number of phases | Three phase |
| Continuous stall current | 5.38 A |
| Continuous power | 1.51 W |
| Maximum current Irms | 17.64 A for LXM32.D30M2; 17.5 A for LXM32.D18M2 |
| Maximum permanent current | 17.71 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| Key width | 18 mm |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 70 mm |
| Number of motor stacks | 2 |
| Torque constant | 0.46 N.m/A at 120 °C |
| Back emf constant | 29.6 V/krpm at 120 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 1.13 kg.cm² |
| Stator resistance | 1.15 Ohm at 20 °C |
| Stator inductance | 1.76 mH at 20 °C |
| Stator electrical time constant | 3.1 ms at 20 °C |
| Maximum radial force Fr | 710 N at 1000 rpm; 560 N at 2000 rpm; 490 N at 3000 rpm; 450 N at 4000 rpm; 410 N at 5000 rpm; 390 N at 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 154 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 2.3 kg |
| Sizing reference | BMH0702T |
| Network number of phases | 3 |
| Accuracy error [angular] | 4.8 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 17.64 A |
| Inertia | 0.0 kg.cm² of brake; 1.129 kg.cm² of motor |
