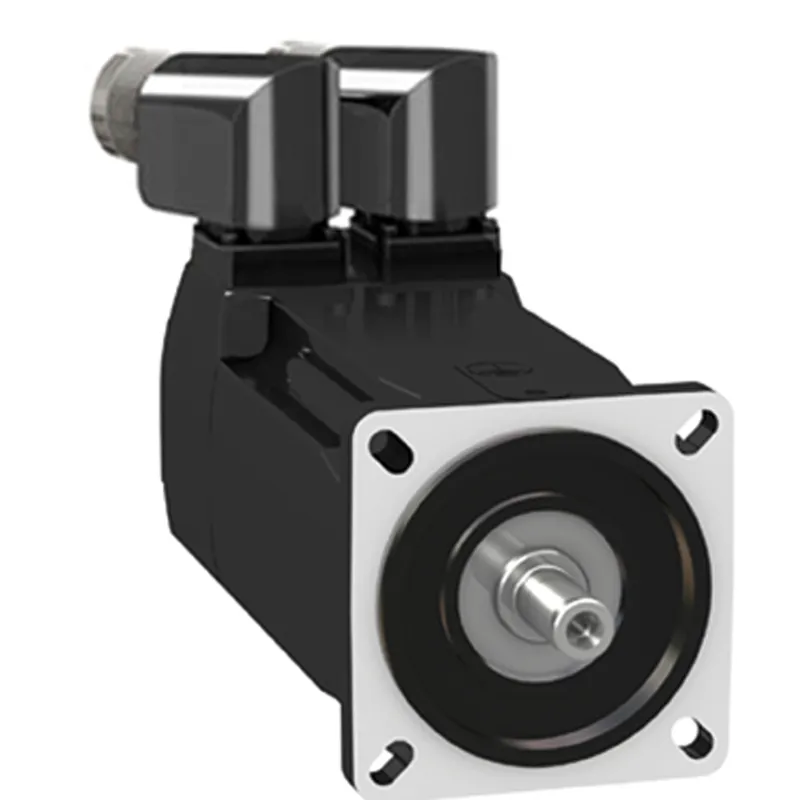

BMH0701T12A2AServo motor BMH - 1.4 Nm - 8000 rpm - keyed shaft - without brake - IP54
Schneider Electric BMH0701T16A2A
Servo motor BMH - 1.4 Nm - 8000 rpm - keyed shaft - without brake - IP54
- MPN
- BMH0701T16A2A
- EAN
- 3606485194233
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original BMH0701T16A2A (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMH0701T16A2A?
This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This synchronous motor has a maximum mechanical speed of 8000RPM, a parallel key, an IP54-rated shaft, an IP65-rated housing, and no holding brake. It is equipped with an absolute single-turn encoder, 16 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. Its output power is 240V, its continuous stall current is 2.85A, and its continuous power is 1.05W. It is furnished with two rotatable right-angled connectors, 28mm in diameter for the motor connector and 26mm for the encoder connector. Its flange is 70x70mm, and it is a 1-stack length, and it weighs 1.6kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives type LXM32nU90M2 and LXM32nD18M2, and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 70mm flange mount with a natural convection cooling system. Lexium 32 is a range that pairs drives and motors to deliver the right power, performance, and functions in motion control solutions. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Device short name | BMH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 1.4 N.m for LXM32.U90M2 at 3 A, 230 V, single phase; 1.4 N.m for LXM32.D18M2 at 6 A, 115 V, single phase |
| Peak stall torque | 4 N.m for LXM32.U90M2 at 3 A, 230 V, single phase; 4.2 N.m for LXM32.D18M2 at 6 A, 115 V, single phase |
| Nominal output power | 450 W for LXM32.U90M2 at 3 A, 230 V, single phase; 350 W for LXM32.D18M2 at 6 A, 115 V, single phase |
| Nominal torque | 1.1 N.m for LXM32.U90M2 at 3 A, 230 V, single phase; 1.35 N.m for LXM32.D18M2 at 6 A, 115 V, single phase |
| Nominal speed | 4000 rpm for LXM32.U90M2 at 3 A, 230 V, single phase; 2500 rpm for LXM32.D18M2 at 6 A, 115 V, single phase |
| Product compatibility | LXM32.D18M2 at 115 V single phase; LXM32.U90M2 at 230 V single phase |
| Shaft end | Keyed |
| IP degree of protection | IP54 standard |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | Without |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
Complementary
| Range compatibility | Lexium 32 |
| [Us] rated supply voltage | 240 V |
| Network number of phases | Three phase |
| Continuous stall current | 2.85 A |
| Continuous power | 1.05 W |
| Maximum current Irms | 9.56 A for LXM32.D18M2; 9.6 A for LXM32.U90M2 |
| Maximum permanent current | 9.56 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| Key width | 18 mm |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 70 mm |
| Number of motor stacks | 1 |
| Torque constant | 0.49 N.m/A at 120 °C |
| Back emf constant | 31.17 V/krpm at 120 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 0.59 kg.cm² |
| Stator resistance | 3.2 Ohm at 20 °C |
| Stator inductance | 4.045 mH at 20 °C |
| Stator electrical time constant | 2.8 ms at 20 °C |
| Maximum radial force Fr | 660 N at 1000 rpm; 520 N at 2000 rpm; 460 N at 3000 rpm; 410 N at 4000 rpm; 380 N at 5000 rpm; 360 N at 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 122 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 1.6 kg |
| Sizing reference | BMH0701T |
| Network number of phases | 3 |
| Accuracy error [angular] | 4.8 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 9.56 A |
| Inertia | 0.0 kg.cm² of brake; 0.585 kg.cm² of motor |
