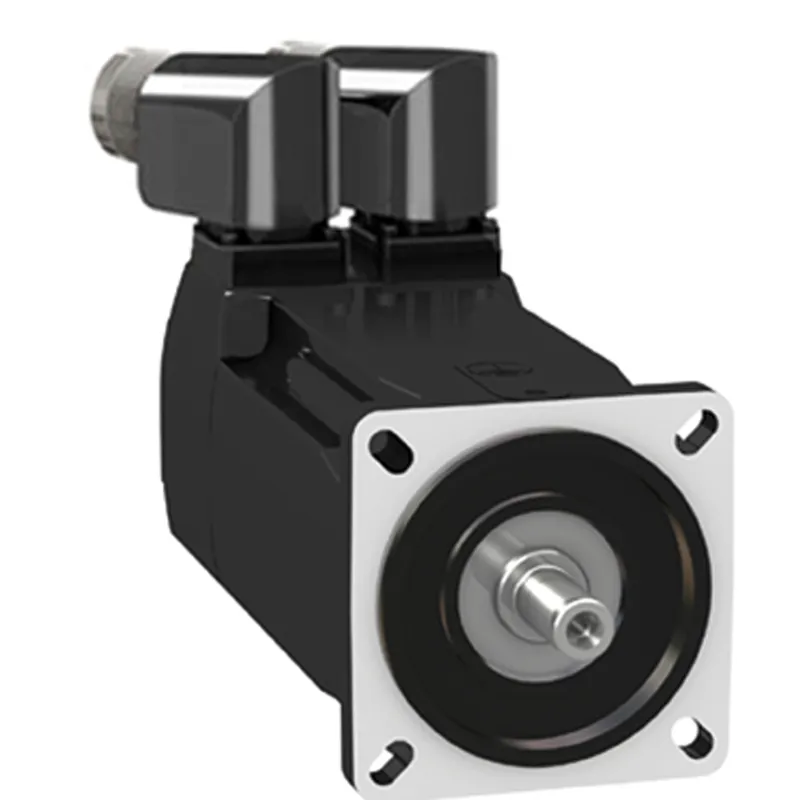

Schneider Electric BMH0701T07F2A

What is the Schneider Electric BMH0701T07F2A?

"This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors." "This is a servo motor that features a maximum mechanical speed of 8000RPM, an untapped shaft end, with a holding brake." "It is equipped with a multi-turn encoder type SinCos Hiperface." "It has two rotatable right-angle connectors dedicated to power and encoder cables." "It has a rated supply voltage of 240V, a continuous stall current of 2.85A, a continuous power of 1.05W, and a continuous stall torque of 1.4Nm." "Its degree of protection is IP54 rated." "The motor flange size is 70mm, fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 82mm. It weighs 2.6kg." "This servo motor is designed for Lexium 32 drives." "It is certified by UL." "It is compatible with LXM32AU90M2, LXM32SU90M2, LXM32MU90M2, LXM32CU90M2, LXM32AD18M2, LXM32SD18M2, LXM32MD18M2, and LXM32CD18M2 servo drives." "its mounting support is an international standard flange." "The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price." "Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
