Schneider Electric
BMH0701P31F1AServo motor BMH - 1.2 Nm - 8000 rpm - keyed shaft - with brake - IP65/IP67

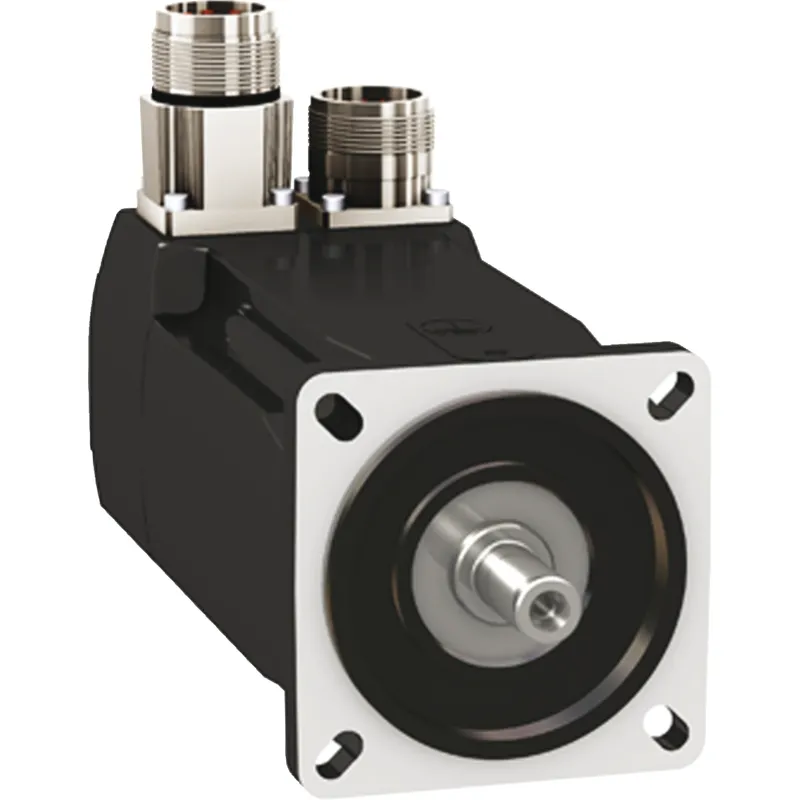

Schneider Electric BMH0701P32F1A
Servo motor BMH - 1.2 Nm - 8000 rpm - keyed shaft - with brake - IP65/IP67
- MPN
- BMH0701P32F1A
- EAN
- 3606485193120
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original BMH0701P32F1A (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMH0701P32F1A?
Schneider Electric BMH0701P32F1A — servo motor BMH - 1.2 Nm - 8000 rpm - keyed shaft - with brake - IP65/IP67 (Lexium 32 & Motors). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Device short name | BMH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 1.2 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.2 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.4 N.m for LXM32.D12N4 at 3 A, 400 V, three phase; 1.4 N.m for LXM32.D12N4 at 3 A, 480 V, three phase |
| Peak stall torque | 4.2 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 4.2 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 4.2 N.m for LXM32.D12N4 at 3 A, 400 V, three phase; 4.2 N.m for LXM32.D12N4 at 3 A, 480 V, three phase |
| Nominal output power | 350 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 350 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 700 W for LXM32.D12N4 at 3 A, 400 V, three phase; 700 W for LXM32.D12N4 at 3 A, 480 V, three phase |
| Nominal torque | 1.1 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.1 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.3 N.m for LXM32.D12N4 at 3 A, 400 V, three phase; 1.3 N.m for LXM32.D12N4 at 3 A, 480 V, three phase |
| Nominal speed | 3000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 3000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 5000 rpm for LXM32.D12N4 at 3 A, 400 V, three phase; 5000 rpm for LXM32.D12N4 at 3 A, 480 V, three phase |
| Product compatibility | LXM32.U60N4 at 400...480 V three phase; LXM32.D12N4 at 400...480 V three phase |
| Shaft end | Keyed |
| IP degree of protection | IP65 standard; IP67 with IP67 kit |
| Speed feedback resolution | 131072 points/turn x 4096 turns |
| Holding brake | With |
| Mounting support | International standard flange |
| Electrical connection | Straight connectors |
Complementary
| Range compatibility | Lexium 32 |
| [Us] rated supply voltage | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 1.78 A |
| Continuous power | 1.05 W |
| Maximum current Irms | 6 A for LXM32.U60N4; 6 A for LXM32.D12N4 |
| Maximum permanent current | 5.97 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| Key width | 18 mm |
| Feedback type | Multiturn SinCos Hiperface |
| Holding torque | 3 N.m holding brake |
| Motor flange size | 70 mm |
| Number of motor stacks | 1 |
| Torque constant | 0.79 N.m/A at 120 °C |
| Back emf constant | 50.72 V/krpm at 120 °C |
| Number of motor poles | 10 |
| Rotor inertia | 0.7 kg.cm² |
| Stator resistance | 8.3 Ohm at 20 °C |
| Stator inductance | 23.4 mH at 20 °C |
| Stator electrical time constant | 2.8 ms at 20 °C |
| Maximum radial force Fr | 660 N at 1000 rpm; 520 N at 2000 rpm; 460 N at 3000 rpm; 410 N at 4000 rpm; 380 N at 5000 rpm; 360 N at 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 7 W |
| Type of cooling | Natural convection |
| Length | 161 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 2.6 kg |
| Sizing reference | BMH0701P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BMH0701P32F1A: frequently asked questions
Can I still buy the BMH0701P32F1A now that it is discontinued?
Yes. Schneider Electric has discontinued the BMH0701P32F1A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can BMH0701P32F1A be shipped?
BMH0701P32F1A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMH0701P32F1A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMH0701P32F1A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMH0701P32F1A, subject to availability and destination.
