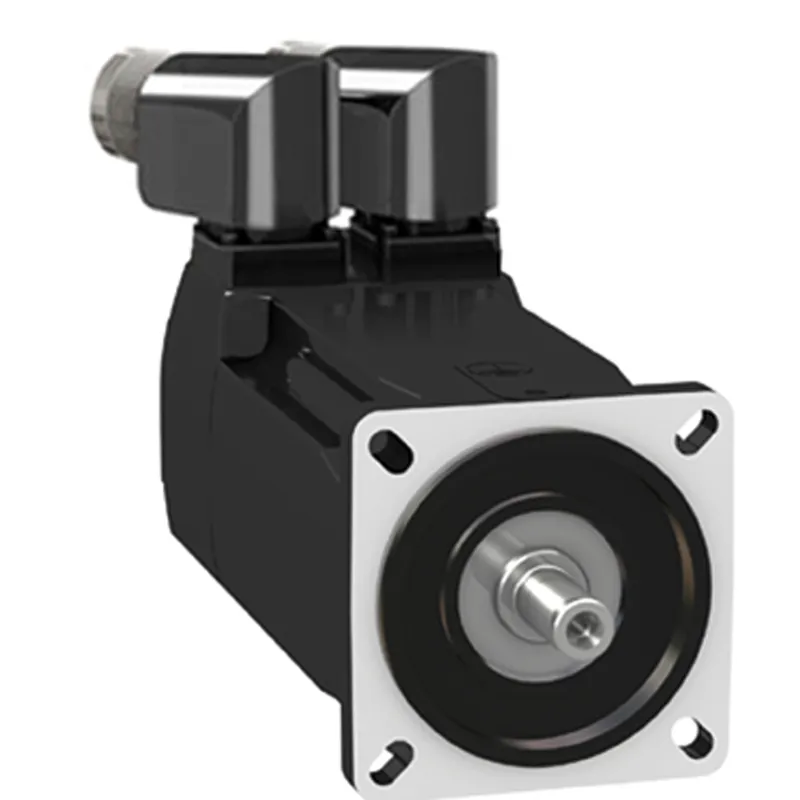

BMH0701P11F2AServo motor BMH - 1.2 Nm - 8000 rpm - keyed shaft - with brake - IP54
Schneider Electric BMH0701P12F2A
Servo motor BMH - 1.2 Nm - 8000 rpm - keyed shaft - with brake - IP54
- MPN
- BMH0701P12F2A
- EAN
- 3606485193182
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMH0701P12F2A?
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 8000RPM and keyed shaft end with holding brake. It is an equipped with a multi-turn SinCos Hiperface® feedback with 1,31,072 points/turn x 4096 turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 1.78A and a continuous power of 1.05W. The shaft dimensions are 11mm (diameter) x 23mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 161mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 2.6kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.U60N4 at 400V to 480V three phase and LXM32.D12N4 at 400V to 480V three phase. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Device short name | BMH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 1.2 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.2 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.4 N.m for LXM32.D12N4 at 3 A, 400 V, three phase; 1.4 N.m for LXM32.D12N4 at 3 A, 480 V, three phase |
| Peak stall torque | 4.2 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 4.2 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 4.2 N.m for LXM32.D12N4 at 3 A, 400 V, three phase; 4.2 N.m for LXM32.D12N4 at 3 A, 480 V, three phase |
| Nominal output power | 350 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 350 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 700 W for LXM32.D12N4 at 3 A, 400 V, three phase; 700 W for LXM32.D12N4 at 3 A, 480 V, three phase |
| Nominal torque | 1.1 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.1 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.3 N.m for LXM32.D12N4 at 3 A, 400 V, three phase; 1.3 N.m for LXM32.D12N4 at 3 A, 480 V, three phase |
| Nominal speed | 3000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 3000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 5000 rpm for LXM32.D12N4 at 3 A, 400 V, three phase; 5000 rpm for LXM32.D12N4 at 3 A, 480 V, three phase |
| Product compatibility | LXM32.U60N4 at 400...480 V three phase; LXM32.D12N4 at 400...480 V three phase |
| Shaft end | Keyed |
| IP degree of protection | IP54 standard |
| Speed feedback resolution | 131072 points/turn x 4096 turns |
| Holding brake | With |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
Complementary
| Range compatibility | Lexium 32 |
| [Us] rated supply voltage | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 1.78 A |
| Continuous power | 1.05 W |
| Maximum current Irms | 5.97 A for LXM32.U60N4; 6 A for LXM32.D12N4 |
| Maximum permanent current | 5.97 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| Key width | 18 mm |
| Feedback type | Multiturn SinCos Hiperface |
| Holding torque | 3 N.m holding brake |
| Motor flange size | 70 mm |
| Number of motor stacks | 1 |
| Torque constant | 0.79 N.m/A at 120 °C |
| Back emf constant | 50.72 V/krpm at 120 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 0.7 kg.cm² |
| Stator resistance | 8.3 Ohm at 20 °C |
| Stator inductance | 10.35 mH at 20 °C |
| Stator electrical time constant | 2.8 ms at 20 °C |
| Maximum radial force Fr | 660 N at 1000 rpm; 520 N at 2000 rpm; 460 N at 3000 rpm; 410 N at 4000 rpm; 380 N at 5000 rpm; 360 N at 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 7 W |
| Type of cooling | Natural convection |
| Length | 161 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 2.6 kg |
| Sizing reference | BMH0701P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 5.97 A |
| Inertia | 0.11 kg.cm² of brake; 0.585 kg.cm² of motor |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BMH0701P12F2A: frequently asked questions
When can BMH0701P12F2A be shipped?
BMH0701P12F2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMH0701P12F2A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMH0701P12F2A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMH0701P12F2A, subject to availability and destination.
