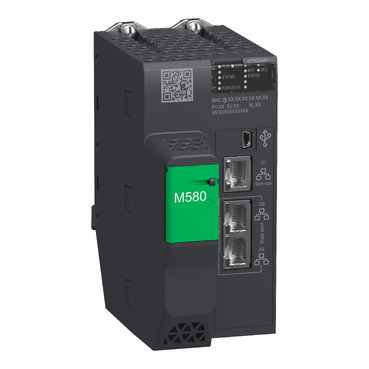

Schneider Electric BMEP582040H
Standalone processor, Modicon M580, 8MB, 61 Ethernet devices, 8 remote IO racks of X80, for severe environment
- MPN
- BMEP582040H
- EAN
- 3595864174495
- Category
- Modicon M580
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMEP582040H?
This standalone processor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This product offers a maximum of 4 local rack and 8 remote rack configuration with up to 10240 discrete I/O channels and 2560 analog I/O channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. This controller can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. It is equipped with 1 Ethernet port for service, 2 Ethernet ports for ring remote I/O network (Remote IO racks only) and 1 USB type mini B for programming console. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory and expandable flash of 4GB for data storage. This product is IP20 rated and offers 780710 hours of MTBF. The new grey design is applied for this module with a weight of 0.849kg and its new dimensions 64x130x135mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product complies with CE, UL, CSA, RCM, EAC, UKCA, and ATEX/IECEx zone 2/22 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. The CPU must be installed in the rack slots marked 00 and 01, with 2 screws on top of the CPU to maintain the module on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.
Specifications
Specifications
| Range of product | Modicon M580 |
| Product or component type | Processor module |
| Product specific application | For severe environments |
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 2048 I/O |
| Local I/O processor capacity (analog) | 512 I/O |
| Number of application specific channel (local rack) | 72 |
| Application specific I/O | Counter, HART, SSI encoder, Accurate time stamping, Motion control, Serial link |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, USB type mini B |
| Number of remote I/O station | 8 - 2 rack(s) per remote drop |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 2 Ethernet communication module, 16 AS-Interface module |
| Communication service | RIO scanner, DIO scanner |
| Memory description | Expandable flash, 4 GB for data storage, Integrated RAM, 10 kB for system memory, Integrated RAM, 8 MB for program, Integrated RAM, 768 kB for data |
| Application structure | 1 periodic fast task, 64 event tasks, 1 cyclic/periodic master task, 2 auxiliary tasks |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean |
| Current consumption | 270 mA at 24 V DC |
| MTBF reliability | 775000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN), 1 LED (red) processor or system fault (ERR), 1 LED (red) I/O module fault (I/O), 1 LED (green) download in progress (DL), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status) |
| Net weight | 0.849 kg |
Packaging
| Package 1 | 1 PCE, 25.500 cm × 18.000 cm × 9.000 cm (L × W × H), 881.000 g |
| Package 2 | 6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.700 kg |
