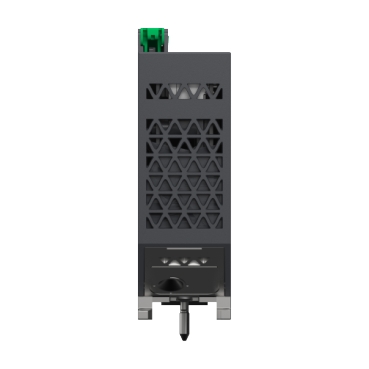

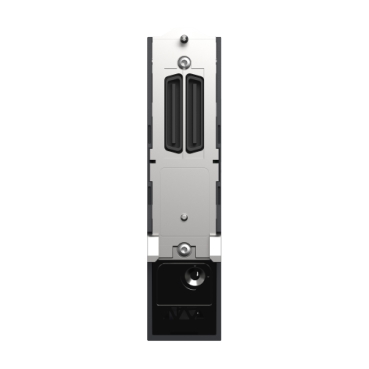

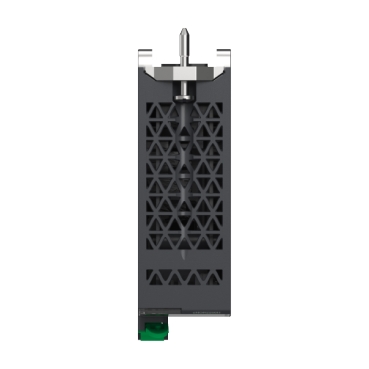

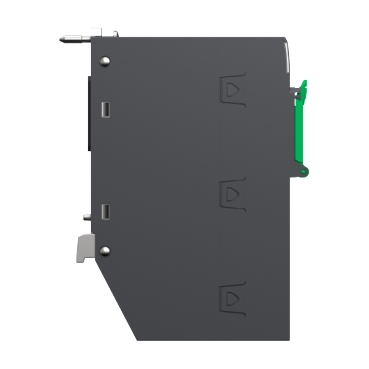

Schneider Electric BMENOR2200H
Communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments
- MPN
- BMENOR2200H
- EAN
- 3606489744236
- Category
- Modicon M580
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMENOR2200H?
This communication module is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module enables M580 platform to use RTU protocol exchange with RTU stations. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. This module can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. It supports up to 64 RTU devices when module acts as Client/Master. It complies with M580 Hot Standby system. The module dimensions are 32x86x131mm, and it weighs 0.38kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It complies with RTU protocols including DNP3 (NET & Serial), IEC60870-5-101/104. It must be installed on a BMEXBPxxx - Ethernet + X-bus rack The module is delivered in 1 packing unit. It occupies one ethernet slot on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.
Specifications
Specifications
| Range of product | Modicon M580 |
| Product or component type | Communication module |
| Device application | Remote monitoring and telecontrol application |
| Product compatibility | Modicon M580 standalone CPU (BMEP58…..), Modicon M580 Redundant CPU (BMEH58…..), Modicon M580 safety CPU (non interfering type 1) (BMEP582…..), Modicon M580 safety Redundant CPU (non interfering type 1) (BMEH582…..), Modicon X80 Rack with Ethernet backplane (BMEXBP…..) |
| Mounting location | Main rack |
| Backplane slot location | Ethernet + X-bus Slot |
| Slot occupied by module | 1 |
| Maximum number of modules per rack | 4 |
| Supply | Internal power supply via rack |
| Integrated connection type | 1 RS232, connector type: RJ45, transmission rate: 115200 bit/s, transmission mode: 8 wires, 1 RS485, connector type: RJ45, transmission rate: 115200 bit/s, transmission mode: 1 twisted shielded pair, 2 Ethernet, connector type: RJ45, transmission rate: 10/100/1000 Mbit/s, transmission mode: double shielded twisted pair |
| Memory description | Support flash SD memory card (BMXRMS004GPF) 4 GB |
| Communication service | DNP3 NET server SAv2/SAv5 with pre-shared key, DNP3 NET client SAv2/SAv5 with pre-shared key, IEC 60870-5-101 server/client, IEC 60870-5-104 server/client, Modbus TCP messaging, Web server (HTTPS), HTML5, FDR client, SNTP client, SNMP V1/V3 agent, Time stamped events management, Automatic events backup on power loss, Transparent events routing from remote servers to SCADA, Data logging service, IEC60870-5-104 channel redundancy, DNP3 NET multiple session, Crashlog, NAT router, IP forwarding |
| Cybersecurity | Role-based access control, System hardening, Secure communication (HTTPS), Achilles certified, Syslog protocol support, Transport layer security for RTU protocols, SNMP logging, Certificate based authentication, NAT, Network physical isolation |
| Current consumption | 137 mA at 24 V DC |
| Local signalling | 1 LED (green/red) for cyber security (SEC), 1 LED (yellow) for serial communication (SER COM), 1 LED (red) for download in progress (DL), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for memory card fault (CARD ERR), 1 LED (green) for processor running (RUN), 1 LED (green/red) for status of control ethernet (NS), 1 LED (green) for RTU connection status (RTUCNX), 1 LED (green/red) for status of backplane ethernet (BS) |
| Width | 32 mm |
| Height | 131 mm |
| Length | 86 mm |
| Net weight | 0.41 kg |
| IP degree of protection | IP20 |
| Protective treatment | Conformal coating |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m, 2000 m...5000 m with derating factor |
| vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Marking | CE |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22, UKCA type 1, UKCA |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2 |
Packaging
| Package 1 | 1 PCE, 26.000 cm × 17.800 cm × 5.300 cm (L × W × H), 564.000 g |
| Package 2 | 8 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.983 kg |
