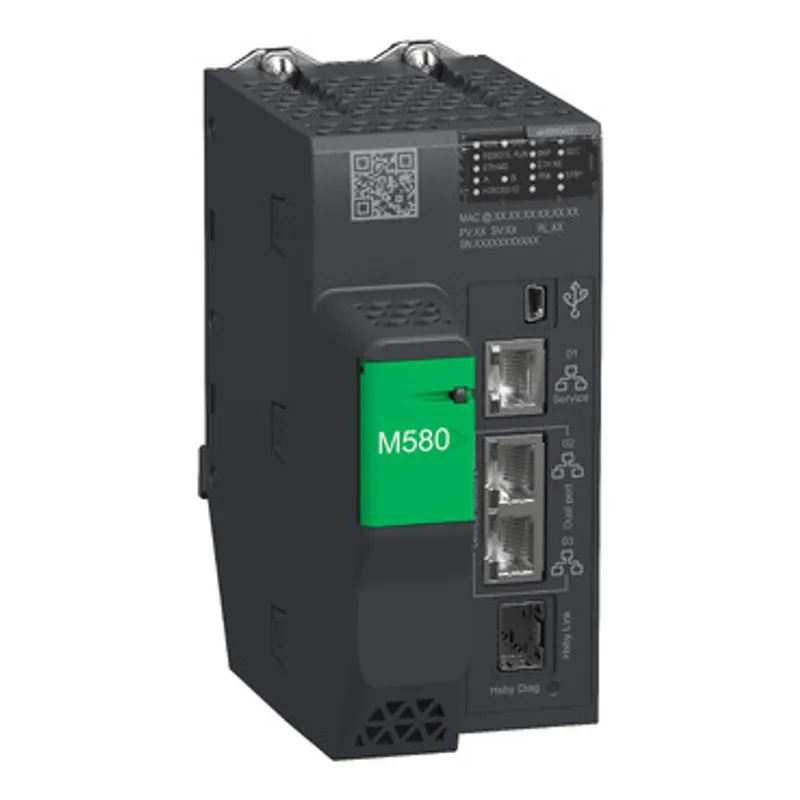

Schneider Electric BMEH586040C
Redundant processor, Modicon M580, 64MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum, conformal coating
- MPN
- BMEH586040C
- EAN
- 3606485440026
- Category
- Modicon M580
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric BMEH586040C?
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This redundant processor module offers a maximum of 1 rack configuration. It is a processor module with a current consumption of 295mA at 24V DC. It supports 64 distributed equipment. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 31 - 2 racks per remote drop for I/O station. It has an integrated RAM of 64MB for program and data, integrated RAM of 10kb for system memory and an expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by UL, ATEX, IEC-Ex, CE, Merchant Navy, CSA, RCM and EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Specifications
Specifications
| Range of product | Modicon M580 |
| Product or component type | Redundant processor module |
| Impregnation material | Conformal coated |
| Number of racks | 1 |
| Application specific I/O | Serial link, Accurate time stamping, SSI encoder, Motion control, HART, Counter |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, USB type mini B, 1 Ethernet for HSBY port |
| Number of remote I/O station | 31 - 2 rack(s) per X80 and Quantum drops |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 6 Ethernet communication module, 16 AS-Interface module |
| Communication service | RIO scanner, DIO scanner |
| Memory description | Expandable flash, 4 GB for data storage, Integrated RAM, 10 kB for system memory, Integrated RAM, 64 MB for program and data, Integrated RAM, 4096 kB for HSBY data |
| Application structure | 1 periodic fast task, 1 cyclic/periodic master task |
| Number of instructions per ms | 40 Kinst/ms 100 % Boolean, 50 Kinst/ms 65 % Boolean + 35 % fixed arithmetic |
| Current consumption | 365 mA at 24 V DC |
| MTBF reliability | 650000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN), 1 LED (red) processor or system fault (ERR), 1 LED (red) I/O module fault (I/O), 1 LED (green) download in progress (DL), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green) peer processor running (REMOTE RUN), 1 LED (green) processor ID set to A (A), 1 LED (green) processor ID set to B (B), 1 LED (green) processor acting as Primary (PRIM), 1 LED (green) processor acting as Standby (STBY), 1 LED (green) I/O values overrided by user (FORCED IO), 1 LED (green) Hot standby link status (Hsby Diag) |
| Net weight | 0.849 kg |
Packaging
| Package 1 | 1 PCE, 25.200 cm × 17.800 cm × 8.800 cm (L × W × H), 891.000 g |
| Package 2 | 6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.878 kg |
