Servo motor BCH, 130mm, 1500W, no oil seal, w key, brake, straight con

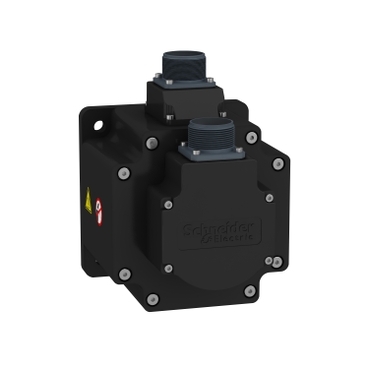

Servo motor BCH; Lexium 28; 130mm; 1500W; 10kg.cm²; with oil seal; with key; brake; straight connection
Discontinued by Schneider Electric — we can still source the original BCH2MM1523CF6C (new, used or refurbished, subject to availability). Request a quote below.
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 3000RPM and keyed shaft end with holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 6.18A and a continuous power of 1500W. The shaft dimensions are 22mm (diameter) x 55mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP65 rated product. The length of this product is 202mm and the centering collar dimensions are 8mm (depth) x 110mm (diameter) with 145mm mounting hole. It weighs 8.8kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 1.5kW 220V single phase. It supports 130mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
| Range compatibility | Lexium 28 |
| Device short name | BCH2 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 3000 rpm |
| [Us] rated supply voltage | 220 V |
| Network number of phases | 1 |
| Continuous stall current | 6.18 A |
| Continuous stall torque | 7.16 N.m for LXM26D at 7 A, 220 V, single phase, 7.16 N.m for LXM26D at 7 A, 220 V, three phase, 7.16 N.m for LXM28 at 7 A, 220 V, single phase, 7.16 N.m for LXM28 at 7 A, 220 V, three phase |
| Continuous power | 1500 W |
| Peak stall torque | 21.48 N.m for LXM26D at 7 A, 220 V, single phase, 21.48 N.m for LXM26D at 7 A, 220 V, three phase, 21.48 N.m for LXM28... at 7 A, 220 V, single phase, 21.48 N.m for LXM28... at 7 A, 220 V, three phase |
| Nominal output power | 1500 W for LXM26D at 7 A, 220 V, single phase, 1500 W for LXM26D at 7 A, 220 V, three phase, 1500 W for LXM28... at 7 A, 220 V, single phase, 1500 W for LXM28... at 7 A, 220 V, three phase |
| Nominal torque | 7.16 N.m for LXM26D at 7 A, 220 V, single phase, 7.16 N.m for LXM26D at 7 A, 220 V, three phase, 7.16 N.m for LXM28... at 7 A, 220 V, single phase, 7.16 N.m for LXM28... at 7 A, 220 V, three phase |
| Nominal speed | 2000 rpm for LXM26D at 7 A, 220 V, single phase, 2000 rpm for LXM26D at 7 A, 220 V, three phase, 2000 rpm for LXM28... at 7 A, 220 V, single phase, 2000 rpm for LXM28... at 7 A, 220 V, three phase |
| Maximum current Irms | 20.31 A for LXM28... at 1.5 kW, 220 V |
| Maximum permanent current | 6.74 A |
| Product compatibility | LXM26D servo drive motor at 1.5 kW, 220 V, single phase, LXM26D servo drive motor at 1.5 kW, 220 V, three phase, LXM28... servo drive motor at 1.5 kW, 220 V, single phase, LXM28... servo drive motor at 1.5 kW, 220 V, three phase |
| Shaft end | Keyed |
| Shaft diameter | 22 mm |
| Shaft length | 55 mm |
| Key width | 8 mm |
| Feedback type | 20 bits single turn absolute encoder |
| Holding brake | With |
| Holding torque | 9.6 N.m built-in |
| Mounting support | Asian standard flange |
| Motor flange size | 130 mm |
| Electrical connection | Connector MIL |
| Torque constant | 1.16 N.m/A at 20 °C |
| Back emf constant | 70 V/krpm at 20 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 10 kg.cm² |
| Stator resistance | 0.64 Ohm at 20 °C |
| Stator inductance | 6.4 mH at 20 °C |
| Stator electrical time constant | 10 ms at 20 °C |
| Maximum radial force Fr | 670 N at 2000 rpm |
| Maximum axial force Fa | 200 N |
| Brake pull-in power | 19.7 W |
| Type of cooling | Natural convection |
| Length | 202 mm |
| Number of motor stacks | 3 |
| Centring collar diameter | 110 mm |
| Centring collar depth | 8 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 9.2 mm |
| Circle diameter of the mounting holes | 145 mm |
| Distance shaft shoulder-flange | 8 mm |
| Net weight | 8.8 kg |
| Sizing reference | BCH2 |
| Accuracy error [angular] | 0.044 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Inertia | 9.99 kg.cm² of brake, 10.0 kg.cm² of motor |
| IP degree of protection | IP50 IM V3, IP65 IM B5, IM V1 |
| Ambient air temperature for operation | 0…40 °C |
| Package 1 | 1 PCE, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 10.884 kg |
