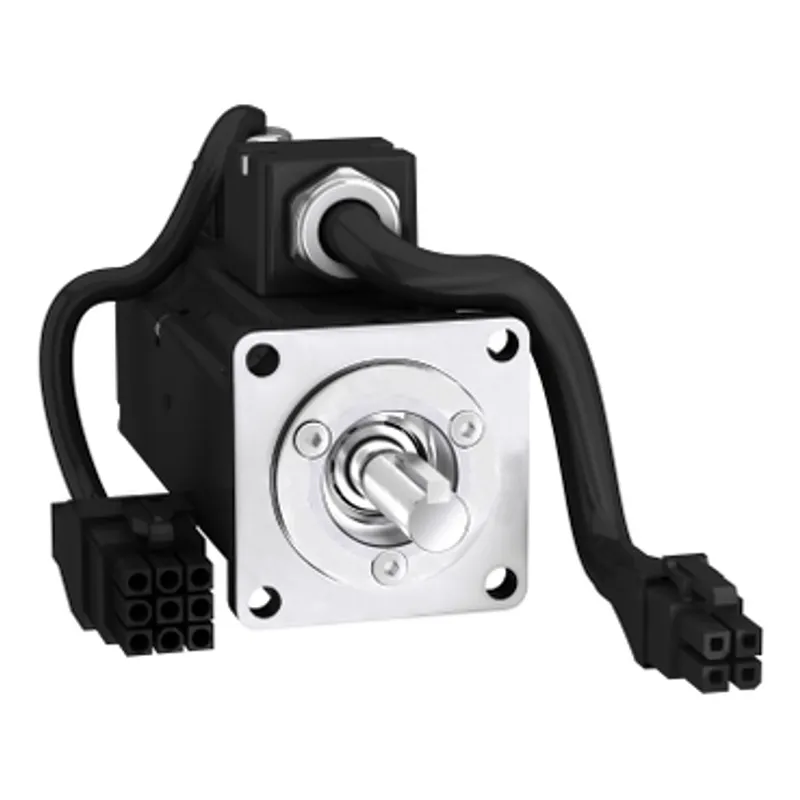

Servo motor BCH, Lexium 28, 40mm, 100W, 0.076kg.cm², with oil seal, with key, brake, leads connection

MPN
BCH2MB0133CF5C
EAN
3606480733475
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BCH2MB0133CF5C?

"This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW and associated servo motors." "This servo motor has a maximum mechanical speed of 5000RPM, a continuous stall torque of 0.32Nm, a keyed shaft end and a holding brake." "It is equipped with a 20 bits single turn absolute encoder." "It is a servo motor with a rated supply voltage of 220V, a continuous stall current of 0.81A and a continuous power of 100W." "The shaft dimensions are 8mm (diameter) x 25mm (length)." "It is furnished with free leads connectors for power and encoder connections. It is an IP65 rated product (shaft and housing)." "It measures 100mm long without holding break, 129mm long with holding break, 55mm high, and its flange size is 40mm. It weighs 0.77kg." "Servo motors BCH2 in combination with Lexium 28 servo drives are designed for application such as material working, material handling, assembly line, packaging." "Lexium BCH2 servo motors are certified by EN 61800-5-1 2007, EN 60034-1 201O/AC 2010 standards, and UK." "This motor is designed to be compatible with the Lexium 28 servo drive, encoder and power cables, connector kits, gearbox options and braking resistors." "It installs on 4x holes of diameter 4.5mm, the circle diameter of the mounting holes is 46mm." "Lexium 28 servo drives & Lexium BCH2 servo motors are the Optimized servo bundles for compact machines." "Lexium 28 & Lexium BCH2 are optimized bundles for easy integration into machines, embedding communication interfaces, safety functions and DC bus sharing."

Specifications

Specifications

Range compatibilityLexium 28
Device short nameBCH2
Product or component typeServo motor
Maximum mechanical speed5000 rpm
[Us] rated supply voltage220 V, 110 V
Network number of phases1
Continuous stall current0.81 A
Continuous stall torque0.32 N.m for LXM26D at 0.9 A, 220 V, single phase, 0.32 N.m for LXM26D at 0.9 A, 220 V, three phase, 0.32 N.m for LXM28 at 0.9 A, 220 V, single phase, 0.32 N.m for LXM28 at 0.9 A, 220 V, three phase, 0.32 N.m for LXM28 at 1.8 A, 110 V, single phase
Continuous power100 W
Peak stall torque0.96 N.m for LXM26D at 0.9 A, 220 V, single phase, 0.96 N.m for LXM26D at 0.9 A, 220 V, three phase, 0.96 N.m for LXM28... at 0.9 A, 220 V, single phase, 0.96 N.m for LXM28... at 0.9 A, 220 V, three phase, 0.96 N.m for LXM28... at 1.8 A, 110 V, single phase
Nominal output power100 W for LXM26D at 0.9 A, 220 V, single phase, 100 W for LXM26D at 0.9 A, 220 V, three phase, 100 W for LXM28... at 0.9 A, 220 V, single phase, 100 W for LXM28... at 0.9 A, 220 V, three phase, 100 W for LXM28... at 1.8 A, 110 V, single phase
Nominal torque0.32 N.m for LXM26D at 0.9 A, 220 V, single phase, 0.32 N.m for LXM26D at 0.9 A, 220 V, three phase, 0.32 N.m for LXM28... at 0.9 A, 220 V, single phase, 0.32 N.m for LXM28... at 0.9 A, 220 V, three phase, 0.32 N.m for LXM28... at 1.8 A, 110 V, single phase
Nominal speed3000 rpm for LXM26D at 0.9 A, 220 V, single phase, 3000 rpm for LXM26D at 0.9 A, 220 V, three phase, 3000 rpm for LXM28... at 0.9 A, 220 V, single phase, 3000 rpm for LXM28... at 0.9 A, 220 V, three phase, 3000 rpm for LXM28... at 1.8 A, 110 V, single phase
Maximum current Irms2.65 A for LXM28... at 0.1 kW, 220 V, 2.65 A for LXM28... at 0.1 kW, 110 V
Maximum permanent current0.89 A
Product compatibilityLXM26D servo drive motor at 0.1 kW, 220 V, single phase, LXM26D servo drive motor at 0.1 kW, 220 V, three phase, LXM28... servo drive motor at 0.1 kW, 220 V, single phase, LXM28... servo drive motor at 0.1 kW, 220 V, three phase, LXM28... servo drive motor at 0.1 kW, 110 V, single phase
Shaft endKeyed
Shaft diameter8 mm
Shaft length25 mm
Key width3 mm
Feedback type20 bits single turn absolute encoder
Holding brakeWith
Holding torque0.32 N.m built-in
Mounting supportAsian standard flange
Motor flange size40 mm
Electrical connectionFree lead
Torque constant0.4 N.m/A at 20 °C
Back emf constant24 V/krpm at 20 °C
Number of motor poles4.0
Rotor inertia0.076 kg.cm²
Stator resistance23.4 Ohm at 20 °C
Stator inductance20.6 mH at 20 °C
Stator electrical time constant0.88 ms at 20 °C
Maximum radial force Fr85 N at 3000 rpm
Maximum axial force Fa40 N
Brake pull-in power4.35 W
Type of coolingNatural convection
Length130 mm
Number of motor stacks2
Centring collar diameter30 mm
Centring collar depth3 mm
Number of mounting holes4
Mounting holes diameter4.5 mm
Circle diameter of the mounting holes46 mm
Distance shaft shoulder-flange3 mm
Net weight0.77 kg
Sizing referenceBCH2
Accuracy error [angular]0.044 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Inertia0.066 kg.cm² of brake, 0.076 kg.cm² of motor
IP degree of protectionIP50 IM V3, IP65 IM B5, IM V1
Ambient air temperature for operation0…40 °C

Packaging

Package 11 PCE, 24.200 cm × 13.000 cm × 8.500 cm (L × W × H), 1.032 kg
Package 23 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.491 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BCH2MB0133CF5C: frequently asked questions

When can BCH2MB0133CF5C be shipped?

BCH2MB0133CF5C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BCH2MB0133CF5C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BCH2MB0133CF5C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2MB0133CF5C, subject to availability and destination.
