Schneider Electric BCH2LH1033CA6C

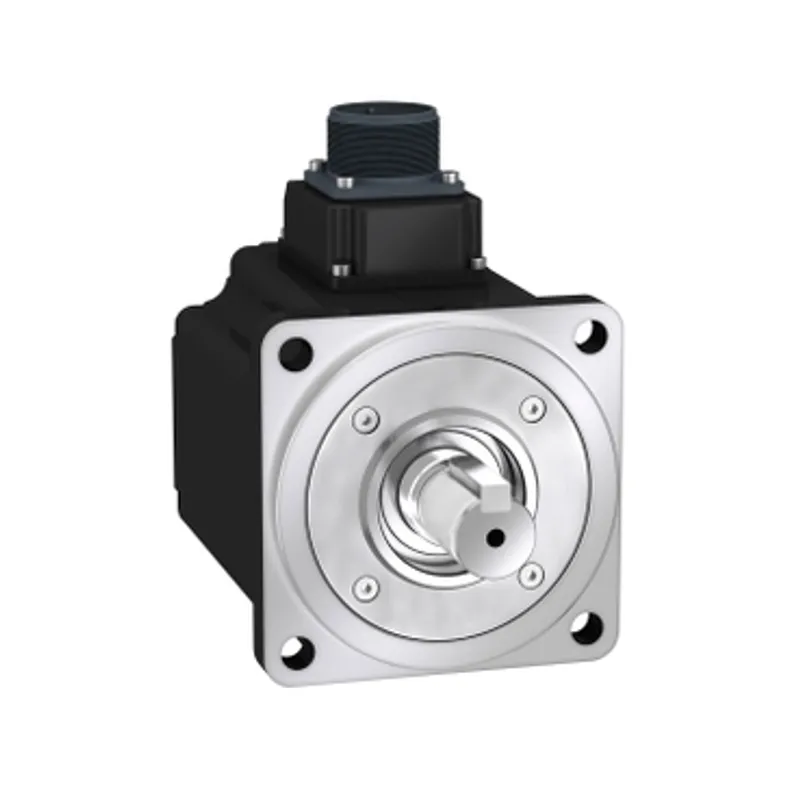

Servo motor BCH; Lexium 28; 100mm; 1000W; 2.4kg.cm²; with oil seal; with key; straight connection

MPN
BCH2LH1033CA6C
EAN
3606480734021
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BCH2LH1033CA6C?

This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 5.83A and a continuous power of 1000W. The shaft dimensions are 22mm (diameter) x 45mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP65 rated product. The length of this product is 153.5mm and the centering collar dimensions are 7mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 4.6kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 1kW 220V single phase and LXM26D servo drive motor. It supports 100mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Specifications

Specifications

Range compatibilityLexium 28
Device short nameBCH2
Product or component typeServo motor
Maximum mechanical speed5000 rpm
[Us] rated supply voltage220 V
Network number of phases1
Continuous stall current5.83 A
Continuous stall torque3.18 N.m for LXM26D at 7 A, 220 V, single phase, 3.18 N.m for LXM26D at 7 A, 220 V, three phase, 3.18 N.m for LXM28 at 7 A, 220 V, single phase, 3.18 N.m for LXM28 at 7 A, 220 V, three phase
Continuous power1000 W
Peak stall torque9.54 N.m for LXM26D at 7 A, 220 V, single phase, 9.54 N.m for LXM26D at 7 A, 220 V, three phase, 9.54 N.m for LXM28... at 7 A, 220 V, single phase, 9.54 N.m for LXM28... at 7 A, 220 V, three phase
Nominal output power1000 W for LXM26D at 7 A, 220 V, single phase, 1000 W for LXM26D at 7 A, 220 V, three phase, 1000 W for LXM28... at 7 A, 220 V, single phase, 1000 W for LXM28... at 7 A, 220 V, three phase
Nominal torque3.18 N.m for LXM26D at 7 A, 220 V, single phase, 3.18 N.m for LXM26D at 7 A, 220 V, three phase, 3.18 N.m for LXM28... at 7 A, 220 V, single phase, 3.18 N.m for LXM28... at 7 A, 220 V, three phase
Nominal speed3000 rpm for LXM26D at 7 A, 220 V, single phase, 3000 rpm for LXM26D at 7 A, 220 V, three phase, 3000 rpm for LXM28... at 7 A, 220 V, single phase, 3000 rpm for LXM28... at 7 A, 220 V, three phase
Maximum current Irms18.9 A for LXM28... at 1 kW, 220 V
Maximum permanent current6.64 A
Product compatibilityLXM26D servo drive motor at 1 kW, 220 V, single phase, LXM26D servo drive motor at 1 kW, 220 V, three phase, LXM28... servo drive motor at 1 kW, 220 V, single phase, LXM28... servo drive motor at 1 kW, 220 V, three phase
Shaft endKeyed
Shaft diameter22 mm
Shaft length45 mm
Key width8 mm
Feedback type20 bits single turn absolute encoder
Holding brakeWithout
Mounting supportAsian standard flange
Motor flange size100 mm
Electrical connectionConnector MIL
Torque constant0.55 N.m/A at 20 °C
Back emf constant33 V/krpm at 20 °C
Number of motor poles5.0
Rotor inertia2.4 kg.cm²
Stator resistance0.67 Ohm at 20 °C
Stator inductance4.2 mH at 20 °C
Stator electrical time constant6.27 ms at 20 °C
Maximum radial force Fr570 N at 3000 rpm
Maximum axial force Fa200 N
Brake pull-in power10.4 W
Type of coolingNatural convection
Length153.5 mm
Number of motor stacks1
Centring collar diameter95 mm
Centring collar depth7 mm
Number of mounting holes4
Mounting holes diameter9.2 mm
Circle diameter of the mounting holes115 mm
Distance shaft shoulder-flange7 mm
Net weight4.6 kg
Sizing referenceBCH2
Accuracy error [angular]0.044 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Inertia0.0 kg.cm² of brake, 2.39 kg.cm² of motor
IP degree of protectionIP50 IM V3, IP65 IM B5, IM V1
Ambient air temperature for operation-20…40 °C

Packaging

Package 11 PCE, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.893 kg
