Schneider Electric BCH2LF0732CA5C

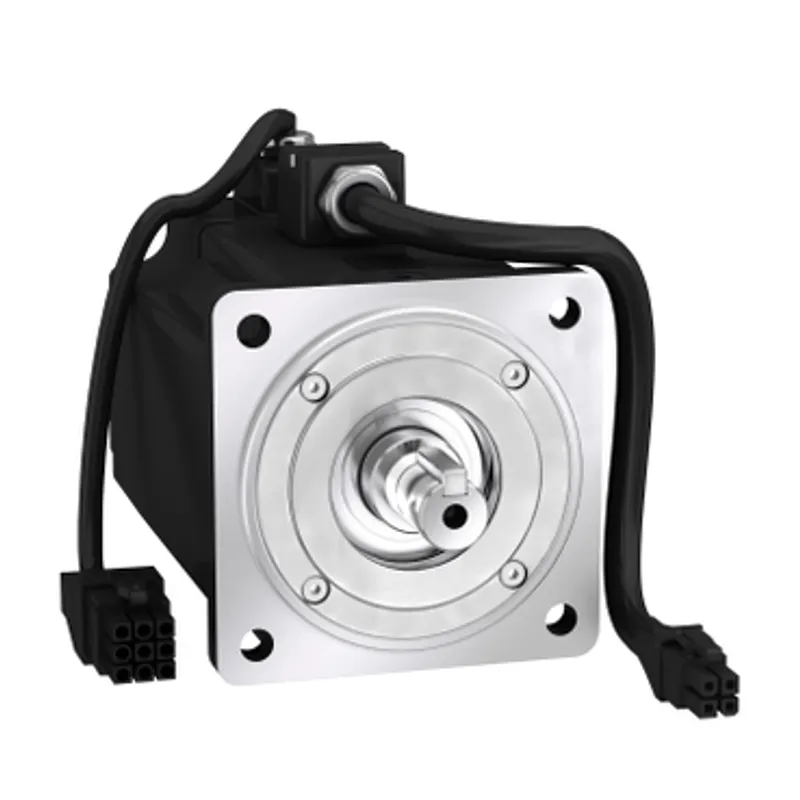

Servo motor BCH, Lexium 28, 80mm, 750W, 1.19kg.cm², with oil seal, smooth, leads connection

MPN
BCH2LF0732CA5C
EAN
3606480733840
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BCH2LF0732CA5C?

Schneider Electric servo motor BCH, Lexium 28, 80mm, 750W, 1.19kg.cm², with oil seal, smooth, leads connection, manufacturer part number BCH2LF0732CA5C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Range compatibilityLexium 28
Device short nameBCH2
Product or component typeServo motor
Maximum mechanical speed5000 rpm
[Us] rated supply voltage220 V, 110 V
Network number of phases1
Continuous stall current4.01 A
Continuous stall torque2.39 N.m for LXM28 at 4.5 A, 220 V, single phase, 2.39 N.m for LXM28 at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28 at 9 A, 110 V, single phase
Continuous power750 W
Peak stall torque7.16 N.m for LXM28... at 4.5 A, 220 V, single phase, 7.16 N.m for LXM28... at 4.5 A, 220 V, three phase, 7.16 N.m for LXM28... at 9 A, 110 V, single phase
Nominal output power750 W for LXM28... at 4.5 A, 220 V, single phase, 750 W for LXM28... at 4.5 A, 220 V, three phase, 750 W for LXM28... at 9 A, 110 V, single phase
Nominal torque2.39 N.m for LXM28... at 4.5 A, 220 V, single phase, 2.39 N.m for LXM28... at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28... at 9 A, 110 V, single phase
Nominal speed3000 rpm for LXM28... at 4.5 A, 220 V, single phase, 3000 rpm for LXM28... at 4.5 A, 220 V, three phase, 3000 rpm for LXM28... at 9 A, 110 V, single phase
Maximum current Irms13.23 A for LXM28... at 0.75 kW, 220 V, 13.23 A for LXM28... at 0.75 kW, 110 V
Maximum permanent current4.29 A
Product compatibilityLXM28... servo drive motor at 0.75 kW, 220 V, single phase, LXM28... servo drive motor at 0.75 kW, 220 V, three phase, LXM28... servo drive motor at 0.75 kW, 110 V, single phase
Shaft endSmooth shaft
Shaft diameter19 mm
Shaft length35 mm
Feedback type20 bits single turn absolute encoder
Holding brakeWithout
Mounting supportAsian standard flange
Motor flange size80 mm
Electrical connectionFree lead
Torque constant0.6 N.m/A at 20 °C
Back emf constant36 V/krpm at 20 °C
Number of motor poles4.0
Rotor inertia1.19 kg.cm²
Stator resistance1.5 Ohm at 20 °C
Stator inductance6.1 mH at 20 °C
Stator electrical time constant4.07 ms at 20 °C
Maximum radial force Fr332 N at 3000 rpm
Maximum axial force Fa115 N
Brake pull-in power10.2 W
Type of coolingNatural convection
Length138 mm
Number of motor stacks2
Centring collar diameter70 mm
Centring collar depth4 mm
Number of mounting holes4
Mounting holes diameter6.6 mm
Circle diameter of the mounting holes90 mm
Distance shaft shoulder-flange4 mm
Net weight2.8 kg
Sizing referenceBCH2
Accuracy error [angular]0.044 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Inertia0.0 kg.cm² of brake, 1.53 kg.cm² of motor
IP degree of protectionIP50 IM V3, IP65 IM B5, IM V1
Ambient air temperature for operation-20…40 °C

Packaging

Package 11 PCE, 29.6 cm × 17.5 cm × 13.8 cm (L × W × H), 3.475 kg
Package 22 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 7.54 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BCH2LF0732CA5C: frequently asked questions

When can BCH2LF0732CA5C be shipped?

BCH2LF0732CA5C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BCH2LF0732CA5C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BCH2LF0732CA5C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2LF0732CA5C, subject to availability and destination.
