Schneider Electric BCH2LF0433CF5C

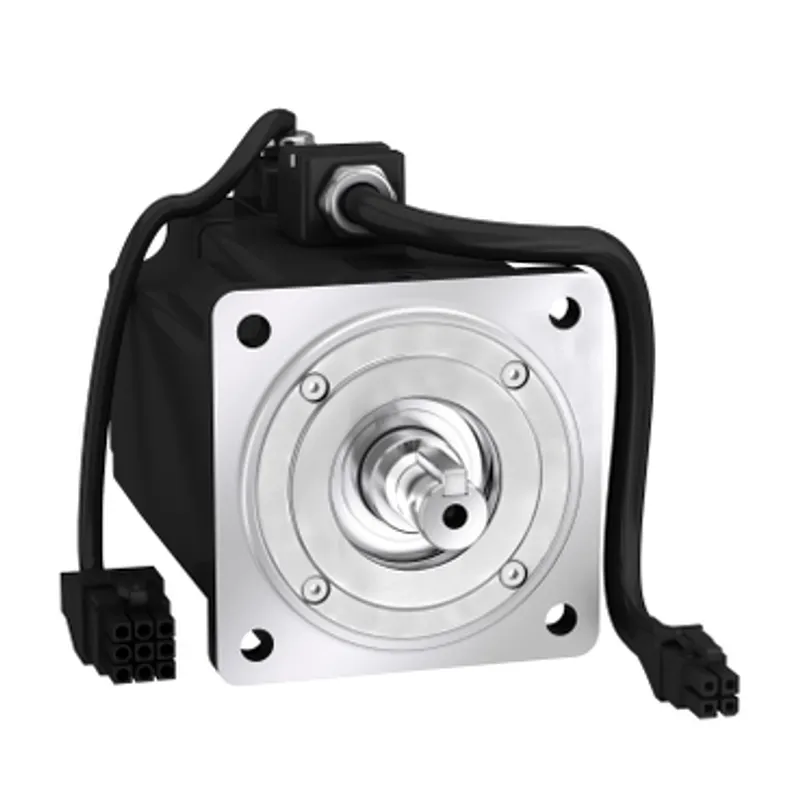

Servo motor BCH, Lexium 28, 80mm, 400W, 0.72kg.cm², with oil seal, with key, brake, leads connection

MPN
BCH2LF0433CF5C
EAN
3606480733710
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BCH2LF0433CF5C?

"This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors." "This brushless servo motor features maximum mechanical speed of 5000RPM, a key shaft end, with holding brake." "It is equipped with a 20 bits single turn absolute encoder." "It is equipped with flying leads." "It is a servo motor with a rated supply voltage of 110V to 220V, a continuous stall current of 2.29A and a continuous power of 400W." "Shaft end and casing are an IP65 rated." "The flange size is 80mm, it is fixed by 4x 6.6mm holes. The circle diameter of the mounting holes is 90mm. It weighs 2.8kg." "BCH2 servo motors with Lexium servo drives meet the requirements of production and packaging machinery, material handling and assembly systems." "This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O/AC 2010 standards, and conforms to EU CE, UKCA, CSA, and UL." "This servo motor is compatible with LXM26D and LXM28 servo drive at 0.4kW, 220V, and with encoder cables and power cables." "Permitted mounting positions are horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7." "Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines." "Designed for optimized & cost-effective."

Specifications

Specifications

Range compatibilityLexium 28
Device short nameBCH2
Product or component typeServo motor
Maximum mechanical speed5000 rpm
[Us] rated supply voltage220 V, 110 V
Network number of phases1
Continuous stall current2.29 A
Continuous stall torque1.27 N.m for LXM26D at 2.6 A, 220 V, single phase, 1.27 N.m for LXM26D at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28 at 2.6 A, 220 V, single phase, 1.27 N.m for LXM28 at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28 at 5.7 A, 110 V, single phase
Continuous power400 W
Peak stall torque3.81 N.m for LXM26D at 2.6 A, 220 V, single phase, 3.81 N.m for LXM26D at 2.6 A, 220 V, three phase, 3.81 N.m for LXM28... at 2.6 A, 220 V, single phase, 3.81 N.m for LXM28... at 2.6 A, 220 V, three phase, 3.81 N.m for LXM28... at 5.7 A, 110 V, single phase
Nominal output power400 W for LXM26D at 2.6 A, 220 V, single phase, 400 W for LXM26D at 2.6 A, 220 V, three phase, 400 W for LXM28... at 2.6 A, 220 V, single phase, 400 W for LXM28... at 2.6 A, 220 V, three phase, 400 W for LXM28... at 5.7 A, 110 V, single phase
Nominal torque1.27 N.m for LXM26D at 2.6 A, 220 V, single phase, 1.27 N.m for LXM26D at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28... at 2.6 A, 220 V, single phase, 1.27 N.m for LXM28... at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28... at 5.7 A, 110 V, single phase
Nominal speed3000 rpm for LXM26D at 2.6 A, 220 V, single phase, 3000 rpm for LXM26D at 2.6 A, 220 V, three phase, 3000 rpm for LXM28... at 2.6 A, 220 V, single phase, 3000 rpm for LXM28... at 2.6 A, 220 V, three phase, 3000 rpm for LXM28... at 5.7 A, 110 V, single phase
Maximum current Irms7.73 A for LXM28... at 0.4 kW, 220 V, 7.73 A for LXM28... at 0.4 kW, 110 V
Maximum permanent current2.52 A
Product compatibilityLXM26D servo drive motor at 0.4 kW, 220 V, single phase, LXM26D servo drive motor at 0.4 kW, 220 V, three phase, LXM28... servo drive motor at 0.4 kW, 220 V, single phase, LXM28... servo drive motor at 0.4 kW, 220 V, three phase, LXM28... servo drive motor at 0.4 kW, 110 V, single phase
Shaft endKeyed
Shaft diameter14 mm
Shaft length30 mm
Key width5 mm
Feedback type20 bits single turn absolute encoder
Holding brakeWith
Holding torque2.5 N.m built-in
Mounting supportAsian standard flange
Motor flange size80 mm
Electrical connectionFree lead
Torque constant0.55 N.m/A at 20 °C
Back emf constant33.5 V/krpm at 20 °C
Number of motor poles4.0
Rotor inertia0.72 kg.cm²
Stator resistance3.2 Ohm at 20 °C
Stator inductance11.3 mH at 20 °C
Stator electrical time constant3.53 ms at 20 °C
Maximum radial force Fr332 N at 3000 rpm
Maximum axial force Fa115 N
Brake pull-in power10.2 W
Type of coolingNatural convection
Length152 mm
Number of motor stacks1
Centring collar diameter70 mm
Centring collar depth4 mm
Number of mounting holes4
Mounting holes diameter6.6 mm
Circle diameter of the mounting holes90 mm
Distance shaft shoulder-flange4 mm
Net weight2.8 kg
Sizing referenceBCH2
Accuracy error [angular]0.044 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Inertia0.71 kg.cm² of brake, 0.72 kg.cm² of motor
IP degree of protectionIP50 IM V3, IP65 IM B5, IM V1
Ambient air temperature for operation0…40 °C

Packaging

Package 11 PCE, 29.5 cm × 17.2 cm × 13.9 cm (L × W × H), 3.27 kg
Package 22 S03, 40 cm × 30 cm × 30 cm (L × W × H), 7.013 kg
Package 316 P06, 72 cm × 60 cm × 80 cm (L × W × H), 63.104 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BCH2LF0433CF5C: frequently asked questions

When can BCH2LF0433CF5C be shipped?

BCH2LF0433CF5C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BCH2LF0433CF5C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BCH2LF0433CF5C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2LF0433CF5C, subject to availability and destination.
