Schneider Electric ATV930C16N4
Variable speed drive, Altivar Process ATV900, ATV930, 160kW, 380 to 480V, with braking unit, IP20
- MPN
- ATV930C16N4
- EAN
- 3606481490407
- Category
- Altivar Process ATV900
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric ATV930C16N4?
"This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors." "It is suitable for motors with power rating up to 160kW/250HP for applications requiring slight overload (up to 120%)." "It is suitable for motors with power rating up to 132kW/200HP for applications requiring significant overload (up to 150%)." "It works at a rated supply voltage from 380Vac to 480Vac." "This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes." "In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater." "It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications." "Network services help ensure operation continuity even in case of connection breakdown." "Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance." "Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures."
Specifications
Specifications
| Range of product | Altivar Process ATV900 |
| Product specific application | Process for industrial |
| Product or component type | Variable speed drive |
| Variant | Standard version, With braking chopper |
| Device application | Industrial application |
| Product destination | Synchronous motors, Asynchronous motors |
| Network number of phases | 3 phases, Single phase |
| Mounting mode | Wall mount |
| Continuous output current | 302 A at 4 kHz for normal duty, 250 A at 4 kHz for heavy duty |
| Communication port protocol | Ethernet IP/Modbus TCP, Modbus |
| option module | Slot A: communication module for Profibus DP V1, Slot A: communication module for PROFINET, Slot A: communication module for DeviceNet, Slot A: communication module for EtherCAT, Slot A: communication module for CANopen daisy chain RJ45, Slot A: communication module for CANopen SUB-D 9, Slot A: communication module for CANopen screw terminals, Slot A/slot B/slot C: digital and analog I/O extension module, Slot A/slot B/slot C: output relay extension module, Slot B: 5/12 V digital encoder interface module, Slot B: analog encoder interface module, Slot B: resolver encoder interface module |
| [Us] rated supply voltage | 380...480 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 302.0 A |
| Motor power kW | 160.0 kW for normal duty, 132.0 kW for heavy duty |
| EMC filter | Integrated, With EMC plate option |
| IP degree of protection | IP21 |
| Degree of protection | UL type 1 |
| Electrical connection | Line side: screw terminal 2 x 95...3 x 120 mm²/2 x AWG 3/0...2 x 300 kcmil, DC bus: screw terminal 0.5...1.5 mm²/AWG 20...AWG 16, Control: screw terminal 0.5...1.5 mm²/AWG 20...AWG 16 |
| Transmission rate | 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s |
| Data format | 8 bits, configurable odd, even or no parity |
| Type of polarization | No impedance |
| Number of addresses | 1…247 |
| Local signalling | Local diagnostic: 3 LEDs (mono/dual colour), 5 LEDs (dual colour), 2 LEDs (dual colour), 1 LED (red) |
| Isolation | Between power and control terminals |
| Discrete input number | 10 |
| Relay output type | Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles, Configurable relay logic R2: sequence relay NO electrical durability 1000000 cycles, Configurable relay logic R3: sequence relay NO electrical durability 1000000 cycles |
| Physical interface | Ethernet, 2-wire RS 485 |
| Connector type | 2 RJ45, 1 RJ45 |
| Method of access | Slave Modbus TCP |
| Transmission frame | RTU |
| 4 quadrant operation possible | True |
| Asynchronous motor control profile | Constant torque standard, Variable torque standard, Optimized torque mode |
| Synchronous motor control profile | Permanent magnet motor, Synchronous reluctance motor |
| Maximum output frequency | 599 Hz |
| Acceleration and deceleration ramps | Linear adjustable separately from 0.01...9999 s, S, U or customized |
| Motor slip compensation | Adjustable, Automatic whatever the load, Can be suppressed, Not available in permanent magnet motor law |
| Switching frequency | 1...8 kHz adjustable, 2.5...8 kHz with derating factor |
| Nominal switching frequency | 2.5 kHz |
| Braking to standstill | By DC injection |
| Brake chopper integrated | True |
| Line current | 284.0 A at 380 V (normal duty), 237.0 A at 380 V (heavy duty), 262.0 A at 480 V (normal duty), 213.0 A at 480 V (heavy duty) |
| Maximum input current | 284.0 A |
| Maximum output voltage | 480.0 V |
| Apparent power | 201.3 kVA at 380...480 V (normal duty), 161.4 kVA at 380...480 V (heavy duty) |
| Maximum transient current | 362 A during 60 s (normal duty), 375 A during 60 s (heavy duty) |
| Network frequency | 50...60 Hz |
| Prospective line Isc | 50 kA |
| Base load current at high overload | 250.0 A |
| Base load current at low overload | 302.0 A |
| With safety function Safely Limited Speed (SLS) | True |
| With safety function Safe brake management (SBC/SBT) | True |
| With safety function Safe Operating Stop (SOS) | False |
| With safety function Safe Position (SP) | False |
| With safety function Safe programmable logic | False |
| With safety function Safe Speed Monitor (SSM) | False |
| With safety function Safe Stop 1 (SS1) | True |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe torque off (STO) | True |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Direction (SDI) | False |
| Protection type | Thermal protection: motor, Safe torque off: motor, Motor phase break: motor, Thermal protection: drive, Safe torque off: drive, Overheating: drive, Overcurrent between output phases and earth: drive, Overload of output voltage: drive, Short-circuit protection: drive, Motor phase break: drive, Overvoltages on the DC bus: drive, Line supply overvoltage: drive, Line supply undervoltage: drive, Line supply phase loss: drive, Overspeed: drive, Break on the control circuit: drive |
| Quantity per set | 1 |

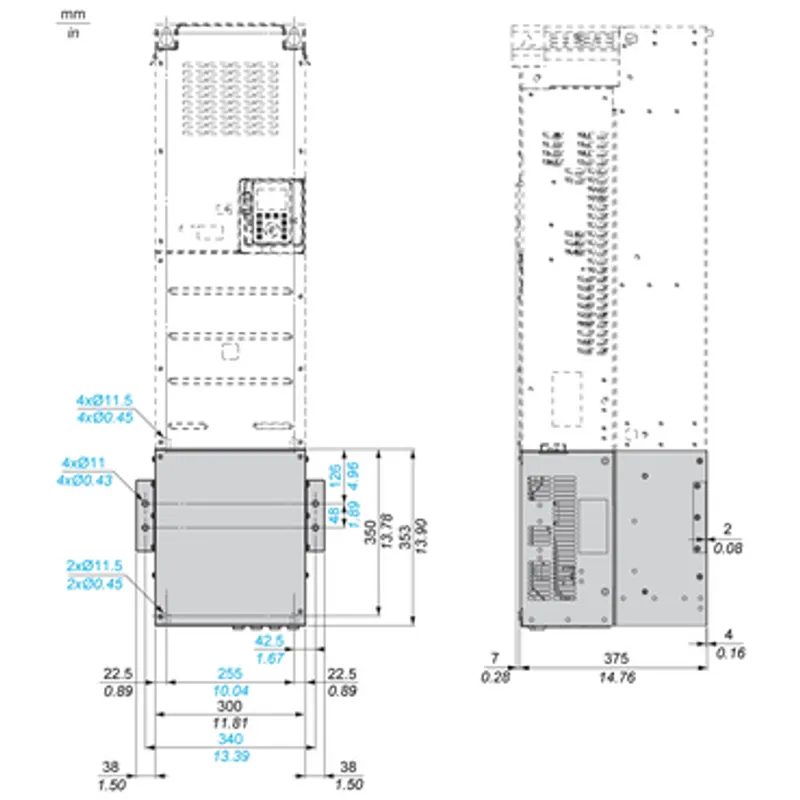

| Width | 320 mm |
| Height | 1205 mm |
| Depth | 393 mm |
| Net weight | 104 kg |
| Insulation resistance | > 1 MOhm 500 V DC for 1 minute to earth |
| Noise level | 69.9 dB |
| Vibration resistance | 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 6 gn for 11 ms conforming to IEC 60068-2-27 |
| Environmental characteristic | Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3, Dust pollution resistance class 3S3 conforming to IEC 60721-3-3 |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 |
| Ambient air temperature for operation | -15…50 °C (without derating), 50…60 °C (with derating factor) |
| Operating position | Vertical +/- 10 degree |
| Product certifications | UL, CSA, TÜV |
| Marking | CE |
| Standards | UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1 |
| Maximum THDI | <48 % full load conforming to IEC 61000-3-12 |
| Assembly style | Enclosed |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3, Class 3S3 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Overvoltage category | III |
| Regulation loop | Adjustable PID regulator |
| Pollution degree | 2 |
| Ambient air transport temperature | -25…70 °C |
| Ambient air temperature for storage | -25…70 °C |
Packaging
| Package 1 | 1 PCE, 145.000 cm × 49.000 cm × 70.000 cm (L × W × H), 130.500 kg |
