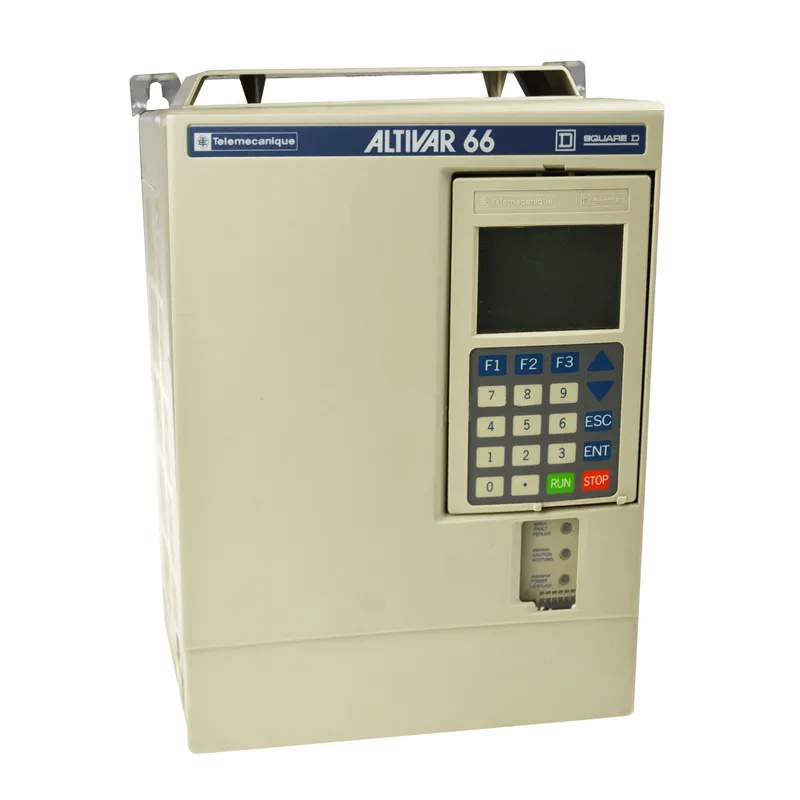

Schneider Electric ATV66D23N4E – adjustable speed drive ATV66 23KVA 400/460V

Name: Schneider Electric ATV66D23N4E – adjustable speed drive ATV66 23KVA 400/460V
Brand: Schneider Electric
SKU: ATV66D23N4E

MPN: ATV66D23N4E · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original ATV66D23N4E (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Altivar 66
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3389110869378
Recommended replacement	ATV340D15N4
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the ATV66D23N4E now that it is discontinued?

Yes. Schneider Electric has discontinued the ATV66D23N4E, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the ATV340D15N4 as its successor — we can quote both.

When can ATV66D23N4E be shipped?

ATV66D23N4E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ATV66D23N4E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ATV66D23N4E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATV66D23N4E, subject to availability and destination.

Schneider Electric ATV66D23N4E — adjustable speed drive ATV66 23KVA 400/460V. Discontinued by Schneider Electric; the manufacturer's successor is ATV340D15N4. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Altivar 66
Product or component type	Variable speed drive

Complementary

Product destination	Asynchronous motors
[Us] rated supply voltage	380...460 V - 10...10 %
Supply frequency	50...60 Hz - 5...5 %
Network frequency	47.5...63 Hz
Network number of phases	3 phases
Motor power kW	18.5 kW at 380...460 V
Motor power hp	25 hp
Line current	44.7 A at 380 V; 35.6 A at 460 V
Apparent power	23 kVA at 400 V
Continuous output current	33 A at 400 V
Output frequency	0…0.3 kHz
Nominal switching frequency	2.5 kHz
Switching frequency	0.5...4 kHz; 8...16 kHz with current derating
Local signalling	1 graphic display terminal
Output voltage	400 V
Communication port protocol	Modbus
Physical interface	RS485 multidrop serial link
Transmission rate	9.6...19.2 kbauds
Height	415 mm
Width	234 mm
Depth	245 mm
Option card	Communication card for Profibus DP; Communication card for CANopen; Communication card for DeviceNet; Communication card for Ethernet; Communication card for Fipio; Communication card for Uni-Telway; Communication card for Interbus-S; Communication card for Modbus Plus; Communication card for AS-Interface

Environment

IP degree of protection	IP00
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-25…70 °C
Operating altitude	<= 1000 m; > 1000...2000 m 1 % per 100 m
