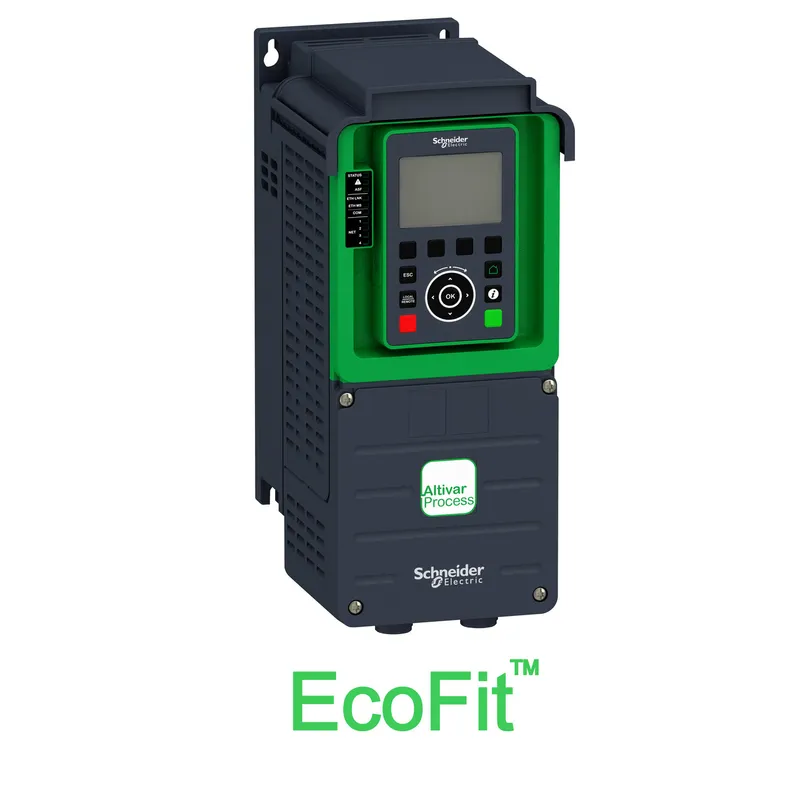

Schneider Electric ATV630U75M3M – EcoFit Replacement for Drives Kit includes Replacement drive, wiring combo & Extended warranty for Altivar Process ATV630,7.5kW
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EcoFit™ Replacement for Drives |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3606487006411 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can ATV630U75M3M be shipped?
ATV630U75M3M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ATV630U75M3M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ATV630U75M3M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATV630U75M3M, subject to availability and destination.
The Ecofit Replacement Drive Kit includes a replacement Variable Speed drive, wiring combo, adaptor plate, and extended warranty, in addition to a temporary license to convert the equipment parameterization through SoMove The Replacement Drive is the major Kit component which is compatible with 1-phase or 3-phase synchronous and asynchronous power motors It operates at rated supply Voltage of 200V to 240V AC It provides up to 30% energy savings in standby mode via ‘‘Stop and Go’’ operation The Kit component Wiring combo facilitates easy conversion from old to new wiring during rewiring The kit component Extended warranty adds 1 year coverage after standard warranty expiration PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Altivar Process 630/930 |
| Product or component type | Drive replacement kit |
Complementary
| Kit composition | 1 replacement variable speed drive; 1 wire set; 1 warranty extension |
| Product destination | Asynchronous motors; Synchronous motors |
| Product specific application | Process for industrial |
| Motor power kW | 7.5 kW for normal duty; 5.5 kW for heavy duty |
| Number of input phases | 3 |
| [Us] rated supply voltage | 200...240 V |
| nominal output current | 32.7 A |
| Electrical connection | Wires to clamp and easily convert old to new wiring during rewiring process |
| Service short description | Warranty extension of 1 year after expiry of standard warranty |
| Condition of use | Delivered in kit form |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet ATV630U75M3M |
