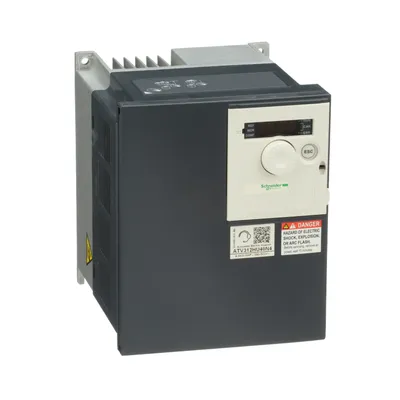

Schneider Electric ATV312HU30N4412 – variable speed drive ATV312 - 3kW - 7.1kVA - 125 W - 380..500 V - 3-phase supply

MPN: ATV312HU30N4412 · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original ATV312HU30N4412 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Altivar 312
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606480508622
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the ATV312HU30N4412 now that it is discontinued?

Yes. Schneider Electric has discontinued the ATV312HU30N4412, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can ATV312HU30N4412 be shipped?

ATV312HU30N4412 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ATV312HU30N4412 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ATV312HU30N4412 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATV312HU30N4412, subject to availability and destination.

Schneider Electric ATV312HU30N4412 — variable speed drive ATV312 - 3kW - 7.1kVA - 125 W - 380..500 V - 3-phase supply (Altivar 312 Solar). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Altivar 312 Solar
Product or component type	Variable speed drive
Product destination	Asynchronous motors
Product specific application	Pumping station with photovoltaic arrays
Assembly style	With heat sink
Device short name	ATV312

Complementary

Motor power kW	3 kW
[Us] rated supply voltage	380...500 V - 5...5 %
Supply voltage limits	323…550 V
Supply frequency	50...60 Hz - 5...5 %
Network frequency	47.5...63 Hz
Network number of phases	3 phases
Line current	10.9 A at 380 V, Isc = 1 kA; 8.3 A at 500 V
EMC filter	Integrated
Apparent power	7.1 kVA
Prospective line Isc	1 kA
Continuous output current	7.1 A at 4 kHz
Maximum transient current	10.7 A for 60 s
Power dissipation in W	125 W at nominal load
Speed drive output frequency	0.5…500 Hz
Nominal switching frequency	4 kHz
Switching frequency	2...16 kHz adjustable
Speed range	1…50
Transient overtorque	150…170 % of nominal motor torque
Braking torque	<= 150 % during 60 s with braking resistor; 100 % with braking resistor continuously; 150 % without braking resistor
Asynchronous motor control profile	Factory set: energy saving mode
Regulation loop	Frequency PI regulator
Motor slip compensation	Automatic whatever the load; Adjustable; Suppressable
Output voltage	<= power supply voltage
Electrical connection	Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 2.5 mm² AWG 14; L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 2.5 mm² AWG 14
Tightening torque	Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6: 0.6 N.m; L1, L2, L3, U, V, W, PA, PB, PA/+, PC/-: 0.8 N.m
Insulation	Electrical between power and control
Supply	Internal supply for logic inputs at 19...30 V, <100 A, protection type: overload and short-circuit protection; Internal supply for reference potentiometer (2.2 to 10 kOhm) at 10...10.8 V, <10 A, protection type: overload and short-circuit protection
Analogue input number	3
Analogue input type	AI1 configurable voltage 0...10 V, input voltage 30 V max, impedance: 30000 Ohm; AI2 configurable voltage +/- 10 V, input voltage 30 V max, impedance: 30000 Ohm; AI3 configurable current 0...20 mA, impedance: 250 Ohm
Sampling duration	AI1, AI2, AI3: 8 ms analog; LI1...LI6: 4 ms discrete
Response time	AOV, AOC 8 ms for analog; R1A, R1B, R1C, R2A, R2B 8 ms for discrete
Linearity error	+/- 0.2 % for output
Analogue output number	2
Analogue output type	AOC configurable current: 0...20 mA, impedance: 800 Ohm, resolution: 8 bits; AOV configurable voltage: 0...10 V, impedance: 470 Ohm, resolution: 8 bits
Discrete input logic	Logic input not wired (LI1...LI4), < 13 V (state 1); Negative logic (source) (LI1...LI6), > 19 V (state 0); Positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1)
Discrete output number	2
Discrete output type	Configurable relay logic: (R1A, R1B, R1C) 1 NO + 1 NC - 100000 cycles; Configurable relay logic: (R2A, R2B) NC - 100000 cycles
Minimum switching current	R1-R2 10 mA at 5 V DC
Maximum switching current	2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (R1-R2); 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (R1-R2); 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (R1-R2); 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (R1-R2)
Discrete input number	6
Discrete input type	(LI1...LI6) programmable at 24 V, 0…100 mA for PLC, impedance: 3500 Ohm
Acceleration and deceleration ramps	Linear adjustable separately from 0.1 to 999.9 s; S, U or customized
Braking to standstill	By DC injection
Protection type	Input phase breaks: drive; Line supply overvoltage and undervoltage safety circuits: drive; Line supply phase loss safety function, for three phases supply: drive; Motor phase breaks: drive; Overcurrent between output phases and earth (on power up only): drive; Overheating protection: drive; Short-circuit between motor phases: drive; Thermal protection: motor
Dielectric strength	2410 V DC between earth and power terminals; 3400 V AC between control and power terminals
Insulation resistance	>= 500 mOhm 500 V DC for 1 minute
Local signalling	1 LED (red) for drive voltage; Four 7-segment display units for CANopen bus status
Time constant	5 ms for reference change
Frequency resolution	Analog input: 0.1...100 Hz; Display unit: 0.1 Hz
Communication port protocol	CANopen; Modbus
Connector type	1 RJ45 for Modbus/CANopen
Physical interface	RS485 multidrop serial link
Transmission frame	RTU
Transmission rate	10, 20, 50, 125, 250, 500 kbps or 1 Mbps for CANopen; 4800, 9600 or 19200 bps for Modbus
Number of addresses	1…127 for CANopen; 1…247 for Modbus
Number of drive	127 for CANopen; 31 for Modbus
Electromagnetic compatibility	1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5; Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4; Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Standards	IEC 61800-5-1; IEC 61800-3
Marking	CE
Height	184 mm
Width	142 mm
Depth	152 mm
Net weight	3.1 kg
Option card	Communication card for CANopen daisy chain; Communication card for DeviceNet; Communication card for Fipio; Communication card for Modbus TCP; Communication card for Profibus DP

Environment

IP degree of protection	IP20 without cover plate
Pollution degree	2
Protective treatment	TC
Vibration resistance	1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6; 1.5 mm (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to EN/IEC 60068-2-27
Relative humidity	5…95 % without condensation conforming to IEC 60068-2-3; 5…95 % without dripping water conforming to IEC 60068-2-3
Ambient air temperature for storage	-25…70 °C
Ambient air temperature for operation	-10…50 °C without derating (with protective cover on top of the drive); -10…60 °C with derating factor (without protective cover on top of the drive)
Operating altitude	<= 1000 m without derating; >= 1000 m with current derating 1 % per 100 m
Operating position	Vertical +/- 10 degree
