AP9811Accessory, Network Management Cards, USB to Dry Contact Accessory, for Network Management Cards, provides one dry contact input and two relay outputs
Schneider Electric APCRBC105

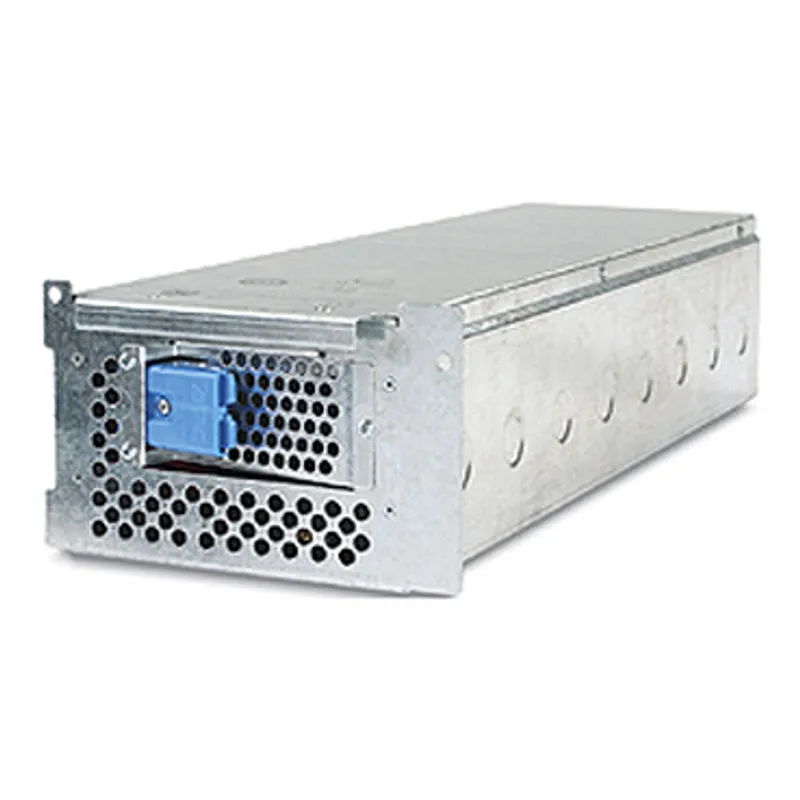

APC Replacement Battery Cartridge #105 with 2 Year Warranty
- MPN
- APCRBC105
- EAN
- 0731304248729
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric APCRBC105?
The genuine APC Replacement Battery Cartridge (RBC) is tested and certified for 100% compatibility to the the specific APC UPS. This lead-acid RBC has a lifetime of three to five years which offers reliable support and extends the useful life of your UPS. The APC RBC comes fully assembled and ready for use. To see the compatible UPS list, please click "View Compatible UPS Models"button in "Get Support" Section at APC.com
Specifications
Specifications
| Product or component type | Replacement battery cartridge |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | All required connectors, Battery recycling guide, Metallic battery tray or enclosure, Reusable packaging, Installation guide |
| Number of battery free slots | 0 |
| Number of battery filled slots | 0 |
| Device mounting | Enclosed battery cartridge |
| Battery voltage | 48 V |
| Additional information | The SUA48RMXLBP3U requires two(2) APCRBC105.. |
| Number of battery replacement quantity | 1 |
| Height | 108 mm |
| Width | 165 mm |
| Depth | 572 mm |
| Net weight | 24.55 kg |
| Mounting mode | Not rack-mountable |
| Ambient air temperature for operation | 0…40 °C |
| Operating altitude | 0...10000 ft |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -5…45 °C |
| Storage altitude | 0…15240 m |
| Storage Relative Humidity | 0…95 % |
Packaging
| Package 1 | 1 PCE, 73.700 cm × 31.100 cm × 27.900 cm (L × W × H), 26.360 kg |
| Package 2 | 6 P12, 120.000 cm × 80.000 cm × 82.000 cm (L × W × H), 170.160 kg |
