Schneider Electric AL250JD

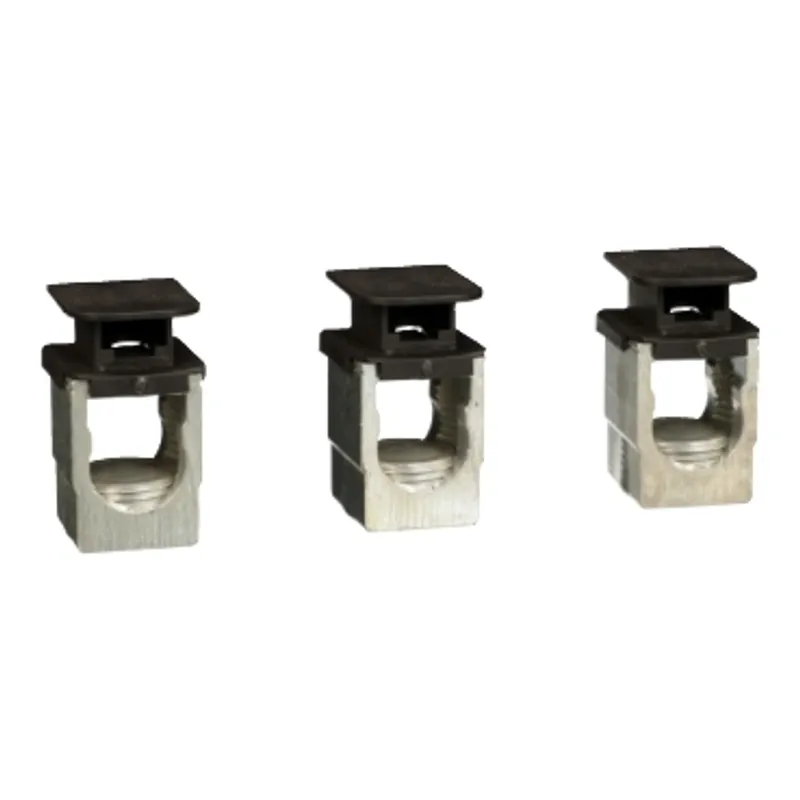

Circuit breaker accessory, PowerPacT J, lug kit, mechanical, 200A to 250A, aluminum, qty 3
- MPN
- AL250JD
- Category
- Power Distribution
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original AL250JD (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AL250JD?
PowerPacT H- and J-Frame Molded-Case Circuit Breakers (150A and 250A) is a flexible, high performance offer certified to global standards. They are available with optional features such as Thermal magnetic or Micrologic™ trip protection 15–250A up to 600Vac and 250Vdc. They also come with a high performance UL listed interrupting ratings from 18 to 200kA at 480Vac. PowerPacT H- and J-Frame have common mounting holes, handle locations and trim dimensions with many shared accessories and auxiliaries. This PowerPacT mechanical lug is a connection accessory. This PowerPacT J-Frame accessory has a rated current of 200-250A and is made of aluminium and comes in set of 3. These accessories are UL, CSA, NOM, IEC, CCC certified and CE marked for global acceptance. This product comes with an 18 month warranty.
Specifications
Specifications
| Range of product | PowerPact J |
| Product or component type | Mechanical lug |
| Accessory / separate part category | Connection accessory |
| [In] rated current | 200…250 A |
| Material | Aluminium |
| Mounting mode | By screws |
| Location of connection | Upstream, Downstream |
| Cable material | Aluminium, Copper |
| Quantity per set | Set of 3 |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 5.000 cm × 2.500 cm (L × W × H), 101.000 g |
| Package 2 | 50 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.600 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AL250JD: frequently asked questions
Can I still buy the AL250JD now that it is discontinued?
Yes. Schneider Electric has discontinued the AL250JD, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AL250JD be shipped?
AL250JD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AL250JD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AL250JD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AL250JD, subject to availability and destination.
