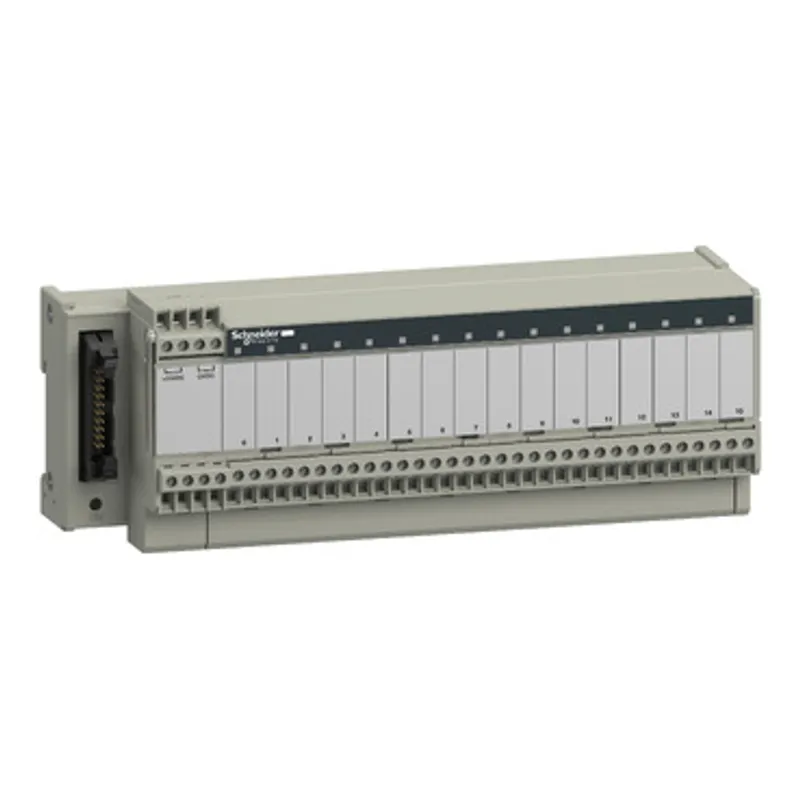

sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon ABE7 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.41 kg |
Shipping & availability
When can ABE7R16S210 be shipped?
ABE7R16S210 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABE7R16S210 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABE7R16S210 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABE7R16S210, subject to availability and destination.
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered electromechanical relay, provides 16 channels. It has normally opened contact for pre-actuator. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 24V DC and a maximum current of 10A per output. It offers electrical durability about 500000 operating cycles. It is an IP2x rated product. Its dimension is 206mm (Width). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Electromechanical output relay sub-base |
| [Us] rated supply voltage | 24 V DC for PLC end |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Terminal block type | Removable |
| Polarity distribution | Volt-free |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum current per output common | 10 A |
| Current per channel | 5 A for preactuator end |
| Minimum switching current | 10 mA at >= 5 V |
| Drop-out voltage | 2.4 V at 20 °C (PLC end) |
| Switching frequency | <= 0.5 Hz, <= 10 Hz |
| Threshold tripping voltage | 19.7 V at 40 °C |
| Drop-out current | 1 mA at 20 °C |
| Maximum power dissipation per channel in W | 0.36 W (PLC end) |
| Contacts type and composition | 1 NO for preactuator end |
| Maximum switching voltage | 250 V AC 50/60 Hz conforming to IEC 60947-5-1, 30 V DC conforming to IEC 60947-5-1 |
| Electrical durability | 500000 cycles, maximum switching current: 600 mA at 24 V DC-13 10 ms (preactuator end), 500000 cycles, maximum switching current: 1500 mA at 230 V AC-12 (preactuator end), 500000 cycles, maximum switching current: 1500 mA at 24 V DC-12 (preactuator end), 500000 cycles, maximum switching current: 900 mA at 230 V AC-15 (preactuator end) |
| electrical reliability | 1e-008 |
| Operating time | <= 10 ms coil energisation and NO closing, <= 5 ms coil de-energisation and NO opening |
| Contact bounce time | <= 5 ms 1 NO |
| Operating rate in Hz | 10 Hz no load, 0.5 Hz at Ie |
| Mechanical durability | 20000000 cycles |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Width | 206 mm |
| Net weight | 0.405 kg |
| Max immunity to microbreaks | 5 ms |
| Dielectric strength | 2000 V conforming to IEC 60947-1 |
| Product certifications | GL, CSA, DNV, UL, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TC |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 8.200 cm |
| Package 1 Length | 21.100 cm |
| Package 1 Weight | 581.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.103 kg |
| Warranty (in months) | 18 |
