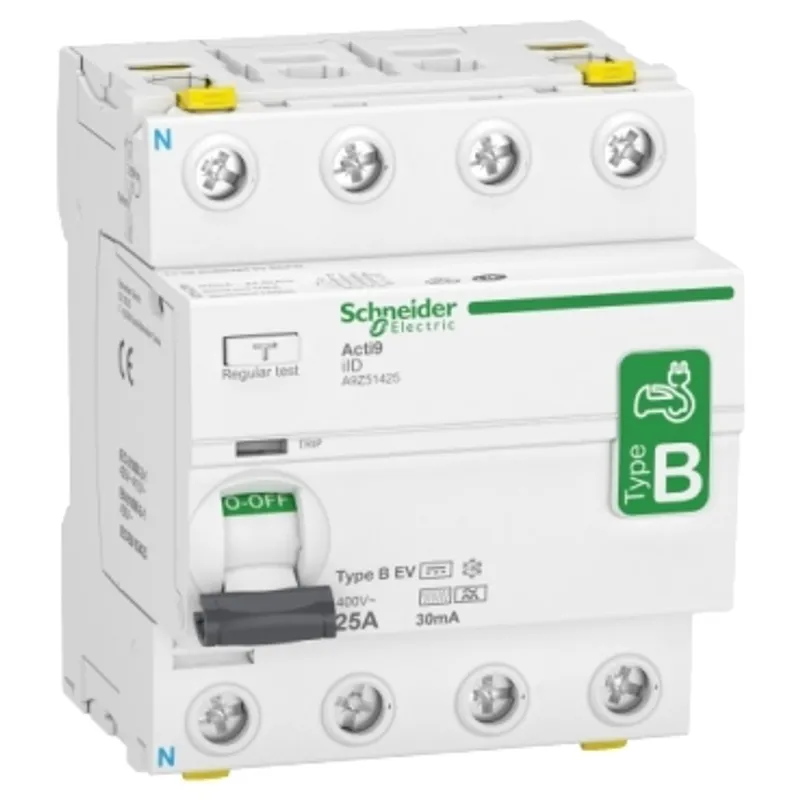

Schneider Electric A9Z51425
Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, B-EV (Electric Vehicle) type, 30mA, double terminal
- MPN
- A9Z51425
- Category
- Acti9 iID
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric A9Z51425?
Schneider Electric Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, B-EV (Electric Vehicle) type, 30mA, double terminal, manufacturer part number A9Z51425. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | Acti9 |
| Product name | Acti9 iID |
| Product or component type | Residual current circuit breaker (RCCB) |
| Device short name | iID |
| Device application | Electrical Vehicle charger |
| Poles description | 4P |
| Neutral position | Left |
| [In] rated current | 25 A |
| Network type | AC |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type B-EV (Electric Vehicle) |
| Quality labels | VDE, NF |
| Device location in system | Outgoer, Group incomer |
| Network frequency | 50 Hz |
| [Ue] rated operational voltage | 400 V AC 50 Hz |
| Residual current tripping technology | Voltage independent |
| Rated breaking and making capacity | Idm 1500 A, Im 1500 A |
| Rated conditional short-circuit current | 10 kA |
| [Ui] rated insulation voltage | 500 V |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | Trip indicator, ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Height | 88 mm |
| Width | 72 mm |
| Depth | 79 mm |
| Net weight | 415 g |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 15000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals | Double terminal front 1…35 mm² rigid, Double terminal front 1…25 mm² flexible, Double terminal front 1…25 mm² flexible with ferrule, Double terminal back 1…25 mm² rigid, Double terminal back 1…16 mm² flexible, Double terminal back 1…16 mm² flexible with ferrule |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
| Standards | IEC 61008-2-1, IEC/EN 62423, EN 61008-2-1 |
| Product certifications | CCC, KC |
| IP degree of protection | IP20 conforming to IEC 60529, IP40 (modular enclosure) conforming to IEC 60529 |
| IK degree of protection | IK05 |
| Pollution degree | 3 |
| Overvoltage category | IV |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 3 kA conforming to EN/IEC 61008-1 |
| Operating altitude | 0...2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
Packaging
| Package 1 | 1 PCE, 10.000 cm × 7.500 cm × 8.200 cm (L × W × H), 449.000 g |
| Package 2 | 27 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 12.588 kg |
