Schneider Electric A9A26970

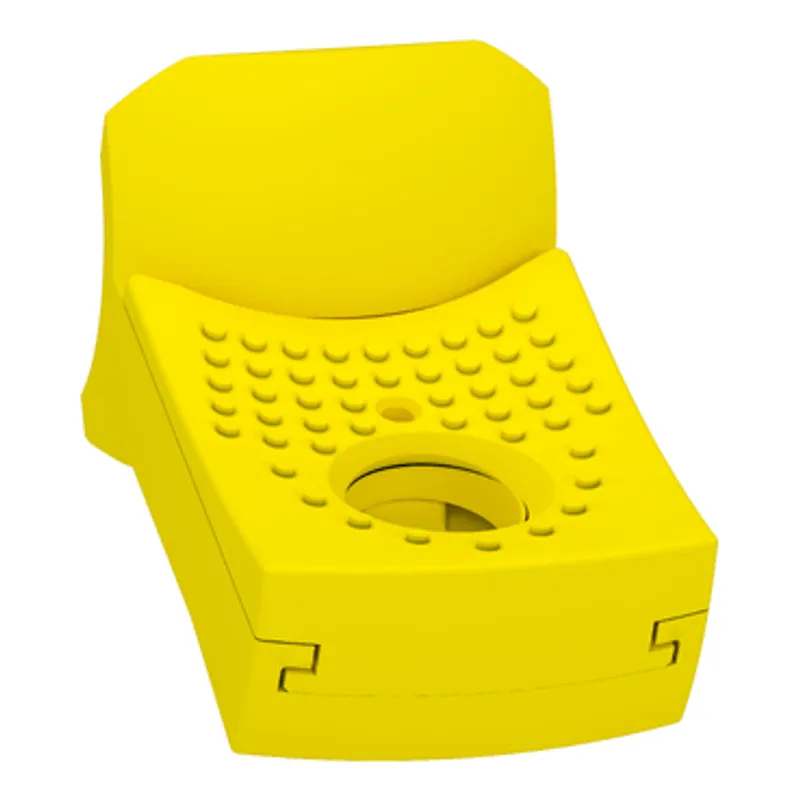

Padlocking device, Acti9, set of 10
- MPN
- A9A26970
- EAN
- 3606480088131
- Category
- Acti9 iC60
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric A9A26970?
This Acti9 product is a padlocking device is used to padlock in open or closed position. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. The padlock diameter is from 3mm to 6mm. The sealable maximum diameter is 1.2mm. The locking in ON position does not prevent tripping of the breaker in the event of faults. This yellow padlocking accessory is mounted on the front of the product to be protected. This mounting device is suitable for iC60, iC60 + Vigi, iID, iDPN Vigi, iSW-NA, iSW Acti9. This product is suitable with IEC/EN 60947-2 standard compliant disconnection.
Specifications
Specifications
| range of product | Acti9 |
| Product or component type | Padlocking device |
| Accessory / separate part category | Locking accessory |
| Quantity per set | Set of 10 |
| Keylock destination | Toggle |
| Locking options description | Sealable, Keylock in OFF or ON position |
| Padlock diameter | 3…6 mm |
| Range compatibility | Acti9 - iC60, Acti9 - iID, Acti9 - iSW -, Acti9 - Vigi iC60 -, Acti9 - iID K -, Acti9 - iDPN Vigi, Acti9 - Reflex iC60, Acti9 - RCA iC60 -, Acti9 - ARA iC60 -, Acti9 - iSW-NA -, Acti9 - iK60N -, Acti9 - iC40 -, Acti9 - iDPN H VigiARC -, Acti9 - iDPN N VigiARC - |
Packaging
| Package 1 | 1 PCE, 18.000 cm × 11.500 cm × 2.000 cm (L × W × H), 42.000 g |
| Package 2 | 60 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.880 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
A9A26970: frequently asked questions
When can A9A26970 be shipped?
A9A26970 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up A9A26970 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for A9A26970 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for A9A26970, subject to availability and destination.
