Schneider Electric 33664

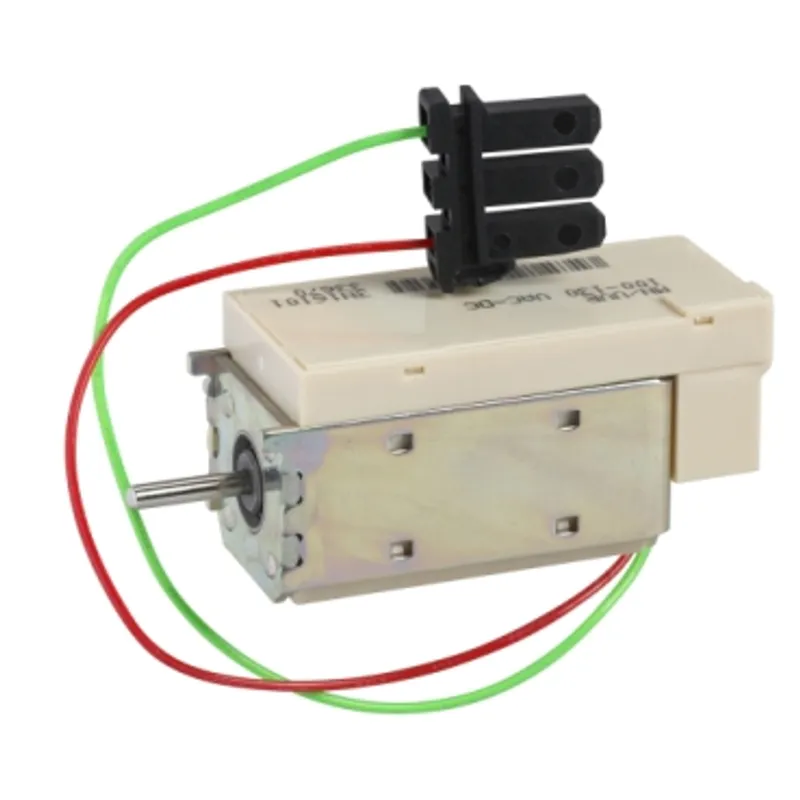

Standard opening voltage release MX, ComPacT NS630b/NS3200, fixed, 380/480VAC, spare part
- MPN
- 33664
- EAN
- 3303430336648
- Category
- ComPacT NS new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric 33664?
This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 380VAC to 480VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.
Specifications
Specifications
| Range | ComPacT |
| Range of product | ComPacT NS630b...1600 new generation, ComPacT NS1600b...3200 new generation |
| Device short name | MX |
| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Opening coil, Instantaneous voltage release |
| Control type | Standard |
| [Uc] control circuit voltage | 380...480 V AC 50/60 Hz |
| Circuit breaker mounting mode | Fixed |
| Range compatibility | ComPact ComPact NS630b...1600, ComPact ComPact NS1600b...3200 |
| Operating threshold | 0.7...1.1 x Un opening |
| Response time | 50 ms +/- 10 % for Compact NS630b...1600, 50 ms +/- 10 % for Compact NS1600b...3200, 55 ms +/- 10 % for MasterPact NT, 70 ms +/- 10 % for MasterPact NW |
| Supply holding power | 4.5 VA |
| Accessory / separate part category | Spare part for MasterPact NT, Spare part for MasterPact NW, Spare part for ComPacT NS630b...1600 new generation, Spare part for ComPacT NS1600b...3200 new generation |
Packaging
| Package 1 | 1 PCE, 8.300 cm × 6.000 cm × 3.500 cm (L × W × H), 148.200 g |
| Package 2 | 10 BB1, 18.000 cm × 13.000 cm × 9.000 cm (L × W × H), 1.533 kg |
| Package 3 | 120 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 18.184 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
33664: frequently asked questions
When can 33664 be shipped?
33664 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 33664 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 33664 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 33664, subject to availability and destination.
