Schneider Electric 31333

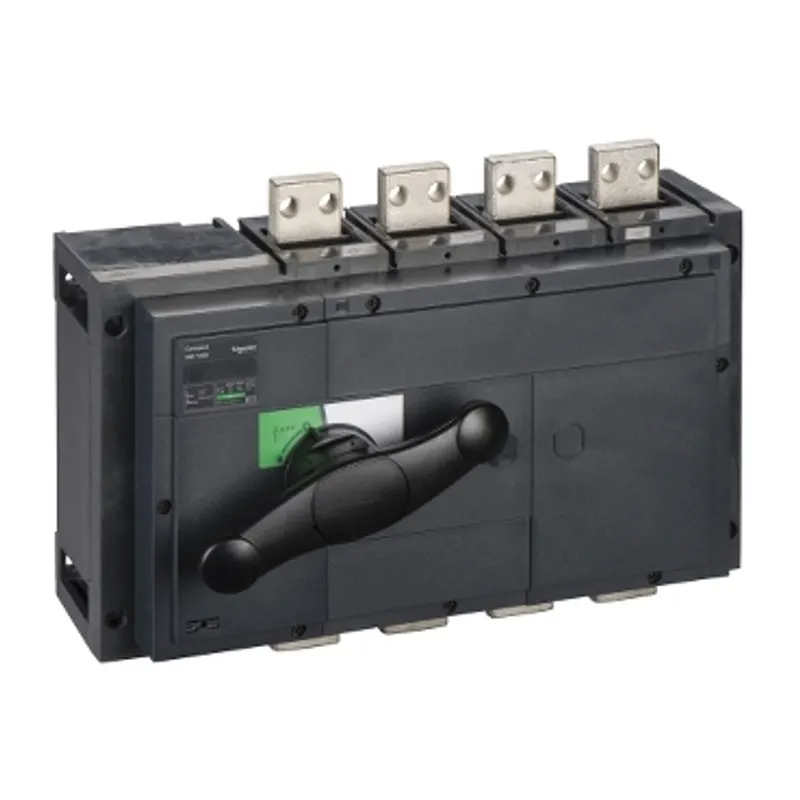

Switch disconnector, Compact INS1000, 1000A, standard version with black rotary handle, 4 poles
- MPN
- 31333
- EAN
- 3303430313335
- Category
- ComPact INS/INV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric 31333?
This Compact INS1000 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 1000A at 415VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS1000 is a class II insulation level front-face device as per IEC 60664 standard.
Specifications
Specifications
| Range | ComPact |
| Product name | ComPacT INS |
| Product or component type | Switch disconnector |
| Poles description | 4P |
| Network type | AC, DC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | AC-21A: 1000 A AC 50/60 Hz 220/240 V, AC-21A: 1000 A AC 50/60 Hz 380/415 V, AC-21A: 1000 A AC 50/60 Hz 440/480 V, AC-21A: 1000 A AC 50/60 Hz 480 V NEMA, AC-21A: 1000 A AC 50/60 Hz 500/525 V, AC-21A: 1000 A AC 50/60 Hz 660/690 V, AC-22A: 1000 A AC 50/60 Hz 220/240 V, AC-22A: 1000 A AC 50/60 Hz 380/415 V, AC-22A: 1000 A AC 50/60 Hz 440/480 V, AC-22A: 1000 A AC 50/60 Hz 480 V NEMA, AC-22A: 1000 A AC 50/60 Hz 500/525 V, AC-22A: 1000 A AC 50/60 Hz 660/690 V, AC-23A: 1000 A AC 50/60 Hz 220/240 V, AC-23A: 1000 A AC 50/60 Hz 380/415 V, AC-23A: 1000 A AC 50/60 Hz 440/480 V, AC-23A: 1000 A AC 50/60 Hz 480 V NEMA, AC-23A: 1000 A AC 50/60 Hz 500/525 V, AC-23A: 1000 A AC 50/60 Hz 660/690 V, DC-21A: 1000 A DC 125 V 2 poles in series, DC-22A: 1000 A DC 125 V 2 poles in series, DC-23A: 1000 A DC 125 V 2 poles in series, DC-21A: 1000 A DC 250 V 4 poles in series, DC-22A: 1000 A DC 250 V 4 poles in series, DC-23A: 1000 A DC 250 V 4 poles in series |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 12 kV |
| [Ith] conventional free air thermal current | 1000 A at 60 °C |
| [Icm] rated short-circuit making capacity | 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz, 75 kA switch-disconnector alone 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz, 250 V DC |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Visible break | No |
| Pollution degree | 3 |
| Control type | Direct front rotary handle |
| Handle colour | Black |
| Mounting mode | Fixed |
| Mounting support | Rail, Plate |
| Upside connection | Front |
| Downside connection | Front |
| Maximum power | AC-23: 315 kW at 220/240 V AC 50/60 Hz, AC-23: 560 kW at 380/400 V AC 50/60 Hz, AC-23: 630 kW at 415 V AC 50/60 Hz, AC-23: 710 kW at 500/525 V AC 50/60 Hz, AC-23: 900 kW at 660/690 V AC 50/60 Hz |
| Rated duty | Uninterrupted |
| Intermittent duty class | Class 120 - 60 % |
| [Icw] rated short-time withstand current | 10 kA during 20 s conforming to IEC 60947-3, 20 kA during 3 s conforming to IEC 60947-3, 35 kA during 1 s conforming to IEC 60947-3, 42 kA during 0.8 s conforming to IEC 60947-3, 50 kA during 0.5 s conforming to IEC 60947-3, 8 kA during 30 s conforming to IEC 60947-3 |
| Mechanical durability | 3000 cycles |
| Electrical durability | AC-21A: 500 cycles 220/240 V AC 50/60 Hz, AC-21A: 500 cycles 380/415 V AC 50/60 Hz, AC-21A: 500 cycles 440/480 V AC 50/60 Hz, AC-21A: 500 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-21A: 500 cycles 500/525 V AC 50/60 Hz, AC-21A: 500 cycles 660/690 V AC 50/60 Hz, AC-22A: 500 cycles 220/240 V AC 50/60 Hz, AC-22A: 500 cycles 380/415 V AC 50/60 Hz, AC-22A: 500 cycles 440/480 V AC 50/60 Hz, AC-22A: 500 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-22A: 500 cycles 500/525 V AC 50/60 Hz, AC-22A: 500 cycles 660/690 V AC 50/60 Hz, AC-23A: 500 cycles 220/240 V AC 50/60 Hz, AC-23A: 500 cycles 380/415 V AC 50/60 Hz, AC-23A: 500 cycles 440/480 V AC 50/60 Hz, AC-23A: 500 cycles 480 V AC 50/60 Hz conforming to NEMA, AC-23A: 500 cycles 500/525 V AC 50/60 Hz, AC-23A: 500 cycles 660/690 V AC 50/60 Hz, DC-21A: 500 cycles 125 V DC 2 poles in series, DC-22A: 500 cycles 125 V DC 2 poles in series, DC-23A: 500 cycles 125 V DC 2 poles in series, DC-21A: 500 cycles 250 V DC 4 poles in series, DC-22A: 500 cycles 250 V DC 4 poles in series, DC-23A: 500 cycles 250 V DC 4 poles in series |
| Connection pitch | 70 mm |
| Height | 300 mm |
| Width | 410 mm |
| Depth | 146.5 mm |
| Net weight | 18 kg |
| Standards | IEC 60947-3, IEC 60947-1 |
| Product certifications | KEMA-KEUR |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
Packaging
| Package 1 | 1 PCE, 43.000 cm × 33.500 cm × 21.000 cm (L × W × H), 18.600 kg |
