Schneider Electric 31109

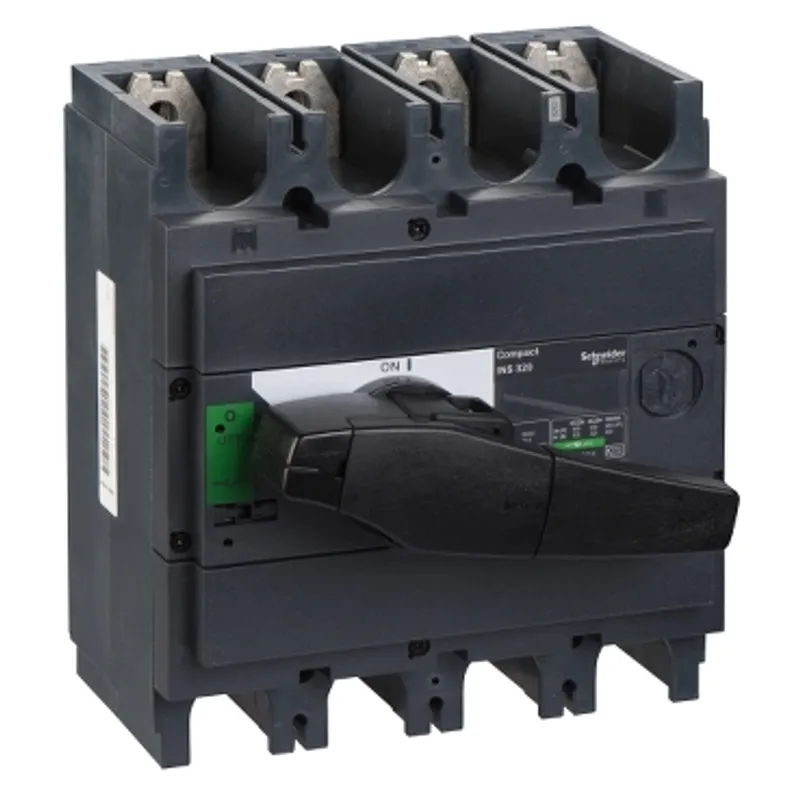

Switch disconnector, Compact INS320, 320A, standard version with black rotary handle, 4 poles

MPN
31109
EAN
3303430311096
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 31109?

This Compact INS320 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 320A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS320 is a class II insulation level front-face device as per IEC 60664 standard.

Specifications

Specifications

RangeComPact
Product or component typeSwitch disconnector
Product nameComPacT INS
Poles description4P
Network typeAC, DC
Network frequency50/60 Hz
[Ie] rated operational currentAC-22A: 320 A AC 50/60 Hz 220/240 V, AC-22A: 320 A AC 50/60 Hz 380/415 V, AC-22A: 320 A AC 50/60 Hz 440/480 V, AC-22A: 320 A AC 50/60 Hz 480 V NEMA, AC-22A: 320 A AC 50/60 Hz 500/525 V, AC-22A: 320 A AC 50/60 Hz 660/690 V, AC-23A: 320 A AC 50/60 Hz 220/240 V, AC-23A: 320 A AC 50/60 Hz 380/415 V, AC-23A: 320 A AC 50/60 Hz 440/480 V, AC-23A: 320 A AC 50/60 Hz 480 V NEMA, AC-23A: 320 A AC 50/60 Hz 500/525 V, AC-23A: 320 A AC 50/60 Hz 660/690 V, DC-22A: 320 A DC 125 V 2 poles in series, DC-22A: 320 A DC 250 V 4 poles in series, DC-23A: 320 A DC 125 V 2 poles in series, DC-23A: 320 A DC 250 V 4 poles in series
[Ui] rated insulation voltage800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kV, 8 kV conforming to IEC 60947-3
[Ith] conventional free air thermal current320 A at 60 °C
[Icm] rated short-circuit making capacity330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz, 50 kA switch-disconnector alone 690 V AC at 50/60 Hz
[Ue] rated operational voltage250 V DC, 690 V AC 50/60 Hz
Suitability for isolationYes
Contact position indicatorYes
Visible breakNo
Pollution degree3
Control typeDirect front rotary handle
Handle colourBlack
Mounting modeFixed
Mounting supportPlate, Rail
Upside connectionFront
Downside connectionFront
Maximum powerAC-23: 160 kW at 380/415 V AC 50/60 Hz, AC-23: 185 kW at 440 V AC 50/60 Hz, AC-23: 185 kW at 480 V AC 50/60 Hz (NEMA), AC-23: 220 kW at 500/525 V AC 50/60 Hz, AC-23: 250 kW at 660/690 V AC 50/60 Hz, AC-23: 90 kW at 220/240 V AC 50/60 Hz, AC-23: 90 kW at 230 V AC 50/60 Hz (NEMA)
Rated dutyUninterrupted
[Icw] rated short-time withstand current11.5 kA during 3 s conforming to IEC 60947-3, 20 kA during 1 s conforming to IEC 60947-3, 4 kA during 30 s conforming to IEC 60947-3, 4.9 kA during 20 s conforming to IEC 60947-3
Mechanical durability10000 cycles
Electrical durabilityAC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 690 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 690 V AC 50/60 Hz, DC-23A: 1000 cycles 250 V DC
Connection pitch45 mm
Height205 mm
Width185 mm
Depth120 mm
Net weight4.9 kg
StandardsIEC 60947-3, IEC 60947-1
Product certificationsCCC, KEMA-KEUR
IP degree of protectionIP40 conforming to IEC 60529
IK degree of protectionIK07 conforming to EN 50102
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-50…85 °C

Packaging

Package 11 PCE, 22.400 cm × 19.400 cm × 18.800 cm (L × W × H), 6.000 kg
Package 22 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 12.441 kg
