Thorsman - nail clip - TC 8...12 mm - 2/45/34 - white - set of 100
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cabling and fixing for demanding professionals |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0 kg |
Shipping & availability
When can 2041283 be shipped?
2041283 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2041283 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2041283 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2041283, subject to availability and destination.

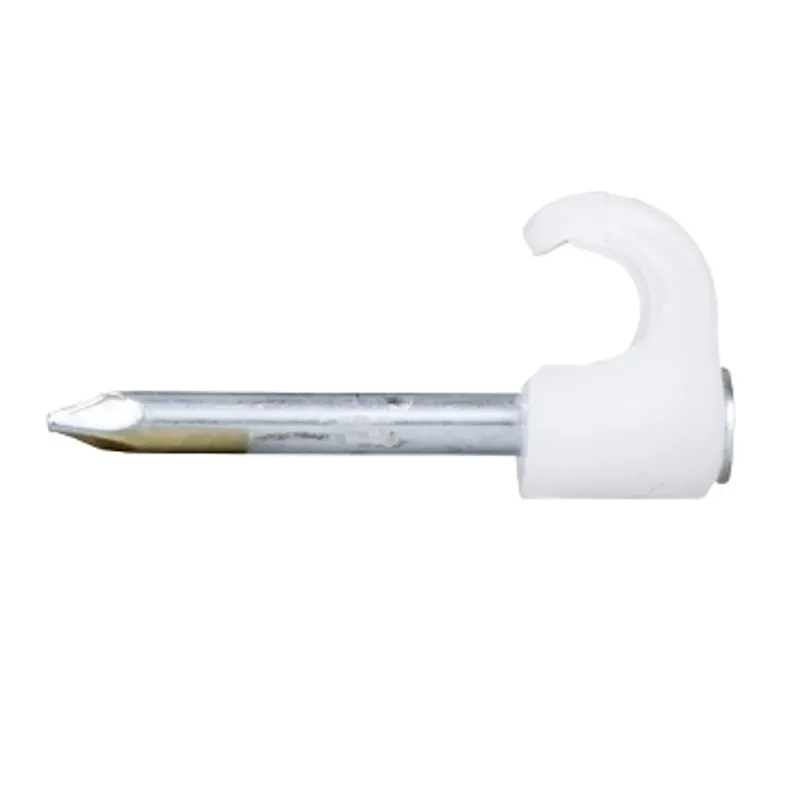

This Thorsman plastic clip 2041283 (set of 100 pieces) includes a nail It is intended for the installation of round cable 8-12 mm, mainly for indoor use Color: white Material: clip PP (polypropylene), nail hardened and electroplated steelMake a hole in single plasterboard sheets with an awl. The start of a hole is sufficient in double plasterboard sheets Mounting instructions: in wood and compressed board: Nail in. In concrete and low density materials, brick, etc: Use TCP clip plugs. Hammer the clip plug into lowdensity concrete without predrilling. Not for thick nails In plasterboard: Use TCP clip plugs. Make a hole in single plasterboard sheets with an awl. The start of a hole is sufficient in double plasterboard sheets The Thorsman TC clip range includes a wide range of clips in various designs and dimensions, colours, nails and packages, intended for the installation of round and flat cables The packages of the clips are provided with colour pictures of the correct product
Specifications
Specifications
| Range | Thorsman |
| Range of product | Thorsman |
| Product or component type | Nail clip |
| Device short name | TC |
| Device application | Installation of round cable |
| Cable type | Round cable 8...12 mm |
| Type of installation | Indoor |
| Provided equipment | Nail |
| Nail diameter | 2 mm |
| Length | 45 mm |
| Embedding depth | 34 mm |
| Colour tint | White (NCS 0500) |
| Material | Clip: PP (polypropylene), Nail: electroplated hardened steel |
| Atmospheric-corrosivity category | C2 |
| Ambient air temperature for operation | -40…80 °C |
| Environmental characteristic | Impact resistant, UV resistant |
| Quantity per set | Set of 100 |
| Net weight | 0.00165 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 1.500 cm |
| Package 1 Length | 4.500 cm |
| Package 1 Weight | 1.800 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 5.500 cm |
| Package 2 Width | 8.000 cm |
| Package 2 Length | 12.000 cm |
| Package 2 Weight | 181.700 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 900 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 1.895 kg |
| Warranty | 18 months |
