Schneider Electric 140NOM25200

DIO head-end adaptor - Modicon Quantum - 1 Modbus Plus fiber optic single copper

MPN
140NOM25200
EAN
3595861135321
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original 140NOM25200 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 140NOM25200?

Schneider Electric 140NOM25200 — DIO head-end adaptor - Modicon Quantum - 1 Modbus Plus fiber optic single copper. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productModicon Quantum automation platform
Product or component typeDIO head-end adaptor

Complementary

Number of port1 Modbus Plus fiber optic single copper; 1 Modbus RS232 twisted pair
Transmission rate1 Mbit/s
Electrical connection1 connector RJ45; 2 connectors TX/RX
I/O words30 I/32 O
ChecksRAM; RAM address; Processor; Checksum
Power dissipation in W4 W
Minimum pulse width distortion/jitter5 ns
Wavelength820 nm
Power loss budget11 dB 62.5/125 µm; 16.5 dB 100/140 µm; 6.5 dB 50/125 µm
Optical transmission-16…-9 dBm 100/140 µm; -19.8…-12.8 dBm 50/125 µm; -3.5…110.5 dBm 62.5/125 µm
Rise/fall time20 ns
Dynamic range20 dB
Detected silence-36 dBm
Sensitivity scale> 30 dBm
Bus current requirement750 mA

Environment

Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2; 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80…2000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m
StandardsUL 508
Product certificationsCSA Class 1 Division 2; RINA; GL; RMRS; C-Tick; GOST; DNV

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

140NOM25200: frequently asked questions

Can I still buy the 140NOM25200 now that it is discontinued?

Yes. Schneider Electric has discontinued the 140NOM25200, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 140NOM25200 be shipped?

140NOM25200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 140NOM25200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 140NOM25200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 140NOM25200, subject to availability and destination.

More Schneider Electric parts

Schneider Electric 140NOM21100 – DIO head-end adaptor Modicon Quantum - 1 Modbus+RS485 twisted pair single copper
Schneider Electric
140NOM21100

DIO head-end adaptor Modicon Quantum - 1 Modbus+RS485 twisted pair single copper

Schneider Electric 140NOM21100C – Modicon Quantum DIO head-end adaptor - twisted pair cable medium
Schneider Electric
140NOM21100C

Modicon Quantum DIO head-end adaptor - twisted pair cable medium

Schneider Electric 140NOM21200 – DIO head-end adaptor Modicon Quantum - 2 Modbus+RS485 twisted pair redundant cu
Schneider Electric
140NOM21200

DIO head-end adaptor Modicon Quantum - 2 Modbus+RS485 twisted pair redundant cu

Schneider Electric 140NOM21200C – DIO head-end adaptor Modicon Quantum - 2 Modbus+RS485 twisted pair redundant cu
Schneider Electric
140NOM21200C

DIO head-end adaptor Modicon Quantum - 2 Modbus+RS485 twisted pair redundant cu

Schneider Electric 140NOM25200C – Modicon Quantum DIO head-end adaptor - fibre optic cable medium
Schneider Electric
140NOM25200C

Modicon Quantum DIO head-end adaptor - fibre optic cable medium

Schneider Electric 140NRP31200 – Ethernet fibre converter MM/LC 2CH - 100 MB
Schneider Electric
140NRP31200

Ethernet fibre converter MM/LC 2CH - 100 MB

Schneider Electric 140NRP31200C – Ethernet fibre converter MM/LC 2CH - 100 MB - coated
Schneider Electric
140NRP31200C

Ethernet fibre converter MM/LC 2CH - 100 MB - coated

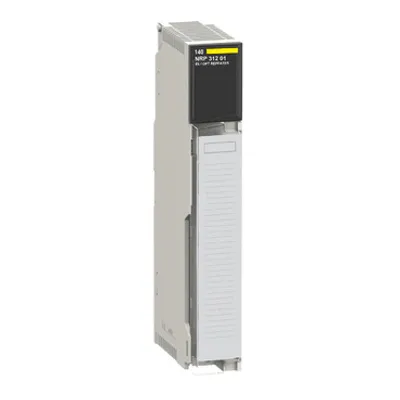

Schneider Electric 140NRP31201 – Ethernet fibre converter SM/LC 2CH - 100 MB
