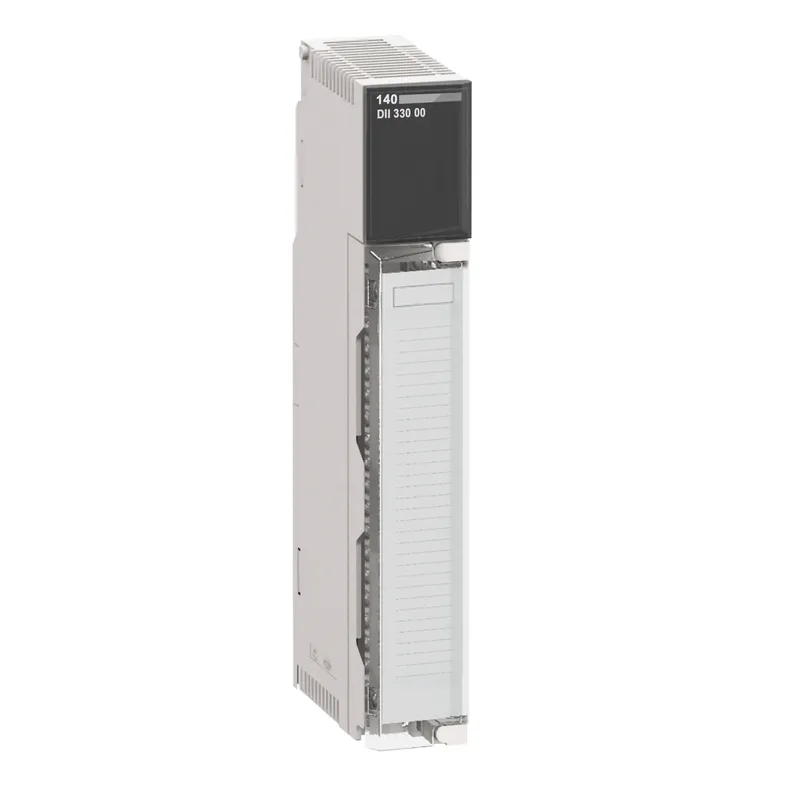

Schneider Electric 140DII33000C – Modicon Quantum intrinsically safe current input module - 8 I - 1.2 mA…2.1 mA

MPN: 140DII33000C · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original 140DII33000C (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Quantum
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3595860026323
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the 140DII33000C now that it is discontinued?

Yes. Schneider Electric has discontinued the 140DII33000C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 140DII33000C be shipped?

140DII33000C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 140DII33000C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 140DII33000C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 140DII33000C, subject to availability and destination.

Schneider Electric 140DII33000C — Modicon Quantum intrinsically safe current input module - 8 I - 1.2 mA…2.1 mA. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Quantum automation platform
Product or component type	Intrinsically safe discrete input module
Software designation	ProWORX; Unity Pro; Concept
Software version	V2.2 and above

Complementary

Product destination	In conjunction with products for zone 20, 21 or 22
Discrete input number	8
No load voltage	8 V
Short-circuit current	8 mA
Switching hysteresis	0.2 mA
Current state 0 guaranteed	<= 1.2 mA
Current state 1 guaranteed	>= 2.1 mA
Switching frequency	100 Hz
Response time	1 ms resistive at state 0 to state 1; 1 ms resistive at state 1 to state 0
Internal resistance	2.5 kOhm
Protection type	Internal by fuse; Resistor limited
Isolation between channels and bus	2500 V for 1 minute DC; 1780 V 47...63 Hz AC
Fault type	Resistor limited
Hot swapping fallback	Not allowed per intrinsic safety standards
Power dissipation in W	2 W
Marking	CE; II1 G/D-EEx ia IIC
Bus current requirement	0.4 A
Module format	Standard
Net weight	0.3 kg

Environment

Protective treatment	Conformal coating Humiseal 1A33
Standards	UL 508; EN 50020; EN 50014; EN 50039; EN 50281-1-1; CSA C22.2 No 142; Directive ATEX 94/9/EC; EN 50284
Dust zone	Outside zone
Product certifications	FM Class 1 Division 2
Resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2; 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields	10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
