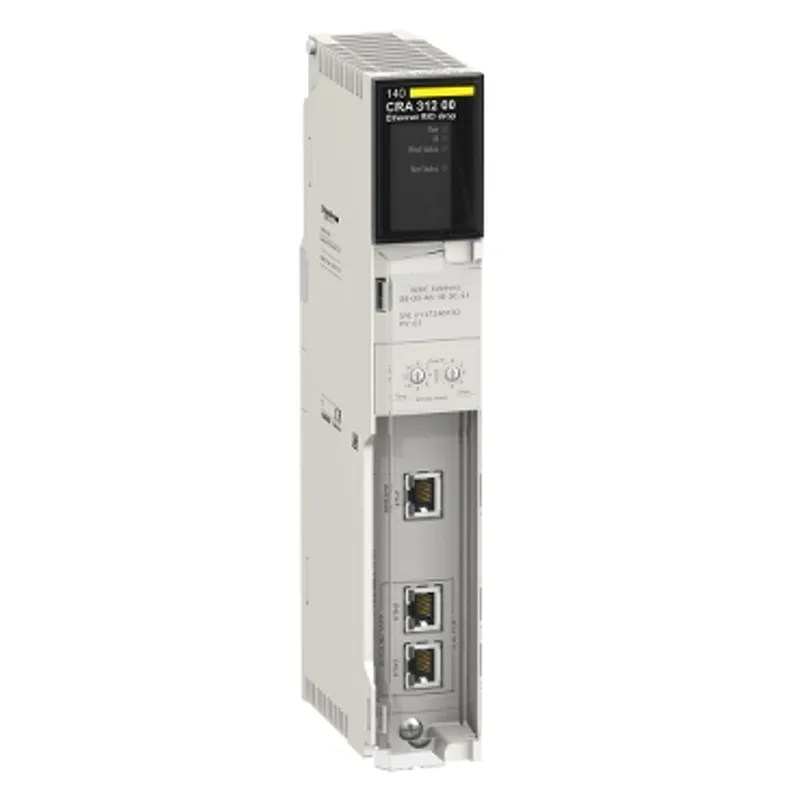

Schneider Electric 140CRA31200

Quantum RIO Drop E/IP 1CH

MPN
140CRA31200
EAN
3595864117201
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 140CRA31200?

This product is part of the Modicon Quantum range, an offer of Programmable Automation Controllers (PAC) for process applications, high availability, and safety solutions. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from the remote I/O head adaptor. The Quantum automation platform complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon Quantum provides a single environment for deploying I/O modules in automation architectures, reducing spare parts inventory, maintenance, and training costs. This Ethernet Remote Input Output (RIO) drop adaptor has 3 ports with an Ethernet backplane. Its casing provides IP20 protection of the electronics and offers 1397625 hours of MTBF. This module has a weight of 0.554kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and can be used in Merchant Navy and Hazardous areas applications. This adaptor is compatible with both Modicon M580 and Modicon Quantum platforms as Remote I/O drop. It is designed to be mounted on the Modicon Quantum backplanes. The Modicon M580 and Modicon Quantum range offer high performance, scalability, reliability, flexible communication, advanced control, user-friendly tools, and built-in safety features.

Specifications

Specifications

Range of productModicon Quantum
Product or component typeEthernet RIO drop adaptor
Number of port3
Integrated connection typeEthernet IP/Modbus TCP for service port, Ethernet IP/Modbus TCP for device network
Communication port protocolEthernet IP/Modbus TCP
Communication serviceThe input data are collected and published to the remote I/O head adaptor, Output modules are updated with the data received from remote I/O head adaptor
TopologyDaisy chain loop
Local signalling1 LED (green/red) for module status (Mod Status), 1 LED (green/red) for network communication status (Net Status), 1 LED (green) for RUN, 1 LED (red) for I/O
Product compatibility140CRP31200
Environmental characteristicStandard environment, Hazardous location class I division 2 conforming to EN/IEC 61131-1
Width167 mm
Height50 mm
Net weight0.554 kg
Product certificationsCE, UL 508, C-Tick
StandardsIEC 55011, CSA C22.2 No 142, IEC 61000-4-16
IP degree of protectionIP20 conforming to IEC 61131-2, IP20 conforming to IEC 60527
Overvoltage categoryClass I conforming to IEC 61131-2
Ambient air temperature for operation0…60 °C conforming to IEC 60068-2-2, 0…60 °C conforming to IEC 60068-2-2
Ambient air temperature for storage-40…85 °C conforming to IEC 60068-2-2, -40…85 °C conforming to IEC 60068-2-2
Vibration resistance3.5 mm constant amplitude (f= 0.5…8.4 Hz) conforming to IEC 61131-2, 1 gn constant acceleration (f= 8.4…150 Hz) conforming to IEC 61131-2
Operating altitude2000 m
Maximum altitude transport3000 m
Relative humidity93 % conforming to IEC 60068

Packaging

Package 11 PCE, 31.300 cm × 16.400 cm × 4.900 cm (L × W × H), 593.000 g
Package 27 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.650 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

140CRA31200: frequently asked questions

When can 140CRA31200 be shipped?

140CRA31200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 140CRA31200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 140CRA31200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 140CRA31200, subject to availability and destination.
