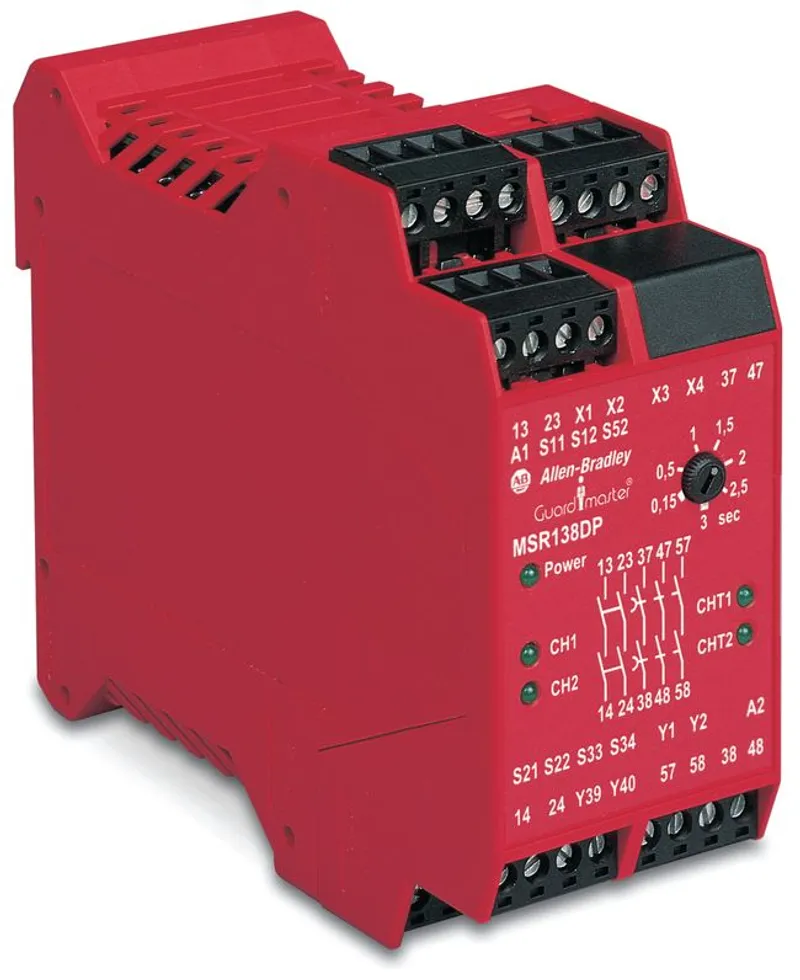

Allen-Bradley 440R-M23143S

Guardmaster MSR138DP Safety Relay

MPN
440R-M23143S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 440R-M23143S?

Allen-Bradley 440R-M23143S — Guardmaster MSR138DP Safety Relay. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Output2 N.O., 3 N.O Delayed
Power Supply24V AC/DC
CategoryInstantaneous: 4
Continuous safety output currentUL: B300, 5A @ 250V AC, 24V AC/DC, AC-15: 6A @ 250V AC, DC-13: 3A @ 24V AC/DC
Days of operation365 dbays
DC avgEN ISO 13849-1: Instantaneous: 90%
DCIEC 61508/IEC 62061: Instantaneous: 90%
Depth114.50 mm
Electrical life cycle100.000 (220V AC/4 A/880VA cosφ = 0.35), 500.000 (220V AC/1.7 A/375VA cosφ = 0.6), 1.000.000 (30V DC/2 A/60 W), 2.000.000 (10V DC/0.01 A/0.1 W)
Enclosure protectionIP40 (NEMA 1)
Enclosure type ratingIP40 (NEMA 1), DIN 0470
Evaluation inputsOne- and two-channel
Fuses outputExternal: 6 A slow blow or 10 A quick blow
Height99 mm
Hours of operation24 h
Input resistance, max135 ohm
Input simultaneityInfinite
Mission time20 year
ModelBasic device
Mounting35 mm DIN rail in enclosure to a min of IP54
MTTFdInstantaneous: 295
Number of outputs, safety related, delayed, semiconductors0
Number of outputs, safety related, delayed, with contact3
Number of outputs, safety related, undelayed, semiconductors0
Number of outputs, safety related, undelayed, with contact2
Number of outputs, signalling function, delayed, semiconductors0
Number of outputs, signalling function, delayed, with contact0
Number of outputs, signalling function, undelayed, semiconductors0
Number of outputs, signalling function, undelayed, with contact0
Operating temperature-5 °C
Operating voltage range24V AC/DC, 0.85 to 1.1 x rated voltage 50 60 Hz
PFHd0.00000000238
Pollution degree2
Power consumption4 W
Power ON delay1 ms
Rail mounting possibletrue
Rated control supply voltage at AC 50 Hz24 V
Rated control supply voltage at AC 60 Hz24 V
Rated control supply voltage at DC24 V
Rated impulse withstand voltage2500 V
Rated thermal current (Ith)7 A maximum in one current path (non-switching)
Recovery time100 ms
Relative humidityOperating: 90% RH
ResetManual monitored or automatic/manual
Response time15 ms
Safety inputs1 N.C., 2 N.C., light curtain
Shock10 G, 16 ms, 100 shocks
Suitable for monitoring of emergency-stop circuitstrue
Suitable for monitoring of magnetic switchestrue
Suitable for monitoring of optoelectronic protection equipmenttrue
Suitable for monitoring of position switchestrue
Suitable for monitoring of proximity switchestrue
Suitable for monitoring of tactile sensorstrue
Suitable for monitoring of valvestrue
Switching current, min10 mA
Switching voltage, min10 V
T cycle8/28800 (h/s)
Terminal protectionIP20, DIN 0470
Terminal typeSpring clA
Time delay range0.15 s
Type of electric connectionSpring clA connection
Vibration10...55 Hz, 0.35 mm
Voltage type for actuatingAC/DC
Weight350 g
Width45 mm
Wire size0.2 to 2.5 mm²
With detachable clampstrue
With feedback circuittrue
With start inputtrue

440R-M23143S: frequently asked questions

When can 440R-M23143S be shipped?

440R-M23143S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 440R-M23143S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 440R-M23143S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 440R-M23143S, subject to availability and destination.
