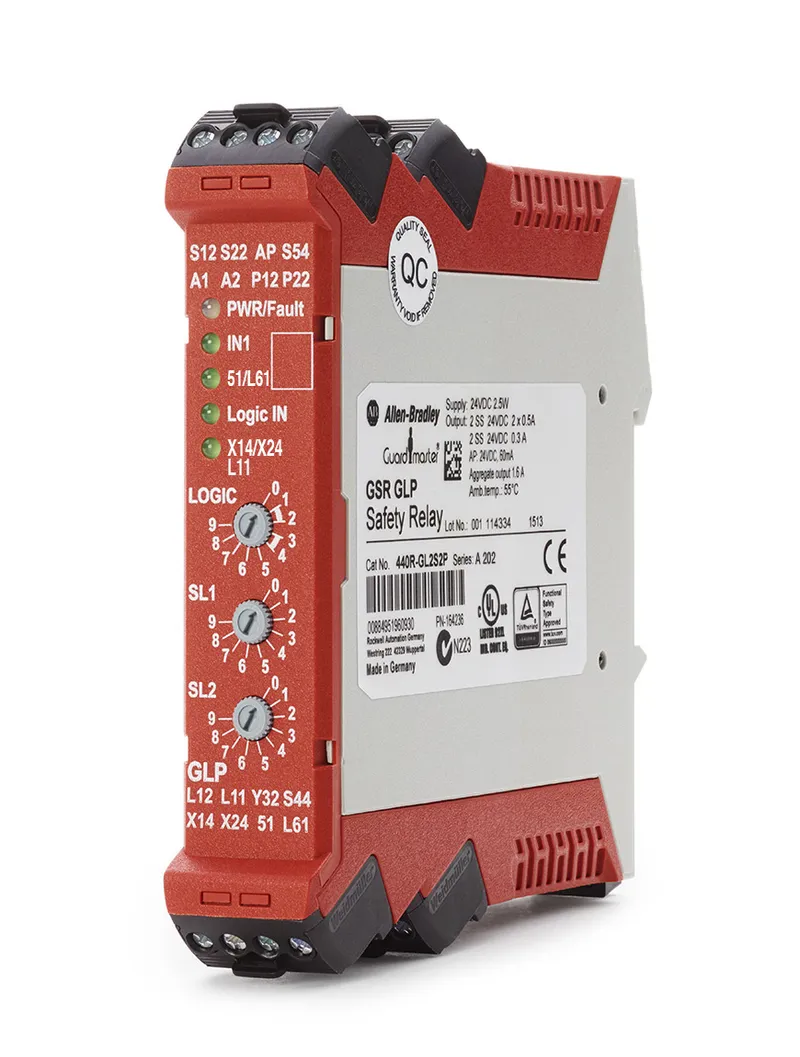

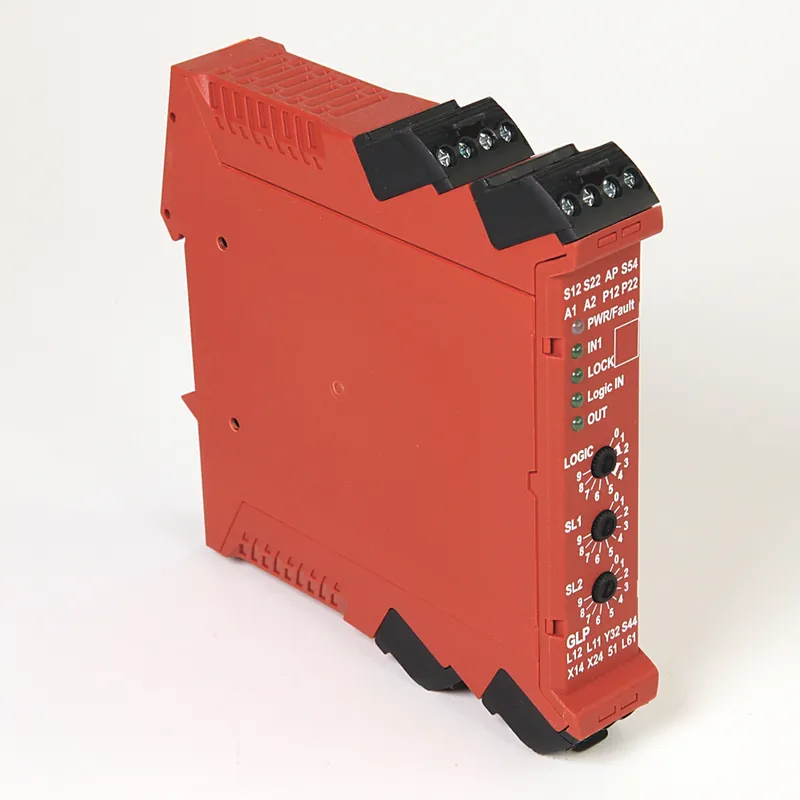

Allen-Bradley 440R-GL2S2P

Guardmaster GLP Safety Relay

MPN
440R-GL2S2P
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 440R-GL2S2P?

Allen-Bradley 440R-GL2S2P — Guardmaster GLP Safety Relay. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Output2 OSSD
Aggregate current of outputs per module, max1.8 A
CategoryUp to 3
Configurable logicLogic setting 1 - cat 1 stop, logic IN off, Logic setting 2 - cat 1 stop with logic IN, Logic setting 3 - safe limited slow speed, logic IN off, Logic setting 4 - safe limited slow speed with logic IN, Logic setting 5...8 - guard locking with delayed unlo
Continuous auxiliary output current50 mA
Continuous safety output current, max0.5 A
Days of operation365 dbays
DC avg. (EN ISO 13849-1)97.66 %
Depth113.6 mm
Enclosure protectionIP40 (NEMA 1)
Evaluation inputsOne- and two-channel
Function rotational speed monitoringtrue
Function standstill monitoringtrue
Hardware fault tolerance1
Height119.4 mm
Hours of operation24 h
Mission time20 year
Mode of operationHigh demand mode
MTTFd378
Number of outputs, safety related, delayed, semiconductor0/2
Number of outputs, safety related, delayed, with contact0
Number of outputs, safety related, undelayed, semiconductor2/4
Number of outputs, safety related, undelayed, with contact0
Number of outputs, signalling function, delayed, semiconductors0
Number of outputs, signalling function, delayed, with contact0
Number of outputs, signalling function, undelayed, semiconductors1
Number of outputs, signalling function, undelayed, with contact0
Operating temperature-5 °C
Operating voltage range20.4
Other outputSWS output
Performance level according to EN ISO 13849-1Level d
Performance levelUp to d
PFD4.13E-09
PFH7.19E-9
Power consumption2 W
Rated control supply voltage Us at DC24 V
Rated operating frequency4 khz
Relative humidity90%
Safe failure fraction98.95 %
Safety integrity level claim limit2
ShockShock proof, operating: 10 G, 16 ms
SIL according to IEC 615082
Suitable for safety functionstrue
Surge auxiliary output current700 mA
Surge auxillary output current duration, max5 ms
Surge safety output current duration, max5 ms
Surge safety output current, max1.5 A
T cycle8/28.8 (h/s)
Type of electric connectionScrew connection
Vibration10...55 Hz, 0.35 mm
Voltage type for actuatingDC
Width22.5 mm
Wire size0.2...2.5 mm² (24...14 AWG)
With detachable clampstrue
With feedback circuittrue

440R-GL2S2P: frequently asked questions

When can 440R-GL2S2P be shipped?

440R-GL2S2P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 440R-GL2S2P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 440R-GL2S2P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 440R-GL2S2P, subject to availability and destination.
