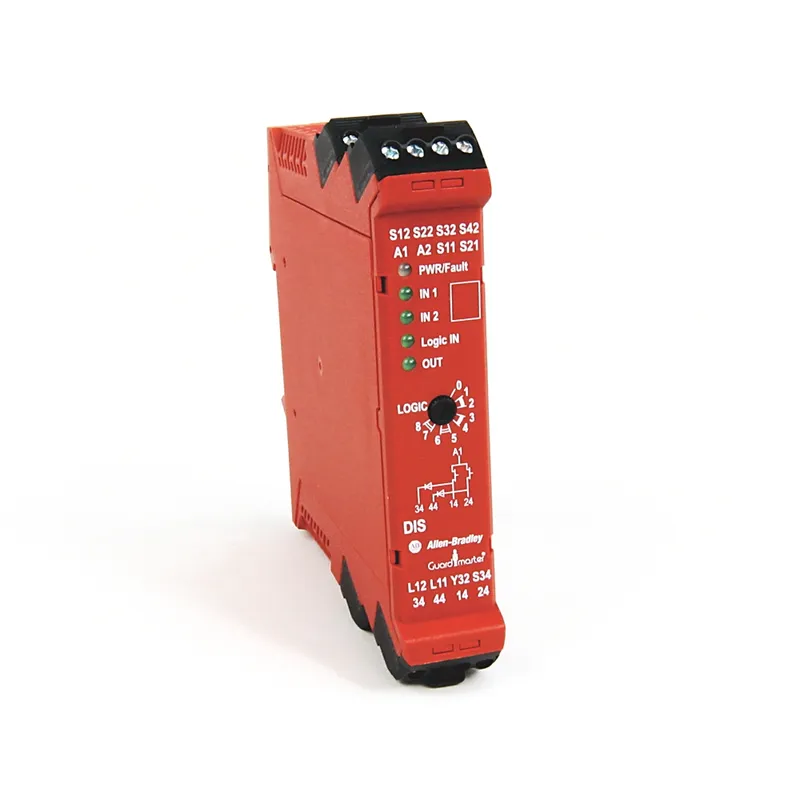

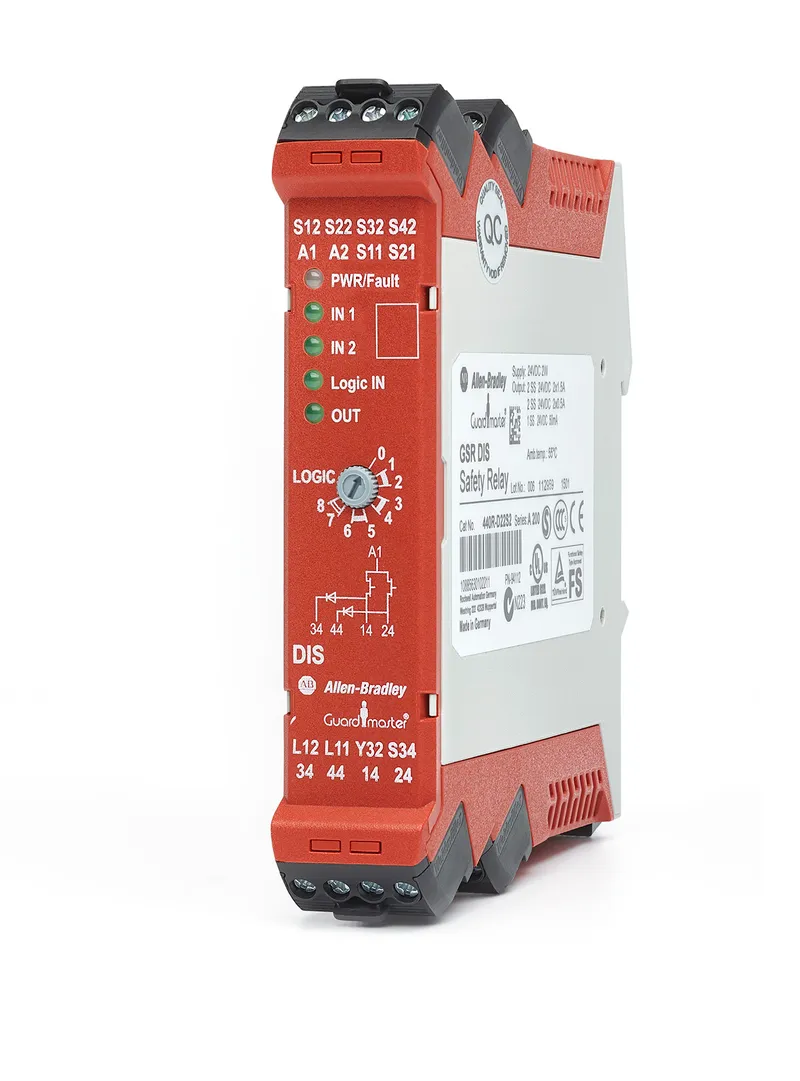

Allen-Bradley 440R-D22S2
Guardmaster Dual Input SS Safety Relay
- MPN
- 440R-D22S2
- Category
- 440R Guardmaster Safety Relays
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 440R-D22S2?
Allen-Bradley 440R-D22S2 — Guardmaster Dual Input SS Safety Relay. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Repair options available | No |
Specifications
| Output | 2 Solid State |
| Category | up to 4 |
| Configurable logic | AND/OR |
| Continuous auxiliary output current | 50 mA |
| Continuous safety output current | 14, 24: 1.5 A each, 34, 44: 0.5 A each |
| Days of operation | 365 dbays |
| DC avg. (EN ISO 13849-1) | 99 % |
| Depth | 113.6 mm |
| Enclosure protection | IP40 (NEMA 1) |
| Evaluation input | SWS input |
| Evaluation inputs | Other |
| Hardware fault tolerance | 1 |
| Height | 119.4 mm |
| Hours of operation | 24 h |
| Mission time | 20 year |
| Model | Basic device |
| Mode of operation | High demand mode |
| MTTFd | 484 year |
| Number of outputs, safety related, delayed, semiconductors | 0 |
| Number of outputs, safety related, delayed, with contact | 0 |
| Number of outputs, safety related, undelayed, semiconductors | 2 |
| Number of outputs, safety related, undelayed, with contact | 0 |
| Number of outputs, signalling function, delayed, semiconductors | 0 |
| Number of outputs, signalling function, delayed, with contact | 0 |
| Number of outputs, signalling function, undelayed, semiconductors | 1 |
| Number of outputs, signalling function, undelayed, with contact | 0 |
| Operating temperature | -5 °C |
| Operating voltage | 20.4 V |
| Other input | SWS input |
| Other output | SWS output |
| Performance level | up to e |
| PFHd | 4.39E-09 |
| Power consumption | 2 W |
| Rail mounting possible | true |
| Rated control supply voltage at AC 50 Hz | 0 V |
| Rated control supply voltage at AC 60 Hz | 0 V |
| Rated control supply voltage at DC | 24 V |
| Relative humidity | 90% |
| Release-delay | 0 s |
| Safe failure fraction | 99 % |
| Shock | Shock proof, operating: 10 G, 16 ms |
| Suitable for monitoring of emergency-stop circuits | true |
| Suitable for monitoring of magnetic switches | true |
| Suitable for monitoring of optoelectronic protection equipment | true |
| Suitable for monitoring of position switches | true |
| Suitable for monitoring of proximity switches | true |
| Suitable for monitoring of tactile sensors | true |
| Suitable for monitoring of valves | true |
| Surge auxiliary output current | 700 mA |
| Surge auxillary output current duration, max | 5 ms |
| T cycle | 8/28.8 (h/s) |
| Type of electric connection | Screw connection |
| Vibration | 10...55 Hz, 0.35 mm |
| Voltage type for actuating | DC |
| Width | 22.5 mm |
| Wire size | 0.2 to 2.5 mm² |
| With detachable clamps | true |
| With feedback circuit | true |
| With muting function | false |
| With start input | false |
No matching specifications
440R-D22S2: frequently asked questions
When can 440R-D22S2 be shipped?
440R-D22S2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 440R-D22S2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 440R-D22S2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 440R-D22S2, subject to availability and destination.
