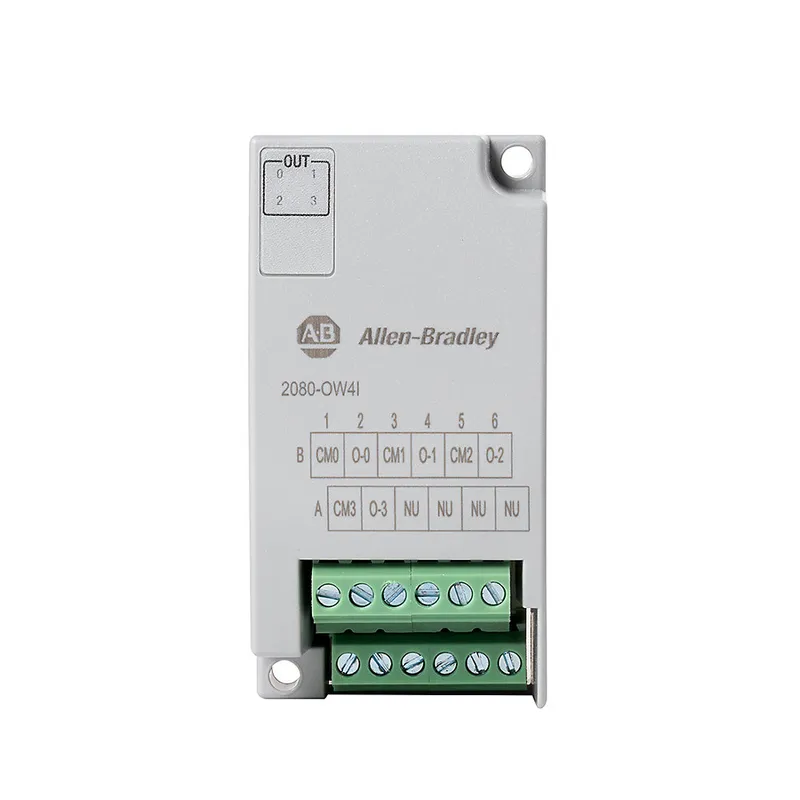

Allen-Bradley 2080-OW4I
Micro800 4 Point Relay Output
- MPN
- 2080-OW4I
- Category
- Micro800 Plug-in Modules
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 2080-OW4I?
2080 Micro800 System, 4-ch Relay Output Module
Specifications
Product
| Lifecycle | Active |
| Repair options available | No |
Specifications
| I/O Isolation | Isolated |
| I/O Status Indication | LED |
| Backplane power | 3.3V DC @ 38mA |
| Digital inputs configurable | false |
| Digital outputs configurable | false |
| Enclosure type rating | None (open-style) |
| Initial contact resistance of relay, max | 30 mohm |
| Inrush current | <120mA @ 3.3V, <120mA @ 24V |
| Insulation stripping length | 5 mm |
| Isolation voltage | 240V (continuous), reinforce insulation type, between output channels and output channels to backplane type tested for 60 s @ 1480V AC Outputs to Outputs, Outputs to Backplane |
| Minimum load per point | 10 mA |
| Mounting torque | 0.2 nm |
| Nonoperating temperature | 40 to 85 °C |
| North American temperature code | T4 |
| Number of I/O | 4-channel relay output |
| Operating temperature | -20 to 65 °C |
| Output current, inductive | 1.0 A steady state @ 5...28V DC @ 0.93A steady state @ 30V DC @ 0.5A steady state @ 48V DC @ 0.22A steady state @ 125V DC @ 2.0A steady state, 15 A make @ 125V AC, PF - cos θ = 0.4, 2.0 A steady state, 7.5 A make @ 240V AC, PF - cos θ = 0.4 |
| Output current, resistive | 2A @ 5...30V DC, 0.5A @ 48V DC, 0.22A @ 125V DC, 2A @ 125V AC, 2A @ 240V AC |
| Output delay time, max | OFF to ON: 10 ms, ON to OFF: 10 ms |
| Output power, resistive, max | 250VA for 125V AC resistive loads, 480VA for 240V AC resistive loads, 60VA for 30V DC resistive loads, 24VA for 48V DC resistive loads, 27.5VA for 125V DC resistive loads |
| Pilot duty rating | C300, R150 |
| Redundancy | false |
| Relative humidity | 5...95% noncondensing |
| Relay contact, break | 28VA @ 24V DC maximum volts, 0.35 power factor |
| Relay contact, continuous | 2.0A @ 120V AC maximum volts, 0.35 power factor |
| Relay contact, make | 7.5A @ 240V AC maximum volts, 0.35 power factor |
| Shock | Operating: 10 g |
| SIL according to IEC 61508 | None |
| Status indicator | 4 yellow |
| Surrounding air temperature, max | 65 °C |
| Terminal base screw torque, max | 0.19 Nm (1.7 in-lb.), using a 2.5 mm |
| Type of digital output | Relay |
| Type of electric connection | Screw connection |
| Type of output voltage | DC |
| Type of voltage (input voltage) | DC |
| Vibration | 2.0 G @ 10…500 Hz |
| Wire size | 0.05...1.31 mm2 (30...16 AWG) solid copper wire rated @ 90 °C (194 °F ) insulation maximum |
| Wire type | Copper |
| Wiring category | 2 - on signal ports, 2 - on power ports |
