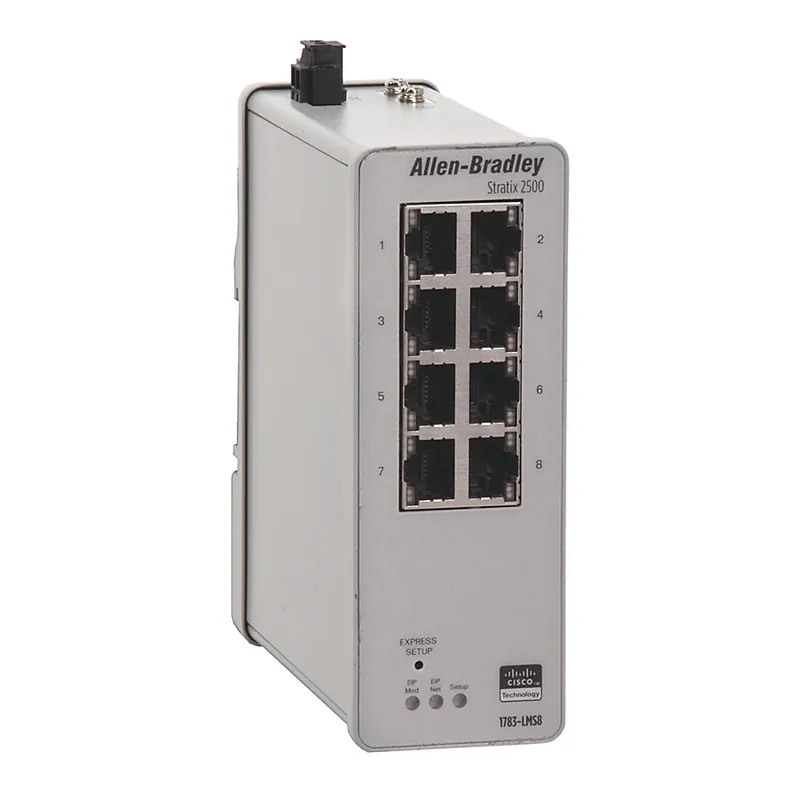

Allen-Bradley 1783-LMS8

Stratix2500 8Port Lightly Managed Switch

MPN: 1783-LMS8
Category: Stratix 2500 Lightly Managed Switches

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 1783-LMS8?

Allen-Bradley 1783-LMS8 — Stratix2500 8Port Lightly Managed Switch. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Network Media	Male RJ45 to Male RJ45
# of Copper Ports Required	8 or less
# of Fiber Ports Required	None
Stratix Ethernet Family	Stratix 2500
Ambient temperature, maximum	60 °C
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms)	10 V
Degree of protection (IP)	IP30
Delta connected motor power, max	T4
Depth	115 cm
EFT/B immunity for IEC 61000-4-4 at 100 kHz on DC power ports	±3
EFT/B immunity for IEC 61000-4-4 at 100 kHz on Ethernet ports	±3
Emissions, CISPR11 (IEC 61000-6-4)	IEC 61000-6-4
ESD immunity, IEC 61000-4-2, air discharges	8 kV
ESD immunity, IEC 61000-4-2, contact discharges	6 kV
Ethernet	true
Height	144.8 cm
Housing base material	Open-style
Layer 2	false
Layer 3	false
Manageable	true
Nominal position	T4
Number of ports 10/100 Mbps RJ45	8
Power dissipation	5.3 W
Power Input	12 - 24V DC, 0.4 - 0.2 A (SELV)
Pulse (digital) output	5.3 W
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz	3 kg/km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz	10 kg/km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing	5 %
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on communication ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports	±2
Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports	±1
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)	-40 °C
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)	-40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)	-40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)	-20 °C
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)	-20 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)	-20 °C
Temperature, surrounding air, maximum	60 °C
Torque, functional ground lug screw	0.51 nm
Torque, power terminal screw	0.19 nm
Total number of ports	8
Width	45.7 cm
Wire size, DC power connection, solid or stranded copper wire rated at 30 °C, or greater, above the surrounding air temperature	0.82 mm²
Wire size, ethernet connection	RJ45 connector according to IEC 60603-7, 2 or 4-pair category 5e minimum cable according to TIA 568-B.1 or category 5 cable according to ISO/IEC 24702
Wire size, ground connection, solid or stranded copper wire	3.3 mm²
Wiring category on communication ports	2
Wiring category on power ports	2
