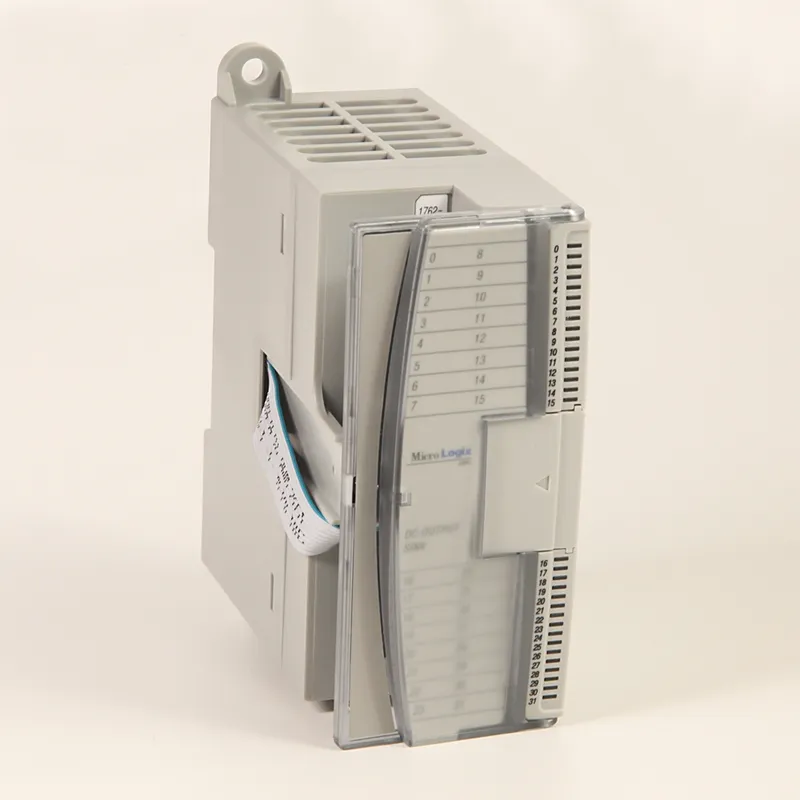

Allen-Bradley 1762-IR4

MicroLogix 4 Point Module

MPN
1762-IR4
EAN
611320861679
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 1762-IR4?

1762 MicroLogix 1200 System, MicroLogix 4 Point Module

Specifications

Product

LifecycleActive mature
Repair options availableNo

Specifications

ClassProgmable Logic Controller
Depth87
Height90
I/O IsolationIsolated
I/O Status IndicationLED
Module Interfacesresistance thermom
Number Of Channels4 point
Temperature Rating0…55 °C (32…131 °F)
Thermocouple Type4 Channel, RTD/Resistance Module
Accuracy driftAt 0...55 °C ±0.026 °C/°C (0.026 °F/°F) for Pt 385, ±0.007 Ω/°C (0.012 Ω/°F) for 150 Ω range, ±0.023 °C/°C (0.023 °F/°F) for Pt 3916, ±0.023 Ω/°C (0.041 Ω/°F) for 500 Ω range, ±0.012 °C/°C (0.012 °F/°F) for Ni, ±0.043 Ω/°C (0.077 Ω/°F) for 1,000 Ω range,
A/D converter typeDelta-Sigma
Analogue inputs configurablefalse
Analogue outputs configurablefalse
Bus current draw50mA @ 24V DC, maximum
Cable impedanceMaximum @ 25 Ω (operating with >25 Ω will reduce accuracy)
CalibrationThe module performs autocalibration on channel enable and on a configuration change between channels. You can also prog the module to calibrate every five minutes
Channel diagnosticsOver or under range or open circuit condition by bit reporting for analog inputs
Channel to channel isolation±10V DC
Common mode rejection>110 dB at 60 Hz (with 10 or 60 Hz filter)
Conducted immunityIEC 1000-4-6: 10 V/m, 80...1000 MHz, 80% Alitude modulation, +900 MHz keyed carrier
Depth87 mm
ESD immunityIEC1000-4-2: 4kV contact, 8kV air, 4kV indirect
Excitation current source0.5 mA and 1.0 mA selectable per channel
Fast transient burstIEC1000-4-4: 2kV @ 5kHz
Hazardous environment classClass I, Division 2, Hazardous Location, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213)
Heat dissipation1.5 total W (the W per point, plus the minimum W, with all points enabled)
Height90 mm
Input and output group to system isolation30V AC/30V DC working voltage type test: 500V AC or 707V DC @ 1min
Input channel configurationVia configuration software screen or the user prog (by writing a unique bit pattern into the module’s configuration file)
Input, currentfalse
Input impedance>10 MΩ
Input, resistance thermometerfalse
Input, resistortrue
Input signal, configurabletrue
Input, thermocouplefalse
Input type604 Ω Nickel-Iron 518
Input, voltagefalse
Module power LEDON: indicates power is applied
Non-linearity±0.05% (in % full scale)
Normal mode rejection ratio70 dB minimum @ 60 Hz with the 10 or 60 Hz filter selected
Number of analogue inputs4
Open-circuit detection time6 ms
Operating altitude2000 m
Operating humidity5...95% noncondensing
Operating temperature-20 °C
Output, currentfalse
Output signal configurablefalse
Output, voltagefalse
Overload at input terminalsMaximum @ ±35V DC continuous
Power supply distance rating6 (the module may not be more than 6 modules away from the system power supply)
Radiated and conducted emissionsEN50081-2: Class A
Radiated immunityIEC 61000-4-3: 10 V/m, 80...1000 MHz, 80% Alitude modulation, +900 MHz keyed carrier
Recommended cableBelden 8761 (shielded)
Repeatability±0.2 Ω for other resistances
ResolutionInput filter and configuration dependent
Shipping weight, approx260 g
ShockOperating: 30 G
Storage temperature-40 °C
Suitable for safety functionsfalse
Surge immunityIEC1000-4-5: 1kV galvanic gun
Type of electric connectionScrew connection
Typical accuracyAt 25 ° C (77 °F) ambient with module operating temperature at 25 °C (77 °F)
Typical overall accuracy±0.5 °C (°F) for Pt 385
Update timeInput filter and configuration dependent (typical)
VibrationOperating: 10...500 Hz, 5 G, 0.030 in @ maximum peak-to-peak
Width40 mm

1762-IR4: frequently asked questions

When can 1762-IR4 be shipped?

1762-IR4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1762-IR4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1762-IR4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1762-IR4, subject to availability and destination.
