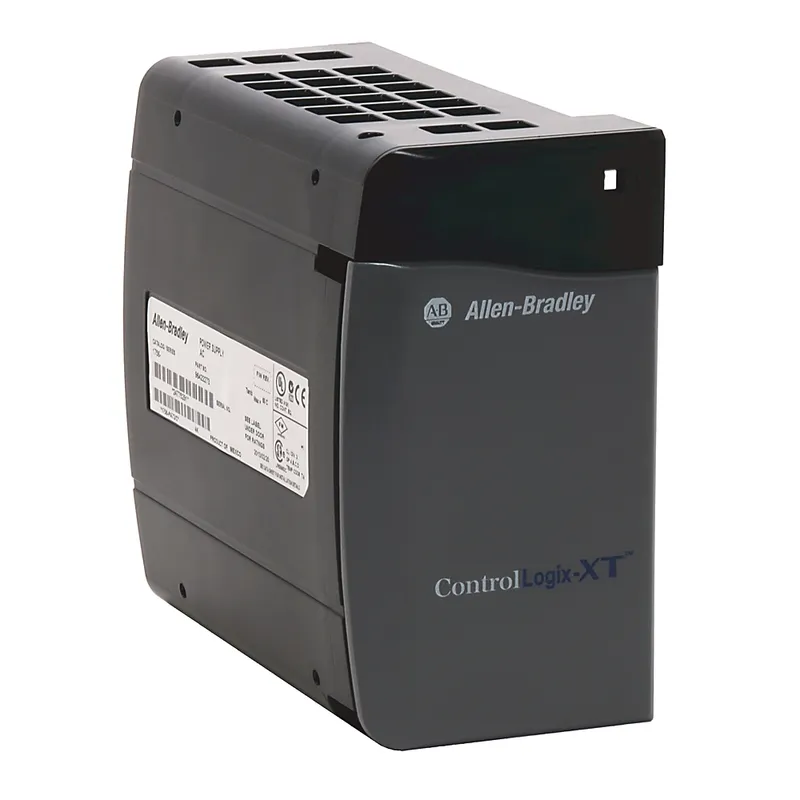

Allen-Bradley 1756-PA30XT

ControlLogix AC XT Power Supply

MPN
1756-PA30XT
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 1756-PA30XT?

Allen-Bradley 1756-PA30XT — ControlLogix AC XT Power Supply. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableYes

Specifications

Connection CablesNone required
Output Voltage and Current5V DC @ 6A, 3.3V DC @ 2A,
Redundant Configurationfalse
Conductor screw torque0.565 nm
Current capacity6A @ 5.1V DC
Depth145 mm
Enclosure type ratingNone (open-style)
Height140 mm
Input frequency47 Hz
Input power, max60VA/50 W
Input voltage at AC 50 Hz85 V
Input voltage at AC 60 Hz85 V
Input voltage, nom120/240V AC
Inrush current, max20 A
ISAGXfalse
Operating temperature-25 °C < Ta < +70 °C (-13 °F < Ta < +158 °F)
Output voltage at DC5.1 V
Power output30 W
Power output, max30 W @ -25...+70 °C (-13...+158 °F)
Redundancy capablefalse
Relative humidity5...95% noncondensing
Rockwell tire and rubber ratedfalse
ShockOperating: 30 G
Suitable for safety functionsfalse
Type of voltage (input voltage)AC
Vibration2 G @ 10...500 Hz
Voltage variationIEC 61000-4-11: 30% dips for 1 period at 0° and 180° on AC supply ports, 60% dips for 5 and 50 periods on AC supply ports, ±10% fluctuations for 15 min on AC supply ports, >95% interruptions for 250 periods on AC supply ports
Weight0.77 kg
Width78 mm
Wire category1 - on power ports
Wire size2.5 mm² (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F), or greater, 1.2 mm (3/64 in.) insulation max
Environmental Compliance<a href='https://www.rockwellautomation.com/en-us/company/product-environmental-compliance.html'>See Details</a> | <a href='#modal-submit-inquiry'>Submit Inquiry</a>
Product SeriesA

1756-PA30XT: frequently asked questions

When can 1756-PA30XT be shipped?

1756-PA30XT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1756-PA30XT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1756-PA30XT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1756-PA30XT, subject to availability and destination.
