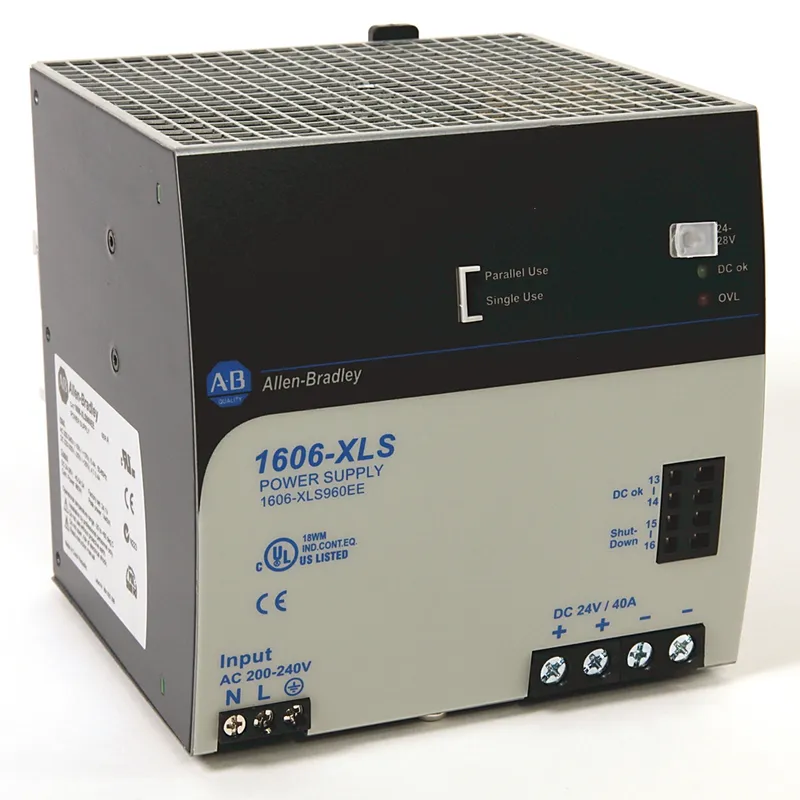

Allen-Bradley 1606-XLS960EE

XLS Power Supply 960W 24VDC 40A

MPN
1606-XLS960EE
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 1606-XLS960EE?

Allen-Bradley 1606-XLS960EE — XLS Power Supply 960W 24VDC 40A. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Input Circuit Protection10 A Slow Blow Fuse or Cat.
Input Voltage Range200-240V AC
Output Voltage Range24 -28V DC
DC OK relay contacttrue
Degree of protection (IP)IP20
Degree of protection (NEMA)Other
Depth127 mm
Derating24 w/°c
Direct mounting possiblefalse
Efficiency94.6% typical
External input fuse, minB-10 A or C-8 A
Height124 mm
Hold-up time32 ms
Input inrush current14 A
Input inrush current limiterActive
Input voltage200...240V @ AC, 47...63 Hz
Lifetime, min59 kh (+40 °C)
MTBF366 kh (40 °C, SN29500)
Nominal value output voltage 124 V
Non-operating temperature range-40 to 85 °C
Operating temperature-25 °C
Operational range170...264V AC
Output voltage24...28V DC
Output voltage stabilizedtrue
Power factor0.96 typical
Power losses54.8 W typical
Power output960 W
Rail mounting possibletrue
Rated input current4.6 A
Rated output current40A @ 24V DC
Reserve power (typ. 4 s)60A @ 24V DC
Ripple and noise, max100 mV
Secondary voltage adjustabletrue
Special featureClass 1, Div. 2, ABS/GL/RINA (marine)
Special functionsNo special function
Stabilizedtrue
Sub groupPerformance family
Type of electric connectionScrew connection
Voltage type of supply voltageAC/DC
Wall mounting possibletrue
Weight1800 g
Width125 mm

1606-XLS960EE: frequently asked questions

When can 1606-XLS960EE be shipped?

1606-XLS960EE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1606-XLS960EE in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1606-XLS960EE and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1606-XLS960EE, subject to availability and destination.
