Allen-Bradley 1606-XLS480E

XLS Power Supply 480W 24VDC 20A

MPN
1606-XLS480E
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

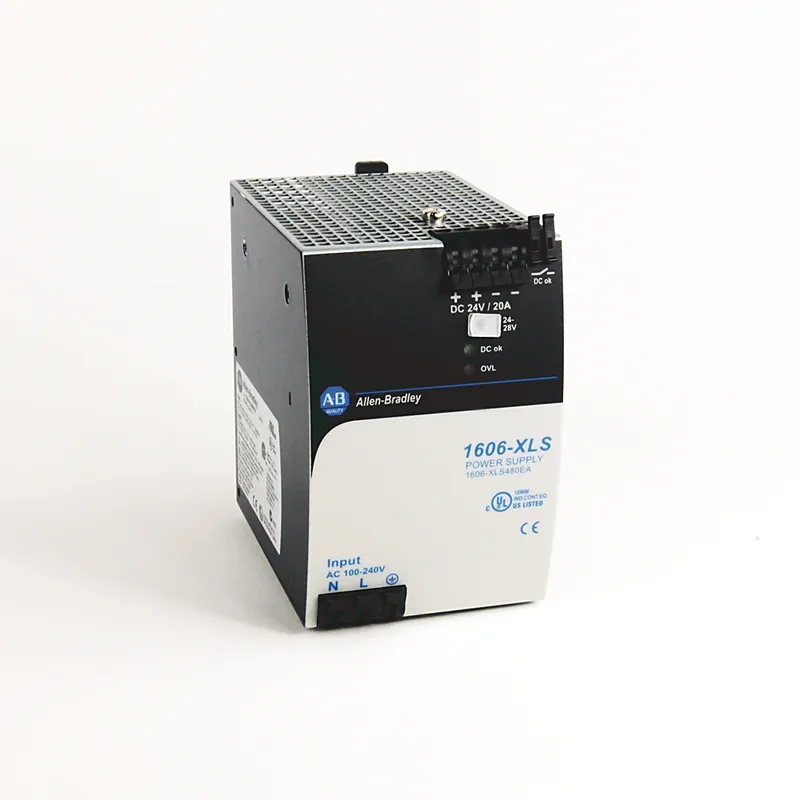

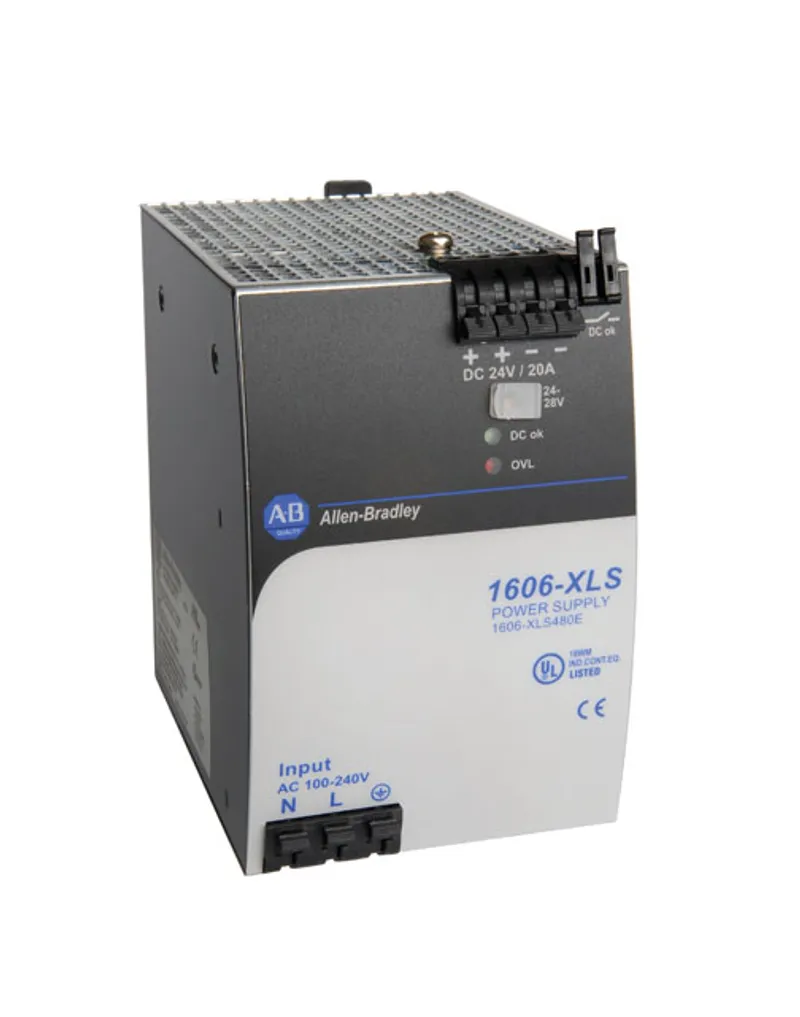

What is the Allen-Bradley 1606-XLS480E?

Allen-Bradley 1606-XLS480E — XLS Power Supply 480W 24VDC 20A. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Sub BrandPower Supply XLS
DC OK relay contacttrue
Degree of protection (IP)IP20
Degree of protection (NEMA)Other
Depth127 mm
Derating12 w/°c
Direct mounting possiblefalse
Efficiency94.5% typical
External input fuse, minB-10 A or C-10 A
Height124 mm
Hold-up time31 to 51 ms
Input inrush current9 A/7 A
Input inrush current limiterActive
Input voltage100...240V @ AC, 47...63 Hz
Lifetime, min71 kh (+40 °C)
MTBF469 kh (40 °C, SN29500)
Nominal value output voltage 124 V
Non-operating temperature range-25...+70 °C, >60 °C with derating
Operating temperature-25 °C
Operational range88...188V DC
Output voltage24...28V DC
Output voltage stabilizedtrue
Power factor0.90 typical
Power losses31.4 W typical
Power output480 W
Rail mounting possibletrue
Rated input current4.6A @ 100V AC
Rated output current20A @ 24V DC
Rated supply voltage at DC110 V
Reserve power (typ. 4 s)30A @ 24V DC
Ripple and noise, max100 mV
Secondary voltage adjustabletrue
Special featureABS/GL/RINA (marine)
Special functionsNo special function
Stabilizedtrue
Sub groupPerformance family
Type of electric connectionSpring clA connection
Voltage type of supply voltageAC/DC
Wall mounting possibletrue
Weight1200 g
Width82 mm

1606-XLS480E: frequently asked questions

When can 1606-XLS480E be shipped?

1606-XLS480E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1606-XLS480E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1606-XLS480E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1606-XLS480E, subject to availability and destination.
