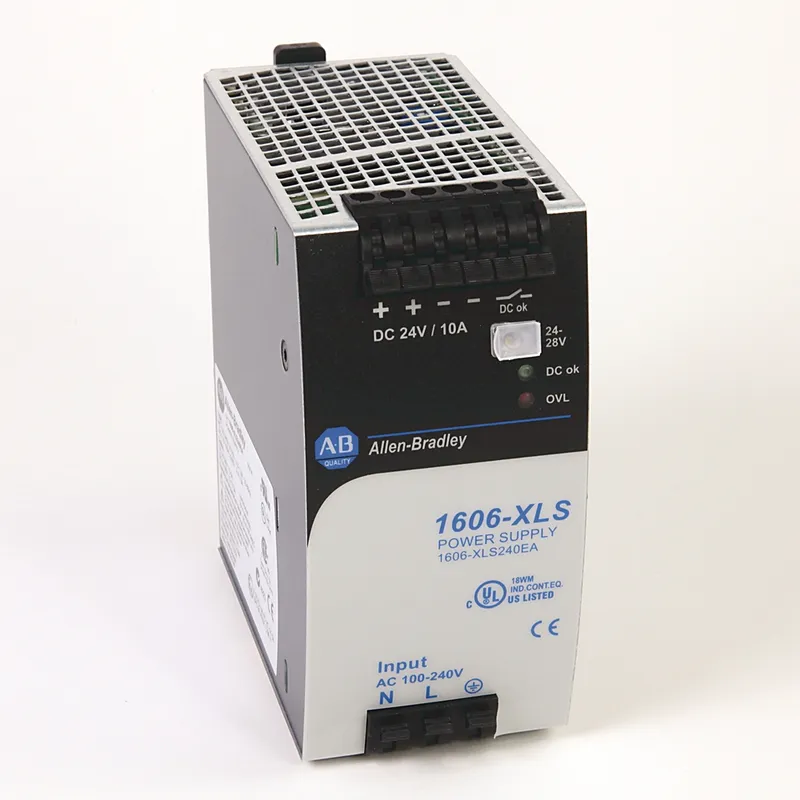

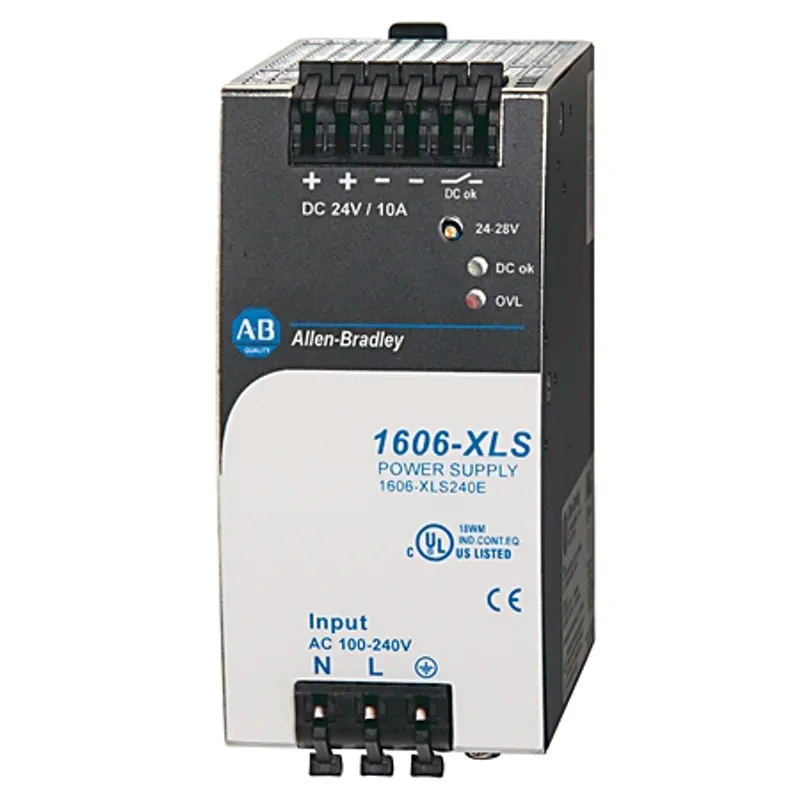

Allen-Bradley 1606-XLS240EC
XLS Power Supply 240W 24VDC 10A
- MPN
- 1606-XLS240EC
- Category
- 1606-XLS Performance
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 1606-XLS240EC?
Allen-Bradley 1606-XLS240EC — XLS Power Supply 240W 24VDC 10A. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Repair options available | No |
Specifications
| Sub Brand | Power Supply XLS |
| DC OK relay contact | true |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Depth | 117 mm |
| Derating | 6 w/°c |
| Direct mounting possible | false |
| Efficiency | 93.5% typical |
| External input fuse, min | B-6 A or C-4 A |
| Height | 124 mm |
| Hold-up time | 27 ms |
| Input inrush current | 4 A/7 A |
| Input inrush current limiter | Active |
| Input voltage | 100...240V @ AC, 47...63 Hz |
| Lifetime, min | 71 kh (+40 °C) |
| MTBF | 581 kh (40 °C, SN29500) |
| Nominal value output voltage 1 | 24 V |
| Non-operating temperature range | -40 to 85 °C |
| Operating temperature | -25 °C |
| Operational range | 88...188V DC |
| Output voltage | 24...28V DC |
| Output voltage stabilized | true |
| Power factor | 0.92 typical |
| Power losses | 16.7 W typical |
| Power output | 240 W |
| Rail mounting possible | true |
| Rated input current | 2.8A @ 100V AC |
| Rated output current | 9A @ 28V DC |
| Rated supply voltage at DC | 110 V |
| Reserve power (typ. 4 s) | 15A @ 24V DC |
| Ripple and noise, max | 50 mV |
| Secondary voltage adjustable | true |
| Special feature | Active PFC, Class 1 division 2, semi F47, 9) ABS/GL/RINA (marine) |
| Special functions | Conformal coat |
| Stabilized | true |
| Sub group | Performance family |
| Type of electric connection | Spring clA connection |
| Voltage type of supply voltage | AC/DC |
| Wall mounting possible | true |
| Weight | 900 g |
| Width | 60 mm |
No matching specifications
1606-XLS240EC: frequently asked questions
When can 1606-XLS240EC be shipped?
1606-XLS240EC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1606-XLS240EC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1606-XLS240EC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1606-XLS240EC, subject to availability and destination.
