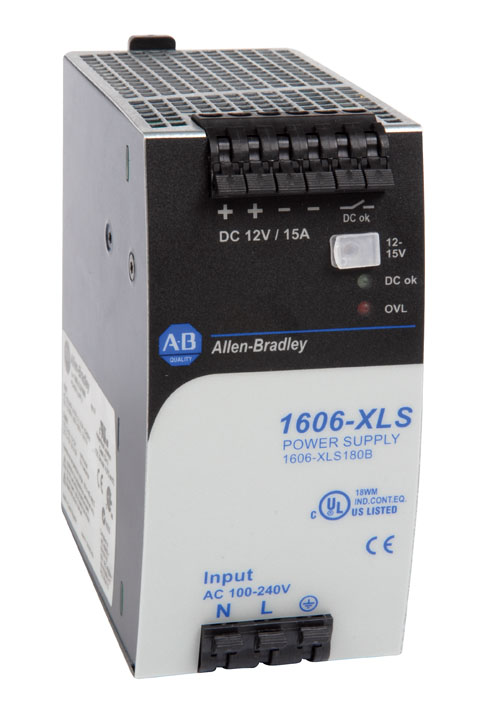

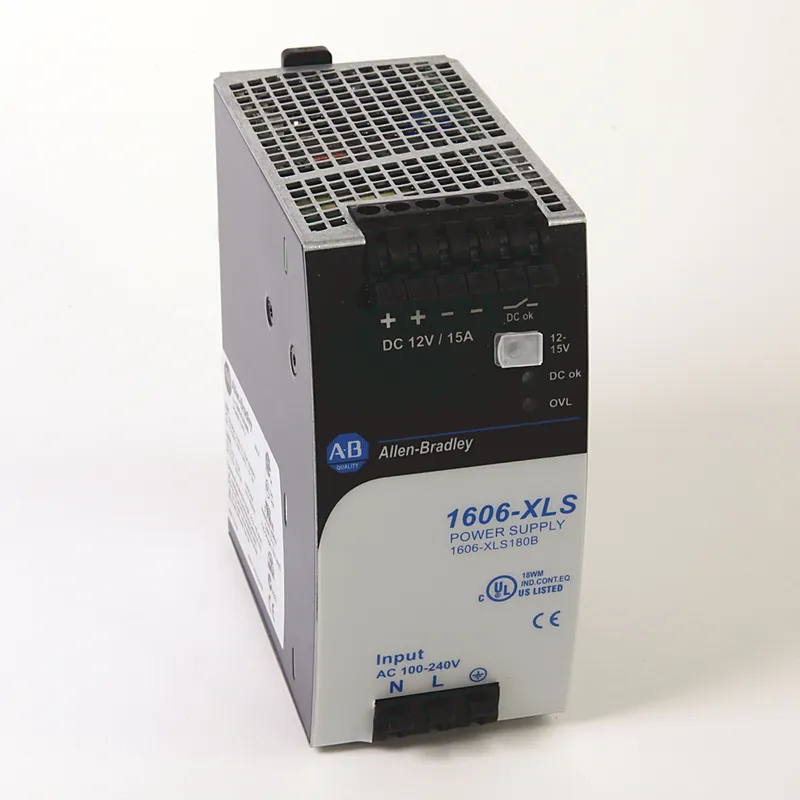

Allen-Bradley 1606-XLS180B

XLS Power Supply 180W 12VDC 15A

MPN
1606-XLS180B
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 1606-XLS180B?

Allen-Bradley 1606-XLS180B — XLS Power Supply 180W 12VDC 15A. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Input Circuit Protection6 A Slow Blow Fuse or Cat. No. 1489-A1C060
Input Voltage Range100-240V AC/110-150V DC
Output Voltage Range12 -15V DC
DC OK relay contacttrue
Degree of protection (IP)IP20
Degree of protection (NEMA)Other
Depth117 mm
Derating5 w/°c
Direct mounting possiblefalse
Efficiency91.8% typical
External input fuse, minB-6 A or C-4 A
Height124 mm
Hold-up time32 ms
Input inrush current4 A/7 A
Input inrush current limiterActive
Input voltage100...240V @ AC, 47...63 Hz
Lifetime, min76 kh (+40 °C)
MTBF631 kh (40 °C, SN29500)
Nominal value output voltage 112 V
Non-operating temperature range-40 to 85 °C
Operating temperature-25 °C
Operational range88...188V DC
Output voltage12...15V DC
Output voltage stabilizedtrue
Power factor0.92 typical
Power losses16.1 W typical
Power output180 W
Rail mounting possibletrue
Rated input current1.65A @ 120V AC
Rated output current15A @ 12V DC
Rated supply voltage at DC110 V
Reserve power (typ. 4 s)22.5A @ 12V DC
Ripple and noise, max50 mV
Secondary voltage adjustabletrue
Special featureActive PFC, Class 1 division 2, semi F47, 9) ABS/GL/RINA (marine)
Special functionsNo special function
Stabilizedtrue
Sub groupPerformance family
Type of electric connectionSpring clA connection
Voltage type of supply voltageAC/DC
Wall mounting possibletrue
Weight930 g
Width60 mm

1606-XLS180B: frequently asked questions

When can 1606-XLS180B be shipped?

1606-XLS180B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1606-XLS180B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1606-XLS180B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1606-XLS180B, subject to availability and destination.
