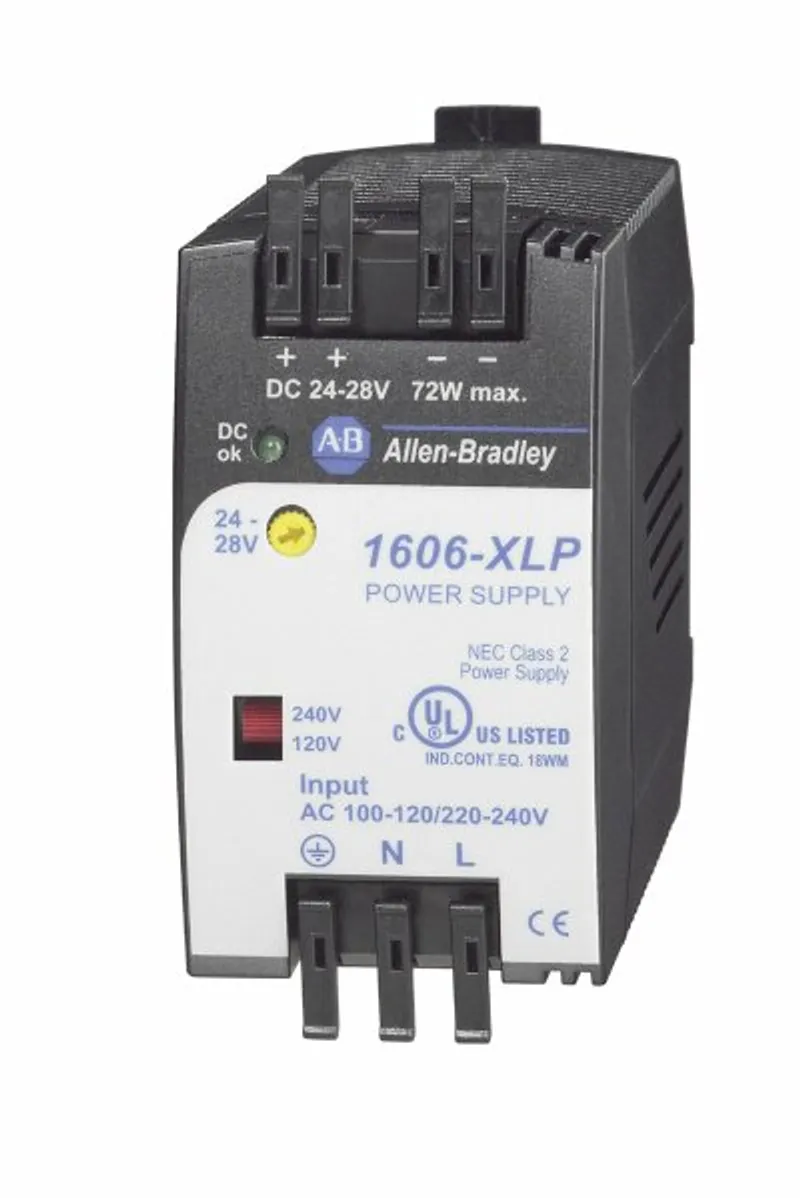

Allen-Bradley 1606-XLP72E
XLP Power Supply 72W 24VDC 3A
- MPN
- 1606-XLP72E
- Category
- 1606-XLE Essential
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 1606-XLP72E?
Allen-Bradley 1606-XLP72E — XLP Power Supply 72W 24VDC 3A. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Repair options available | No |
Specifications
| Sub Brand | Power Supply XLP |
| Adjustment range | 24 V |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Depth | 91 mm |
| Direct mounting possible | false |
| Efficiency, typ | 89 % |
| Height | 75 mm |
| Hold-up time | >40 ms @ 230V AC |
| Input voltage | Manual select: 100...120V/220...240V AC |
| MTBF | 600000 hr @ 40 °C, SN 29500 |
| Operating temperature | -10 °C |
| Operational range | 85...132V AC |
| Output voltage stabilized | true |
| Phases | 1-phase |
| Power output | 72 W |
| Rail mounting possible | true |
| Rated input current | <1.6A @ 100V AC |
| Rated output current | 3A @ 24V |
| Rated supply voltage at DC | 220 V |
| Relative humidity | 5 to 95 % |
| Ripple and noise, max | 50 mV |
| Secondary voltage adjustable | true |
| Shock | 30 G, 6 ms 20G, 11 ms |
| Special family function | No power boost |
| Special feature | - |
| Special functions | No special function |
| Stabilized | true |
| Storage temperature | -40 °C |
| Sub group | Compact family |
| Type of electric connection | Spring ClA connection |
| Vibration | 2 g |
| Voltage type of supply voltage | AC/DC |
| Wall mounting possible | true |
| Weight | 260 g |
| Width | 45 mm |
No matching specifications
1606-XLP72E: frequently asked questions
When can 1606-XLP72E be shipped?
1606-XLP72E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1606-XLP72E in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1606-XLP72E and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1606-XLP72E, subject to availability and destination.
