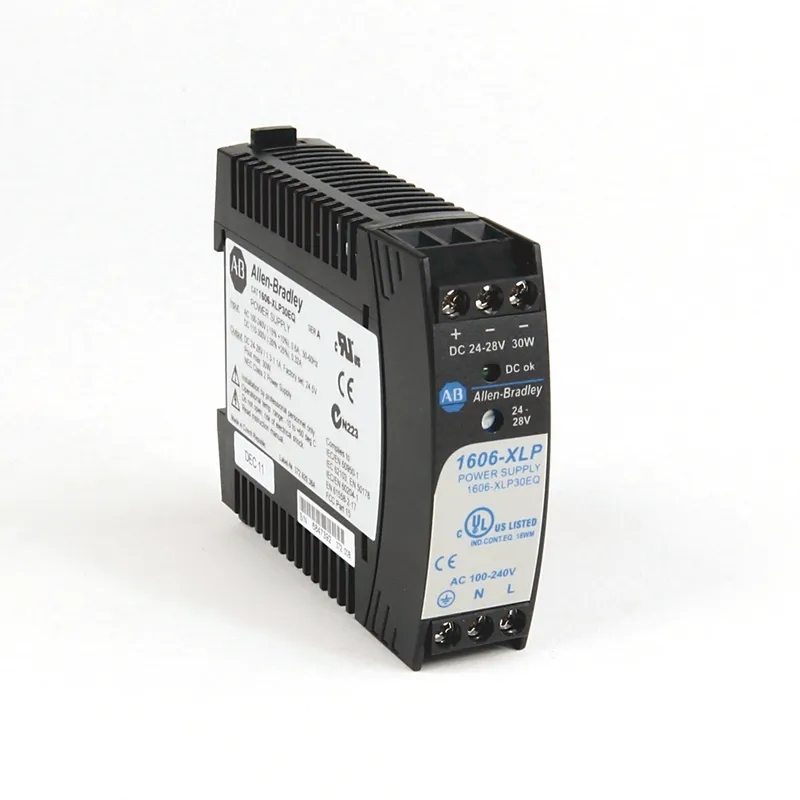

Allen-Bradley 1606-XLP30EQ
XLP Power Supply 30W 24VDC 1A
- MPN
- 1606-XLP30EQ
- Category
- 1606-XLE Essential
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 1606-XLP30EQ?
Allen-Bradley 1606-XLP30EQ — XLP Power Supply 30W 24VDC 1A. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Repair options available | No |
Specifications
| Input Circuit Protection | 10 A Slow Blow Fuse or Cat. |
| Input Voltage Range | 100-240V AC/110-300V DC |
| Output Voltage Range | 24 -28V DC |
| Adjustment range | 24 V |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Depth | 91 mm |
| Direct mounting possible | false |
| Efficiency, typ | 89.4 % |
| Height | 75 mm |
| Hold-up time | >31 ms @ 100V AC |
| Input voltage | 100…240V AC |
| MTBF | 2405000 hr @ 40 °C, SN 29500 |
| Operating temperature | -10 °C |
| Operational range | 85...264V AC |
| Output voltage stabilized | true |
| Phases | 1-phase |
| Power output | 30 W |
| Rail mounting possible | true |
| Rated input current | <0.54A @ 100V AC |
| Rated output current | 1.3A @ 24V |
| Rated supply voltage at DC | 85 V |
| Relative humidity | 5 to 95 % |
| Ripple and noise, max | 50 mV |
| Secondary voltage adjustable | true |
| Shock | 30 G, 6 ms 20G, 11 ms |
| Special family function | No power boost |
| Special feature | - |
| Special functions | No special function |
| Stabilized | true |
| Storage temperature | -40 °C |
| Sub group | Compact family |
| Type of electric connection | Screw connection |
| Vibration | 2 g |
| Voltage type of supply voltage | AC/DC |
| Wall mounting possible | true |
| Weight | 140 g |
| Width | 22.5 mm |
No matching specifications
1606-XLP30EQ: frequently asked questions
When can 1606-XLP30EQ be shipped?
1606-XLP30EQ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1606-XLP30EQ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1606-XLP30EQ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1606-XLP30EQ, subject to availability and destination.
