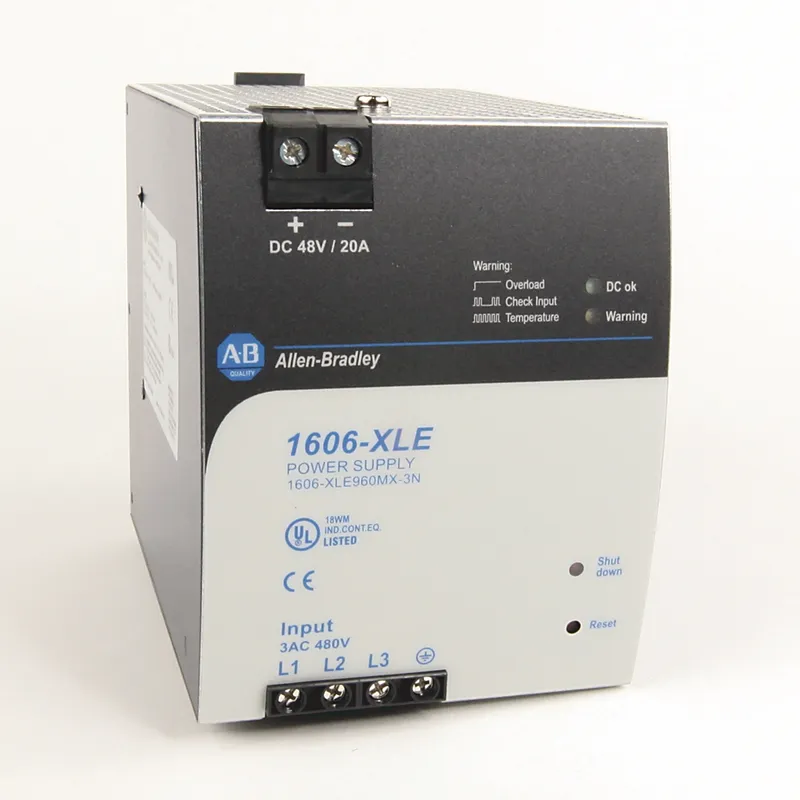

Allen-Bradley 1606-XLE960MX-3N
480VAC Input 48VDC Out 20A Power Supply
- MPN
- 1606-XLE960MX-3N
- Category
- 1606-XLE Essential
Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1606-XLE960MX-3N (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 1606-XLE960MX-3N?
Allen-Bradley 1606-XLE960MX-3N — 480VAC Input 48VDC Out 20A Power Supply. Rockwell lifecycle status: end of life. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | End of life |
| Discontinued date | December 31, 2026 |
| Replacement category (Rockwell) | Engineering Replacement |
| Repair options available | No |
Specifications
| Input Circuit Protection | 6 A Slow Blow Fuse or Cat. No.,1489-A3C060 |
| Input Voltage Range | 408-552V AC |
| Output Voltage Range | 48V DC |
| 1st secondary output voltage | 48 V |
| Degree of protection (IP) | IP20 |
| Depth | 159 mm |
| Derating | 24 W/°C |
| Direct mounting possible | false |
| Efficiency | 96 % typical |
| External input fuse, min | B-6 A or C-3 A |
| Height | 124 mm |
| Input inrush current | 2 A |
| Input inrush current limiter | Active |
| Lifetime, min | 77 kh (+40 °C) |
| Max. output current 1 | 20 A |
| MTBF | 541 kh (+40 °C, SN29500) |
| Nominal value output current 1 | 20 A |
| Nominal value output voltage 1 | 48 V |
| Operating temperature | -25 °C |
| Output current range | 20 A |
| Output voltage stabilized | true |
| Power factor | 0.93 typical |
| Power losses | 40 W typical |
| Power output | 960 W |
| Power reserves | 25 % |
| Rail mounting possible | true |
| Rated supply voltage at AC 50 Hz | 400 V |
| Rated supply voltage at AC 60 Hz | 400 V |
| Ripple and noise, max | 2500 mV |
| Secondary voltage adjustable | true |
| Special feature | Semi-regulated |
| Stabilized | true |
| Type of electric connection | Screw connection |
| Voltage type of supply voltage | AC |
| Wall mounting possible | true |
| Weight | 1400 g |
| Width | 96 mm |
No matching specifications
1606-XLE960MX-3N: frequently asked questions
Can I still buy the 1606-XLE960MX-3N now that it is discontinued?
Yes. Rockwell Automation / Allen-Bradley has discontinued the 1606-XLE960MX-3N, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 1606-XLE960MX-3N be shipped?
1606-XLE960MX-3N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1606-XLE960MX-3N in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1606-XLE960MX-3N and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1606-XLE960MX-3N, subject to availability and destination.
