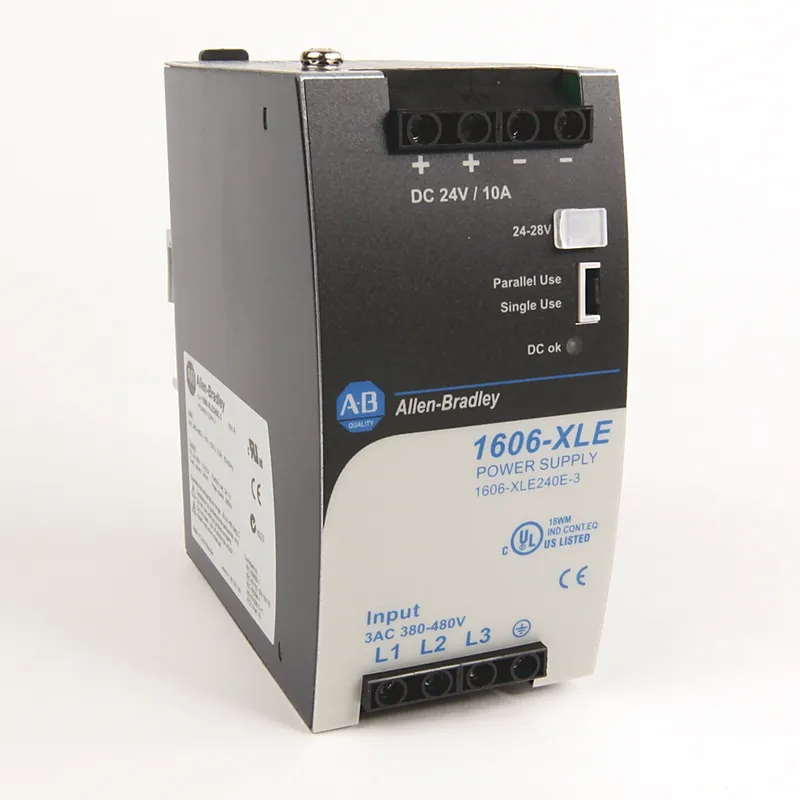

Allen-Bradley 1606-XLE240E-3
480VAC Input 24VDC Out 10A Power Supply
- MPN
- 1606-XLE240E-3
- Category
- 1606-XLS Performance
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 1606-XLE240E-3?
Allen-Bradley 1606-XLE240E-3 — 480VAC Input 24VDC Out 10A Power Supply. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Repair options available | No |
Specifications
| Efficiency | 0.92 |
| Input Circuit Protection | 6 A Slow Blow Fuse or Cat. No.,1489-A3C060 |
| Input Voltage Range | 380-480V AC |
| Output Voltage Range | 24 -28V DC |
| 1st secondary output voltage | 24 V |
| Degree of protection (IP) | IP20 |
| Depth | 117 mm |
| Derating | 6 W/°C |
| Direct mounting possible | false |
| Efficiency | 92.8 % typical |
| External input fuse, min | B-6 A or C-3 A |
| Height | 124 mm |
| Input inrush current | 4 A/4 A |
| Input inrush current limiter | Active |
| Lifetime, min | 54 kh (+40 °C) |
| Max. output current 1 | 10 A |
| MTBF | 975 kh (+40 °C, SN29500) |
| Nominal value output current 1 | 10 A |
| Nominal value output voltage 1 | 24 V |
| Operating temperature | -25 °C |
| Output current range | 10 to 8.6 A |
| Output voltage stabilized | true |
| Power factor | 0.53 typical |
| Power losses | 18.6 W typical |
| Power output | 240 W |
| Power reserves | 20 % |
| Rail mounting possible | true |
| Rated supply voltage at AC 50 Hz | 380 V |
| Rated supply voltage at AC 60 Hz | 380 V |
| Ripple and noise, max | 50 mV |
| Secondary voltage adjustable | true |
| Stabilized | true |
| Type of electric connection | Screw connection |
| Voltage type of supply voltage | AC |
| Wall mounting possible | true |
| Weight | 750 g |
| Width | 62 mm |
No matching specifications
1606-XLE240E-3: frequently asked questions
When can 1606-XLE240E-3 be shipped?
1606-XLE240E-3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1606-XLE240E-3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1606-XLE240E-3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1606-XLE240E-3, subject to availability and destination.
