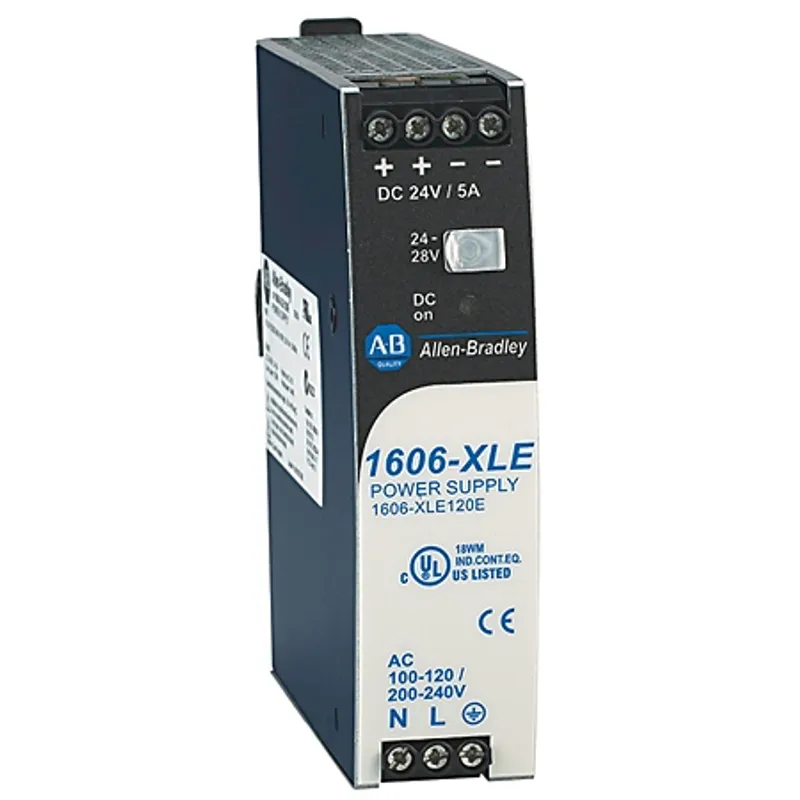

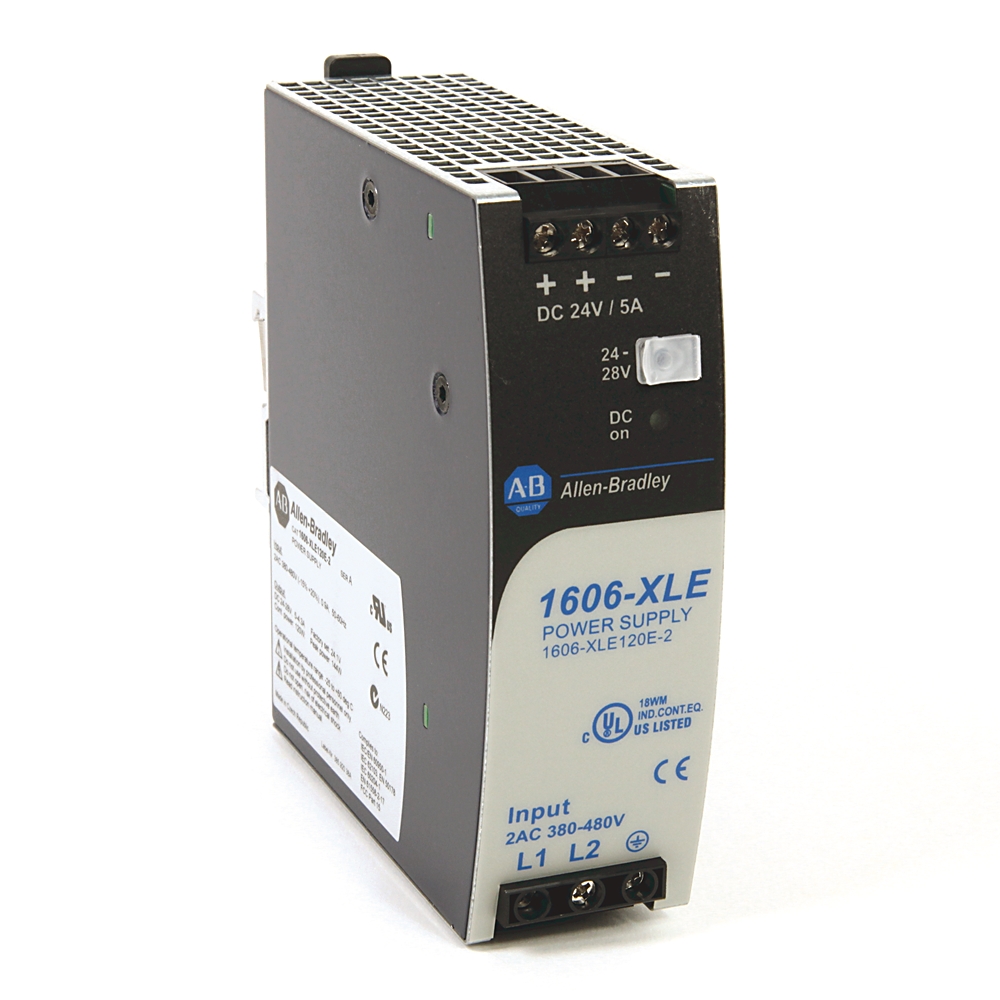

Allen-Bradley 1606-XLE120EE
Power Supply XLE 120 W Power Supply
- MPN
- 1606-XLE120EE
- Category
- 1606-XLS Performance
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 1606-XLE120EE?
Allen-Bradley 1606-XLE120EE — Power Supply XLE 120 W Power Supply. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Repair options available | No |
Specifications
| Sub Brand | Power Supply XLE |
| 1st secondary output voltage | 24 V |
| Adjustment range | 24 V |
| Degree of protection (IP) | IP20 |
| Depth | 117 mm |
| Derating | 3 w/°c |
| Direct mounting possible | false |
| Efficiency | 90.2% typical |
| External input fuse, min | B-16 A or C-10 A |
| Height | 124 mm |
| Hold-up time | >80 ms @ 120V |
| Input inrush current | 30 A |
| Input inrush current limiter | NTC |
| Lifetime, min | 72 kh (+40 °C) |
| Max. output current 1 | 5 A |
| MTBF | 940 kh (40 °C, SN29500) |
| Nominal value output current 1 | 5 A |
| Nominal value output voltage 1 | 24 V |
| Operating temperature | -10 °C |
| Operational range | 180…264V AC |
| Output voltage stabilized | true |
| Power factor | 0.5 typical |
| Power losses | 13.2 W typical |
| Power output | 120 W |
| Power reserves | 20 % |
| Rail mounting possible | true |
| Rated input current | 2.6 A |
| Rated output current | 5A @ 24V |
| Rated supply voltage at AC 50 Hz | 200 V |
| Rated supply voltage at AC 60 Hz | 200 V |
| Relative humidity | 5 to 95 % |
| Ripple and noise, max | 50 mV |
| Secondary voltage adjustable | true |
| Shock | 30 G, 6ms 20 G, 11ms |
| Special family function | Dynamic 120% power boost under 45C Degree |
| Stabilized | true |
| Storage temperature | -25 °C |
| Sub group | Essential line |
| Type of electric connection | Screw connection |
| Vibration | 2 g |
| Voltage type of supply voltage | AC |
| Wall mounting possible | true |
| Weight | 500 g |
| Width | 32 mm |
No matching specifications
1606-XLE120EE: frequently asked questions
When can 1606-XLE120EE be shipped?
1606-XLE120EE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1606-XLE120EE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1606-XLE120EE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1606-XLE120EE, subject to availability and destination.
