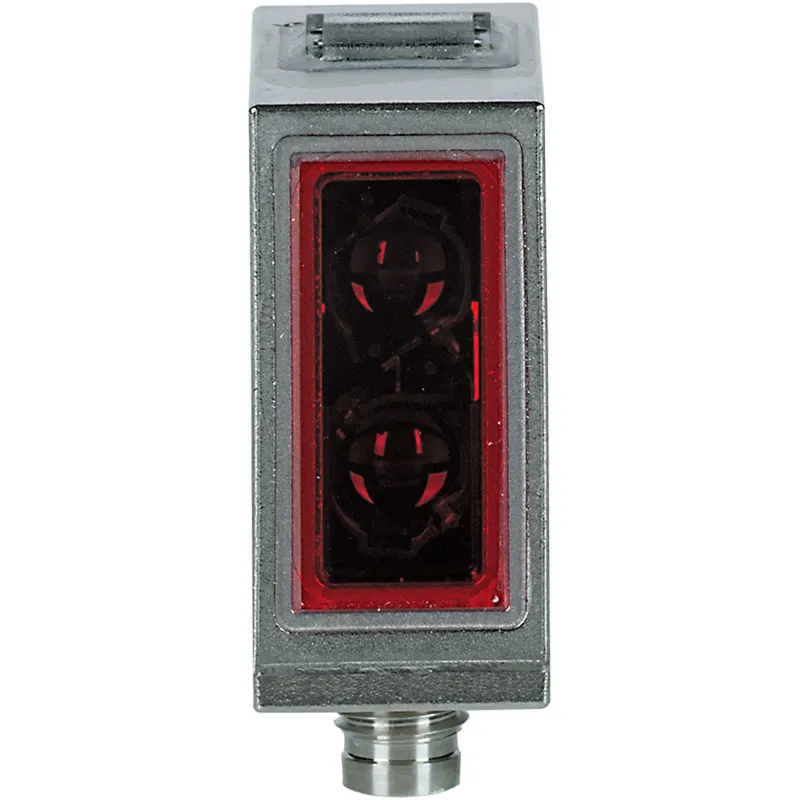

Pilz Z9000058 – O300W.GP.2-11723089
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Safety Technology |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.042 kg |
| UPC / EAN | 4046548108408 |
Shipping & availability
When can Z9000058 be shipped?
Z9000058 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Z9000058 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Z9000058 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Z9000058, subject to availability and destination.
Retroreflective photoelectric sensor with background suppression,sensing distance 30 - 100 mm, 4-pin M8 male connector, semiconductor output (positive-switching), stainless steel housing, washdown design
Specifications
General data
| Product ID (Pilz order number) | Z9000058 |
| Approval | CE, UL/cUL, UKCA, ECOLAB |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 10, 33 |
| Type of supply voltage U1 | DC |
Environmental data
| Ambient temperature | -25 … 60 °C |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 60947-5-2 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 50g |
| Protection type standard | EN 60529 |
| Protection type, housing | IP68/69 & proTect+ |
Times
| Reaction time | 0, 2.4 |
Mechanical data
| Connection type | M8, 4-pin male |
| Material front screen | PMMA |
| Height dimension | 34.7 mm |
| Width dimension | 16.5 mm |
| Depth dimension | 28.2 mm |
| Net weight | 42 g |
| Gross weight | 64 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272702 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002717 |
| GTIN | 4046548108408 |
| Volume | 0.142 dm3 |
| Harmonized System Code | 85365019 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet Diffuse sensor | PDF · 1.4 MB |
| Operating Manual Diffuse Sensor | PDF · 2.3 MB |
| Solution Description Cardboard Feed | PDF · 1.3 MB |
CAD & dimension drawings
| CAD 2D drawing (DXF Autodesk Drawing Interchange Format) | ZIP · 0.1 MB |
| CAD 2D drawing (Portable Document Format (Adobe Acrobat)) | PDF · 0.1 MB |
| CAD 3D model (IGES - Initial Graphics Exchange Spec.) | ZIP · 0.1 MB |
| CAD 3D model (STEP - Product Model Data) | ZIP · 0.1 MB |
| Electrical CAD Data: EPLAN P8 Macro | EDZ · 2.9 MB |
| MP4 Video Cardboard feeder | MP4 · 33.2 MB |
Certificates (5)
| Attestation (ECOLAB) Materialbeständigkeit P3-Topas | PDF · 0.9 MB |
| Certificate (UL) E217825 | PDF · 0.2 MB |
| Attestation (TÜV) PO97921C | PDF · 0.7 MB |
| EU/EC-Declaration of Conformity (Konformitätserklärung) | PDF · 0.2 MB |
| UK Declaration of Conformity (UKCA) | PDF · 0.2 MB |
