Pilz G9000006
PES sensor board enable-motor en
- MPN
- G9000006
- EAN
- 4046548094183
- Category
- PES - Sensor Board
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

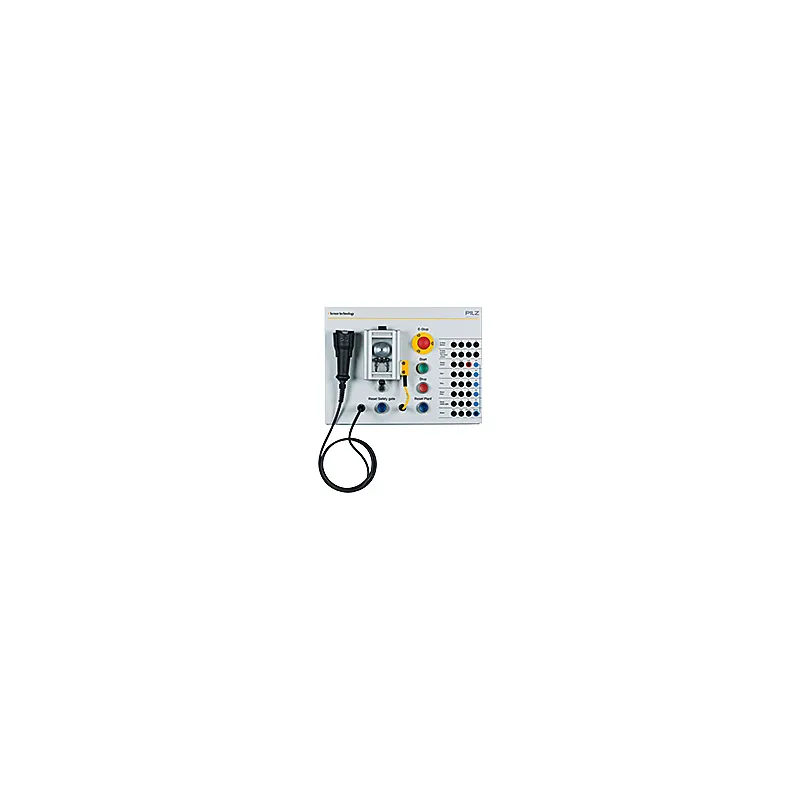

What is the Pilz G9000006?
Pilz Education System, modular training system, operator terminal sensor technology III, with PITestop, PSENcode and PITjog, withproximity switches for speed monitoring of the DC motor, terminal labelling in English, accompanying documents in English and German.
Specifications
General data
| Product ID (Pilz order number) | G9000006 |
| Approval | CE |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 V |
| Type of supply voltage U1 | DC |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 … 60 °C |
| Storage temperature standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 61131-2 |
| Protection type, housing | IP20 |
Mechanical data
| Height dimension | 399 mm |
| Width dimension | 297 mm |
| Depth dimension | 200 mm |
| Net weight | 2600 g |
| Gross weight | 3100 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27273890 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC002584 |
| UNSPSC 25 | 46211501 |
| GTIN | 4046548094183 |
| Volume | 53.596 dm3 |
| Harmonized System Code | 90230080 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Certificates (1)
G9000006: frequently asked questions
When can G9000006 be shipped?
G9000006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up G9000006 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for G9000006 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for G9000006, subject to availability and destination.
