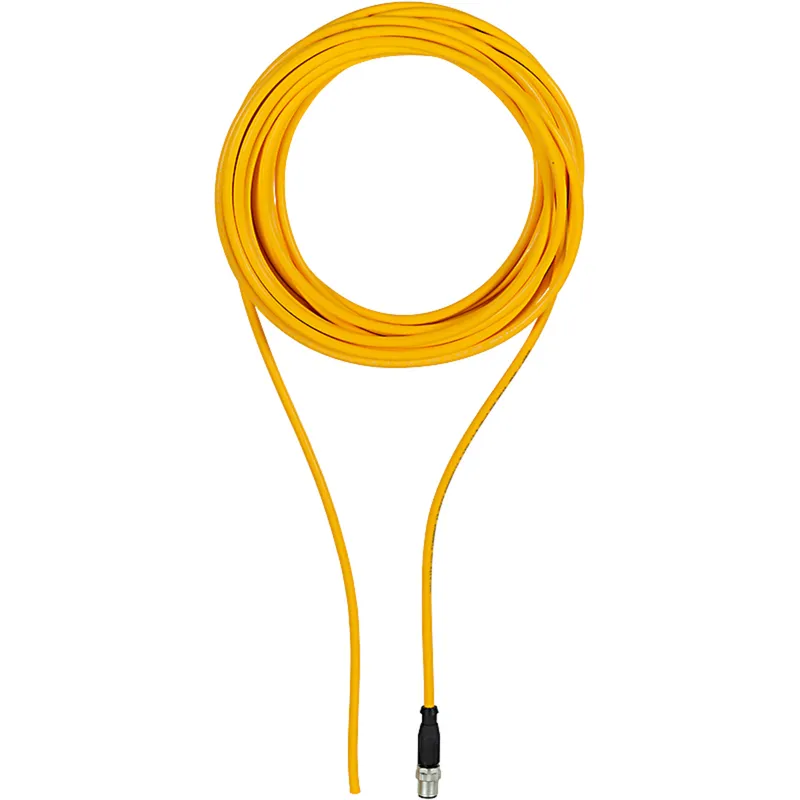

Pilz C1000070
Cable/XX/M12-12SM/XXX-XXXX/A/020/0Q25/XX
- MPN
- C1000070
- Category
- Pre-assembled cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz C1000070?
Connection cable, 12-pin M12 male connector, straight, A-coded, 12 x0.25 mm², 20 m
Specifications
General data
| Product ID (Pilz order number) | C1000070 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 1.5 |
| Typ. conductor resistance K1 | Max. 84 Ohm/km at 20 °C |
Environmental data
| Ambient temperature | -50 … 80 °C |
| Clearance & creepage dist. to | IEC 60664-1 |
| Pollution degree clear.&creep. | 2 |
Mechanical data
| Connector type 1 | 12-pin M12 male connector |
| Shape of connector type 1 | straight |
| Coding of M12 connector 1 | A coded |
| Matl threaded ring conn 1 | GD-Zn, Ni |
| Contact surfaces material 1 | CuZn, Ni b/Au 0.2 gal. |
| Cable material K1 | Cu |
| Insulation material cable K1 | PP (9Y) |
| Cable type K1 | Li9Y11Y |
| Length cable | 20 |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Housing colour | Black |
| Material of cable insulation 1 | TPU / TPE-U |
| Trailing capability of cable 1 | no |
| Bend radius (when laying) K1 | 6 x Ø |
| Max. outside diameter cable K1 | 5.9 |
| Conductor cross section | 0.25 |
| Cable cross section AWG K1 | 24 |
| Shielding K1 | no |
| Number of conductors | 12 |
| Approvals for cable K1 | UL AWM-Style 20233/11558 |
| Approvals for connector 1 | UL 94 |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | UL Cable Flame, FT1, DIN EN 60332-1-2 (60 sec.) |
| Torque interlocking screw | 0.6 Nm |
| Net weight | 841 g |
| Gross weight | 851 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060311 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001855 |
| UNSPSC 25 | 26121603 |
