Pilz A1000002
IndustrialPI 4 4GB 32GB
- MPN
- A1000002
- EAN
- 4046548109405
- Category
- IndustrialPI - Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

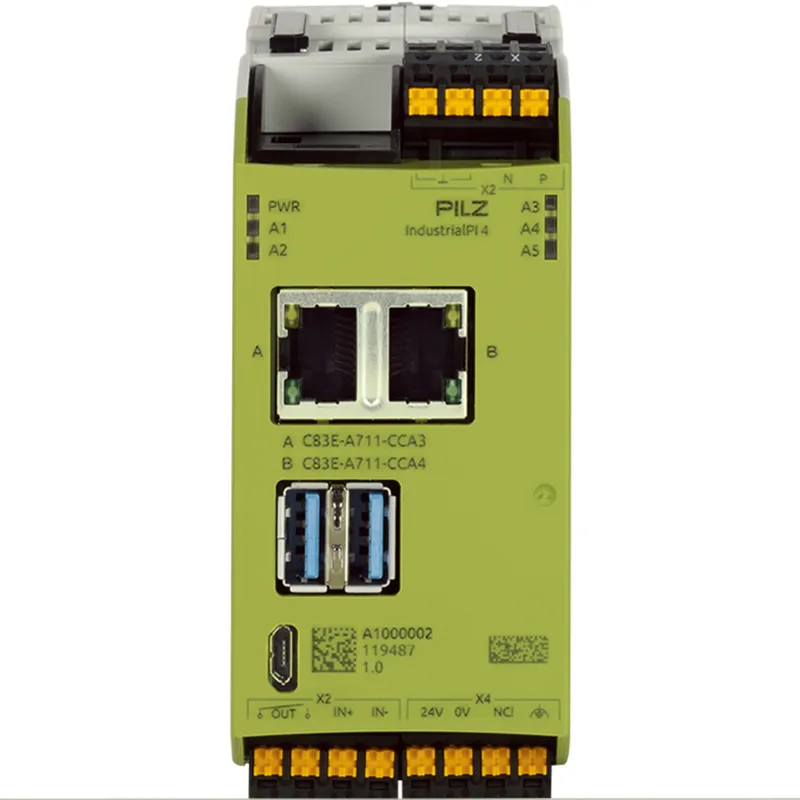

What is the Pilz A1000002?
IndustrialPI 4 for automation and IIOT tasks, based on the Raspberry Pi Computer Module 4, Quad core Cortex-A72 with 1.5 GHz, 4 GB RAM and 32 GB eMMC Flash memory, interfaces: 2 x USB 3.2 Gen 1 Type A, 2x RJ45 GBit Ethernet, 1 x RS485, 1 x Micro USB socket, 1 x Micro HDMI 2.0a (4K), 2 x PiBridge, operating system: adapted version of the Raspberry Pi OS with real-time patch with pre-installed OpenSource Node-RED software.
Specifications
General data
| Product ID (Pilz order number) | A1000002 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Inputs
| Number of digital inputs | 1 |
Environmental data
| Ambient temperature | -25 … 55 °C |
| Protection type, housing | IP20 |
Mechanical data
| Housing material | PC |
| Height dimension | 96 mm |
| Width dimension | 45 mm |
| Depth dimension | 110.5 mm |
| Net weight | 270 g |
| Gross weight | 276 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 19200102 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001413 |
| GTIN | 4046548109405 |
| Volume | 0.500 dm3 |
| Quantity per packaging unit | 1 |
